Showroom 2DOF project motor 250w 75rpm

Discussion in 'DIY Motion Simulator Projects' started by Carl, Nov 7, 2023.

  1. Carl

    Carl New Member Gold Contributor

    Joined:
    Oct 29, 2023
    Messages:
    23
    Location:
    Paris 75018
    Balance:
    79Coins
    Ratings:
    +12 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    Hello everyone,
    I'm creating this discussion thread to show you the progress of my project.

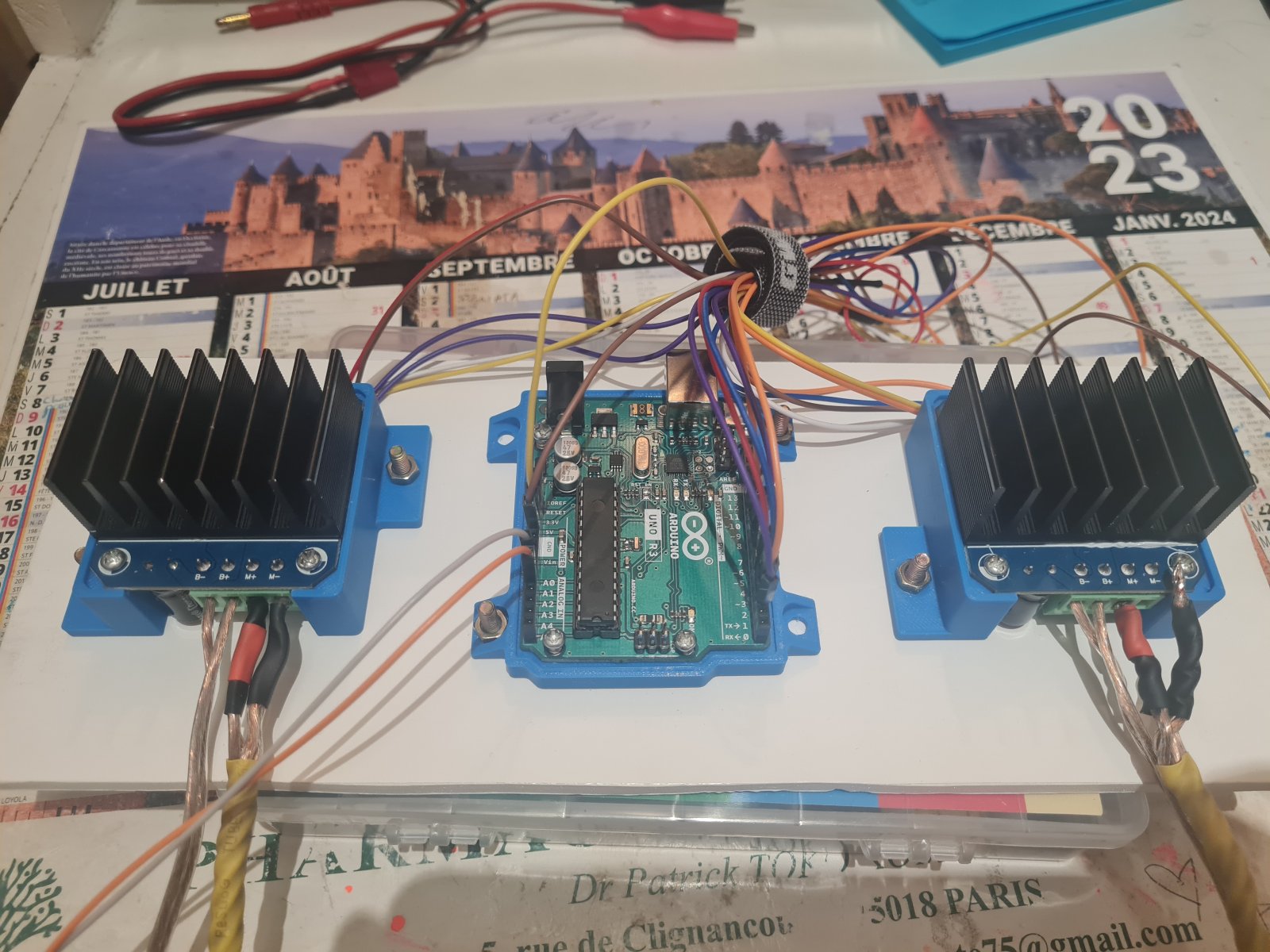

    first wiring of the arduino uno and the 2 BTS7960 modules

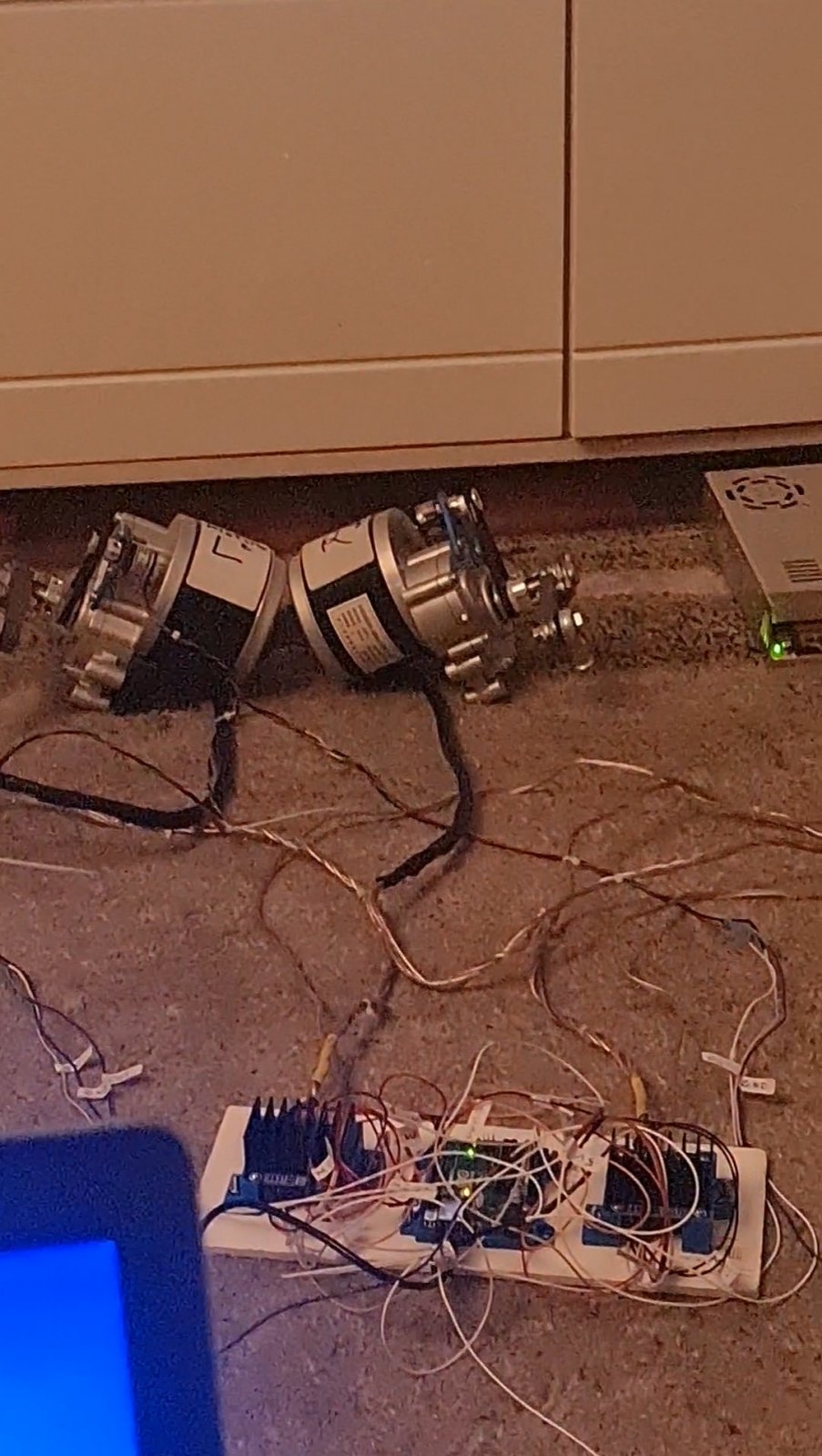

    the first engine test with SMC3
    For information I based myself on the settings of SCK gaming :grin
    The project progresses gradually when I receive my ordered parts,
    I will keep you informed for the rest:cheers
    • Like Like x 2
    Carl, Nov 7, 2023
    #1
  2. Carl

    Carl New Member Gold Contributor

    Joined:
    Oct 29, 2023
    Messages:
    23
    Location:
    Paris 75018
    Balance:
    79Coins
    Ratings:
    +12 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino

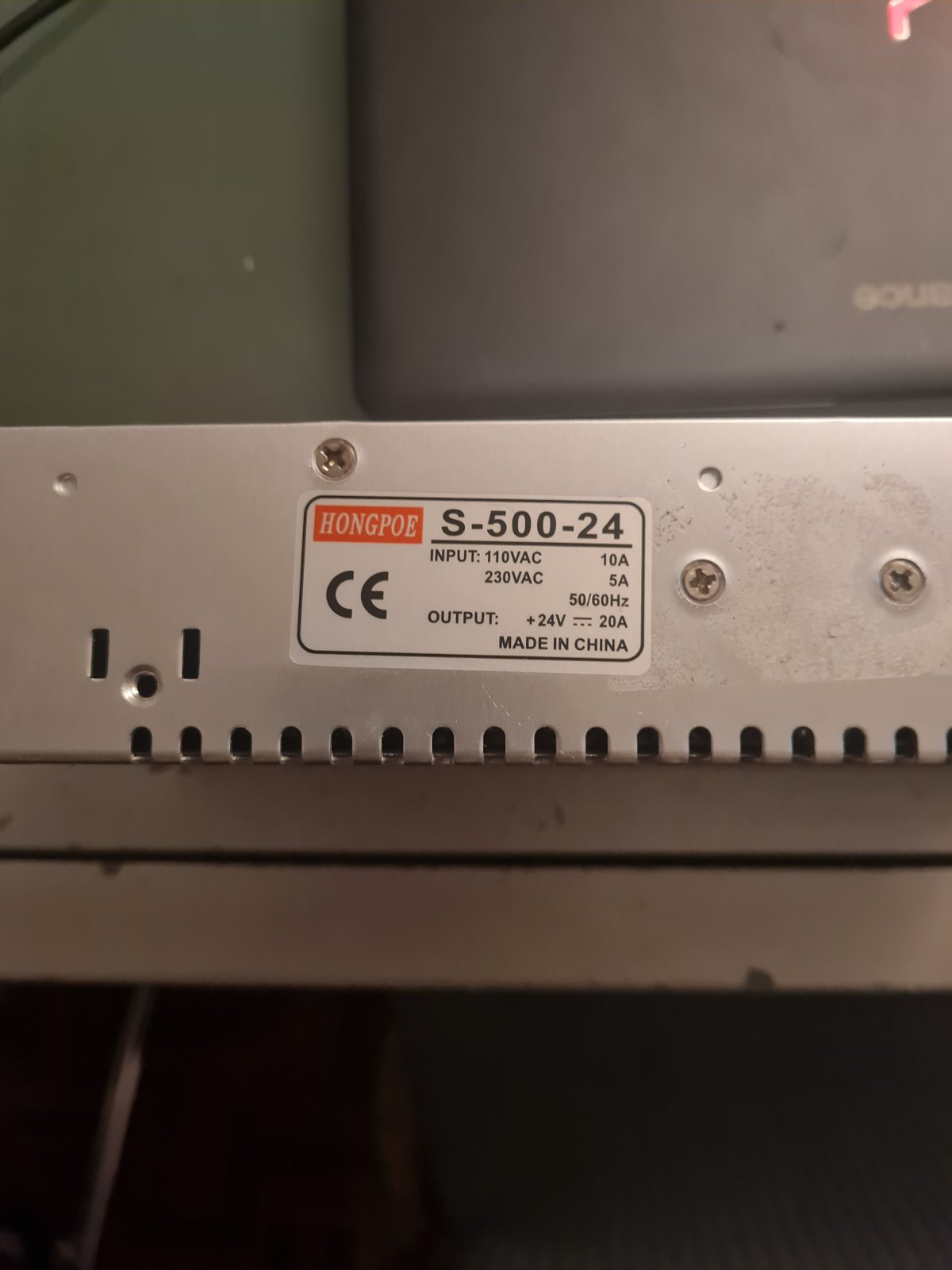

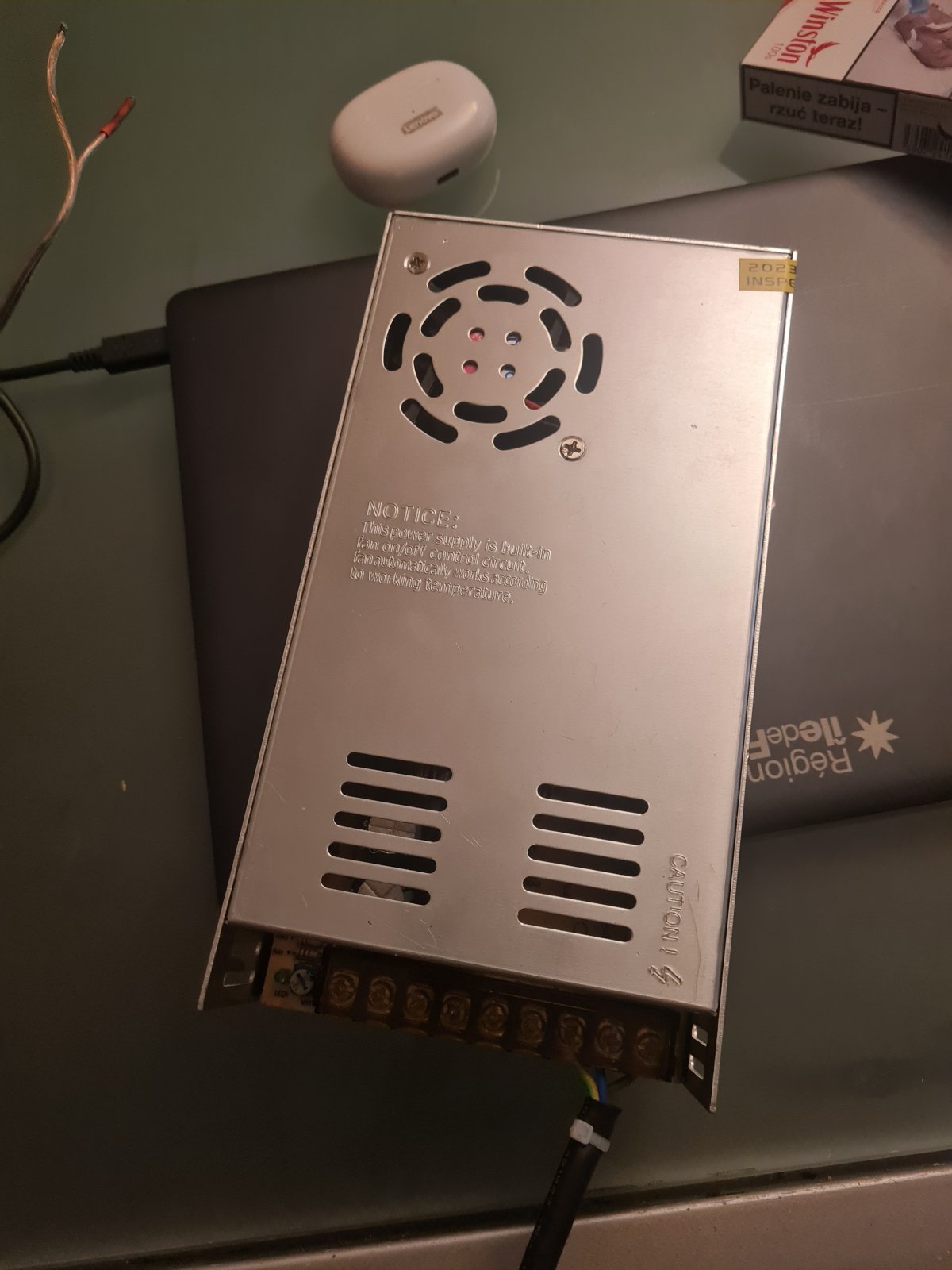

    for information i use 2 power supplies 24V 20A 500W
    20231107_175351.jpg 20231107_175358.jpg

    short video of testing the motors with SimTools
    • Like Like x 1
    Carl, Nov 8, 2023
    #2
  3. Carl

    Carl New Member Gold Contributor

    Joined:
    Oct 29, 2023
    Messages:
    23
    Location:
    Paris 75018
    Balance:
    79Coins
    Ratings:
    +12 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    Today I assembled the gimbal that will be used to move the seat:)
    https://youtube.com/shorts/T9iCGgwX-lo

    within the week I will receive the 45x45 aluminum profile to start assembling the seat mover.
    Have a good day:thumbs
    Carl, Nov 9, 2023
    #3
  4. Carl

    Carl New Member Gold Contributor

    Joined:
    Oct 29, 2023
    Messages:
    23
    Location:
    Paris 75018
    Balance:
    79Coins
    Ratings:
    +12 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    Hello everyone update assembly of the play seat :)

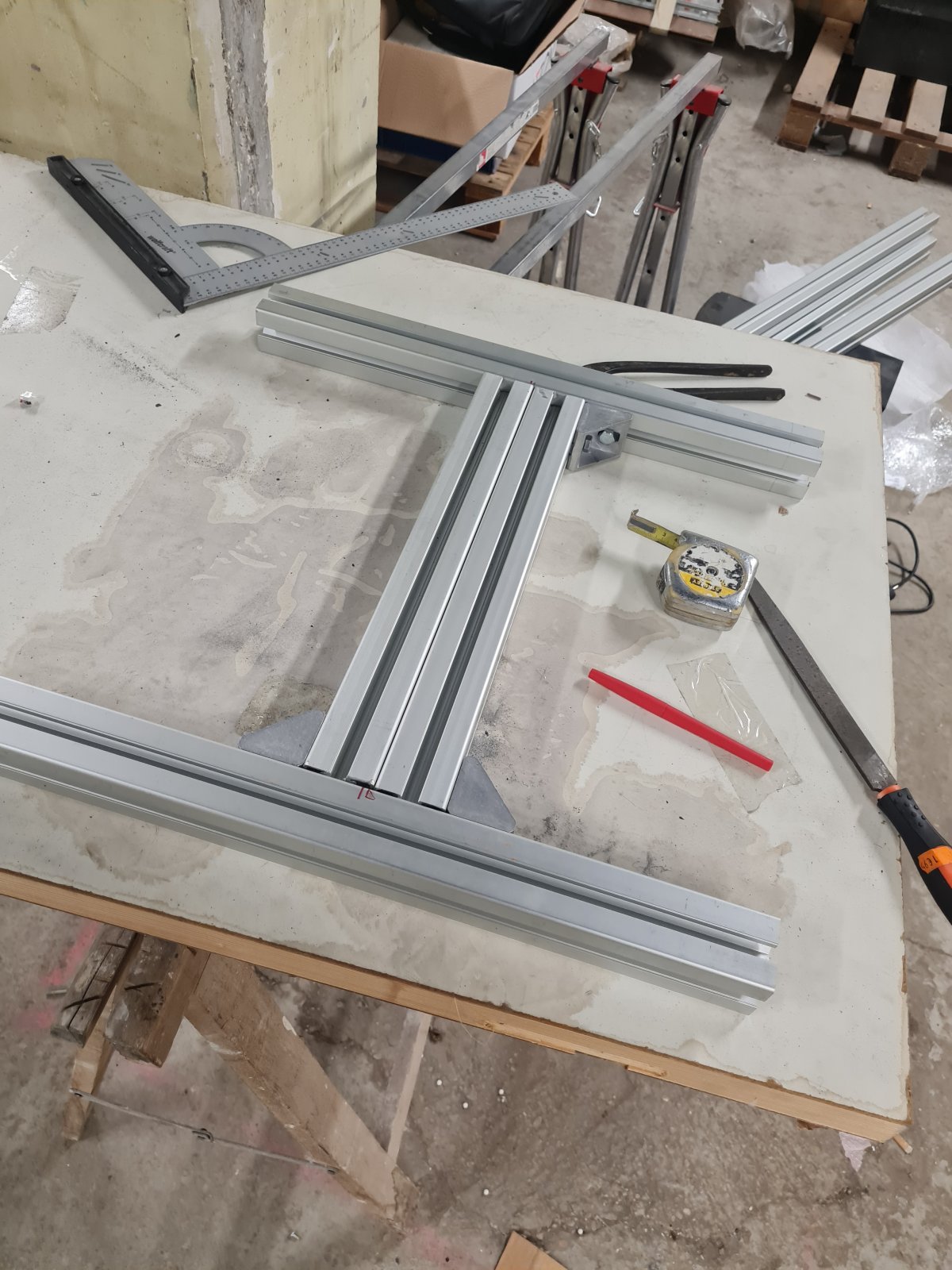

    Aluminum 45x45
    20231109_184945.jpg 20231109_195458.jpg

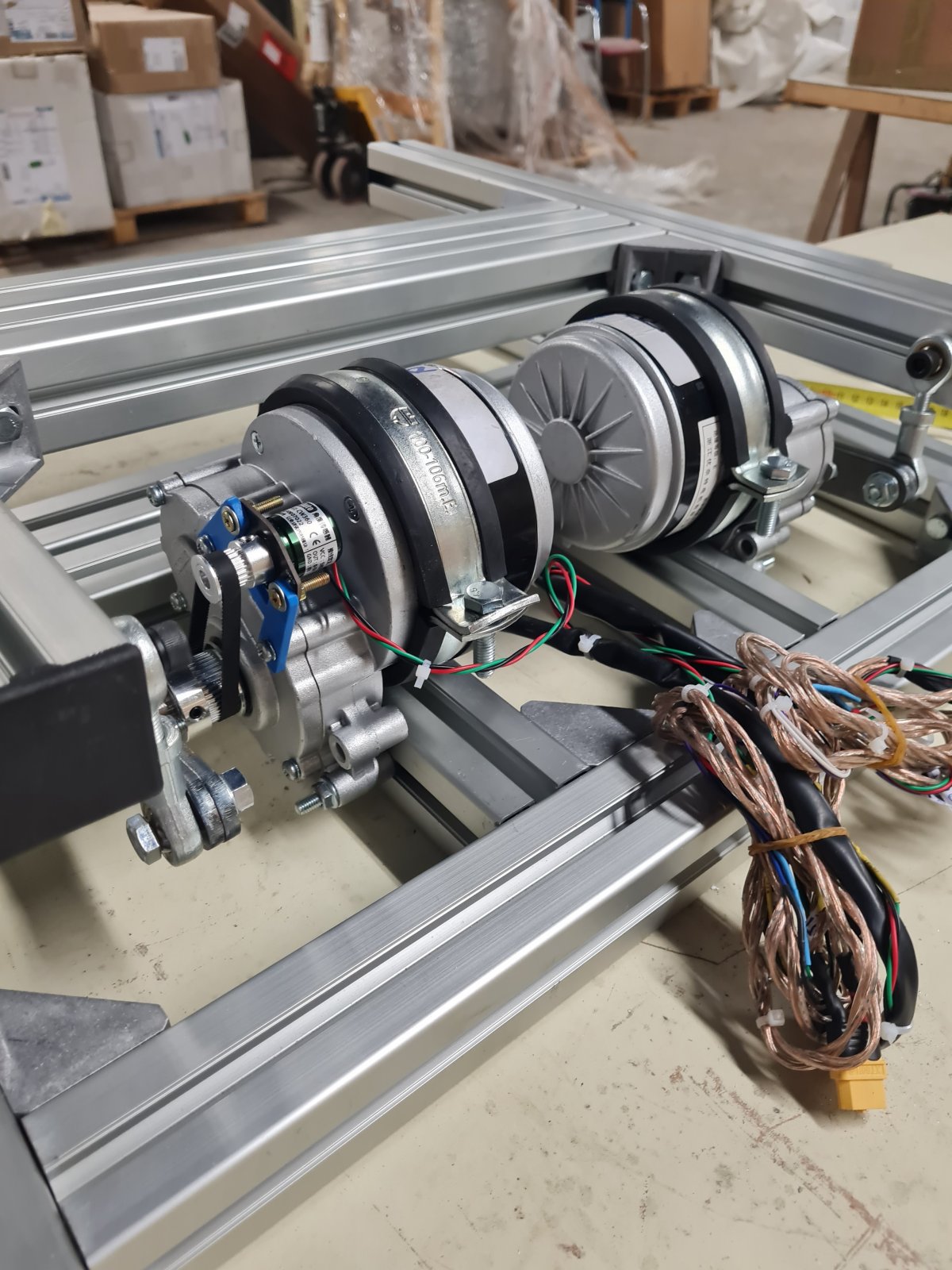

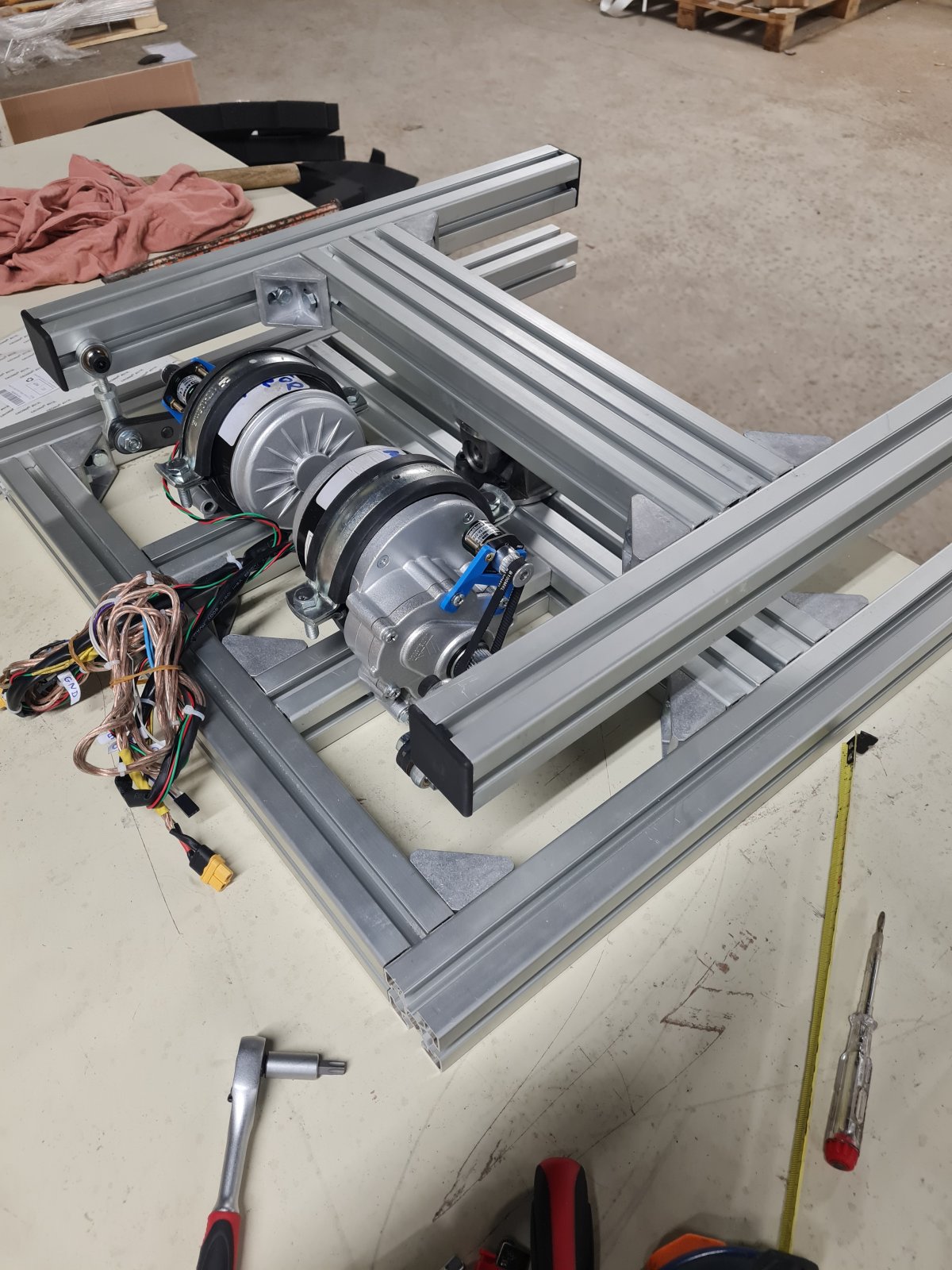

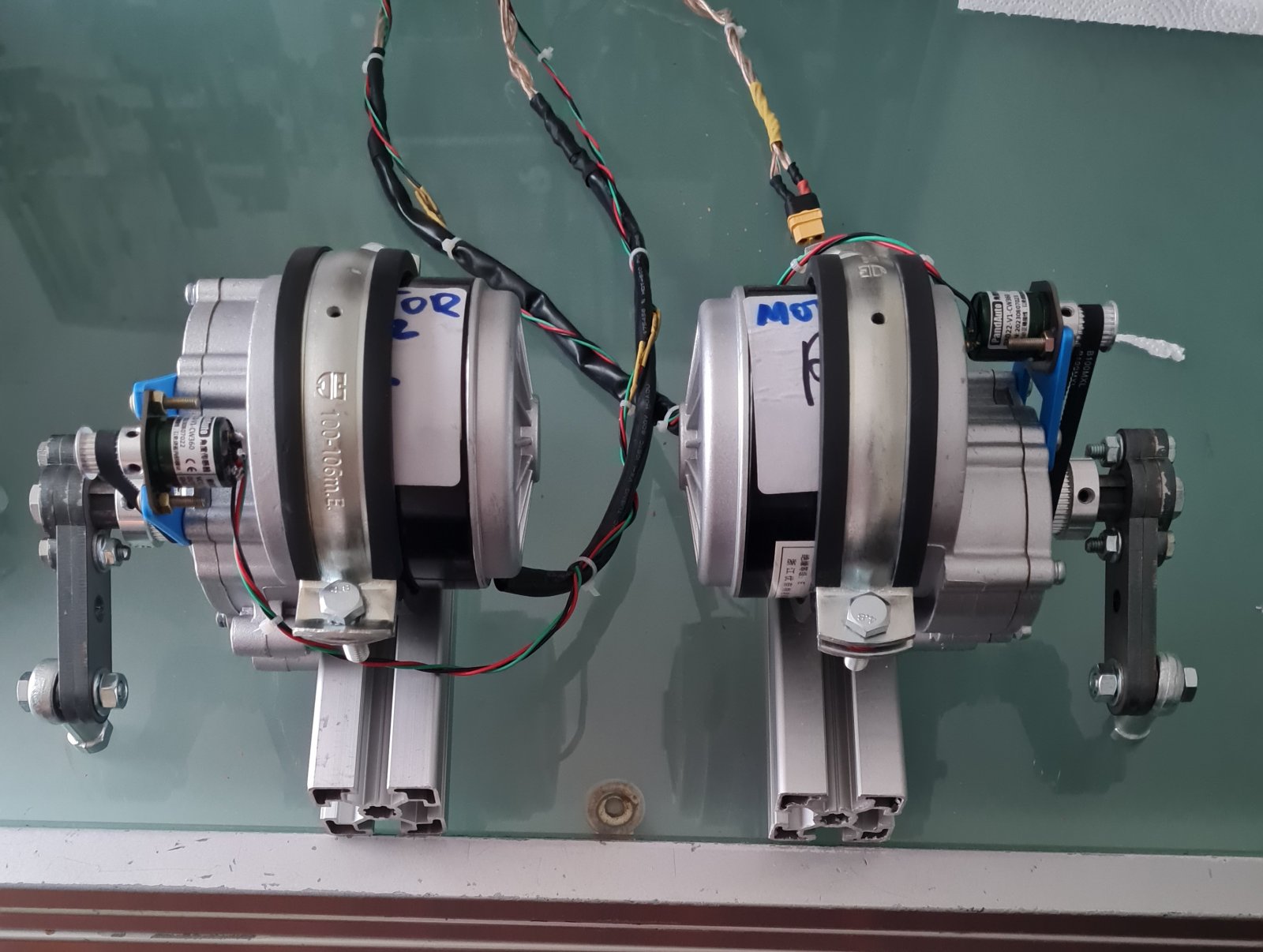

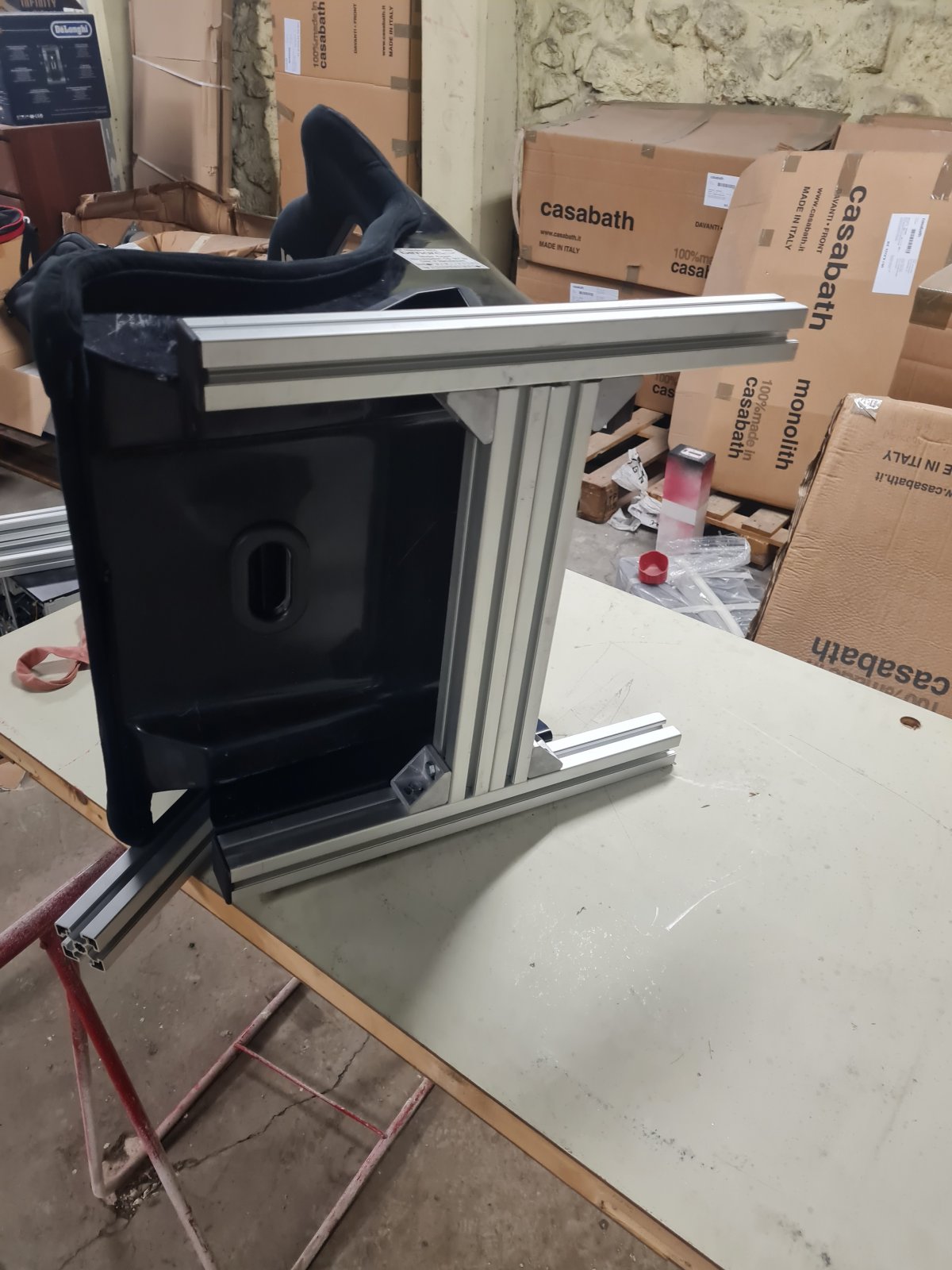

    engine assembly:D
    20231110_140633.jpg 20231110_181901.jpg 20231110_181853.jpg

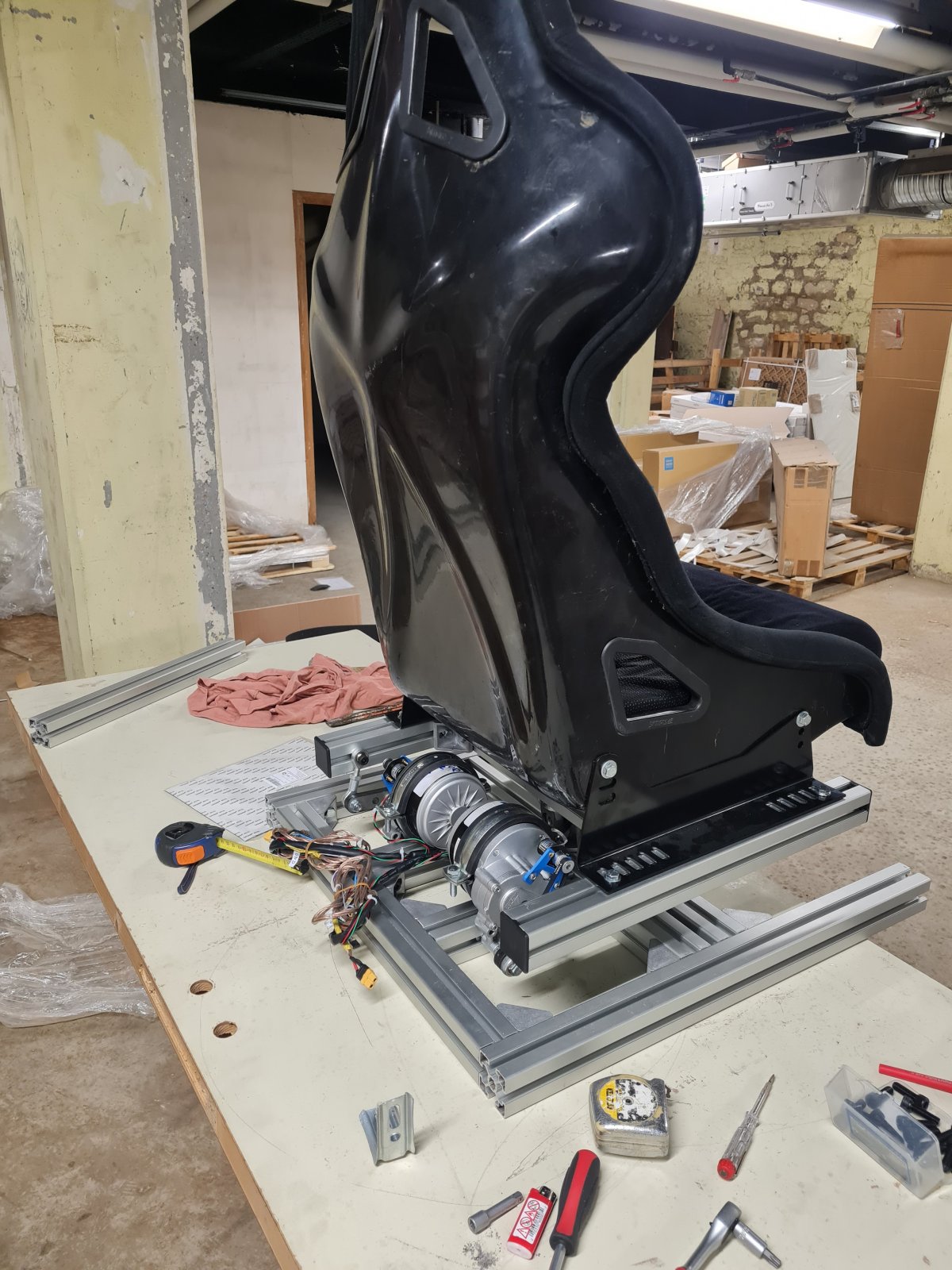

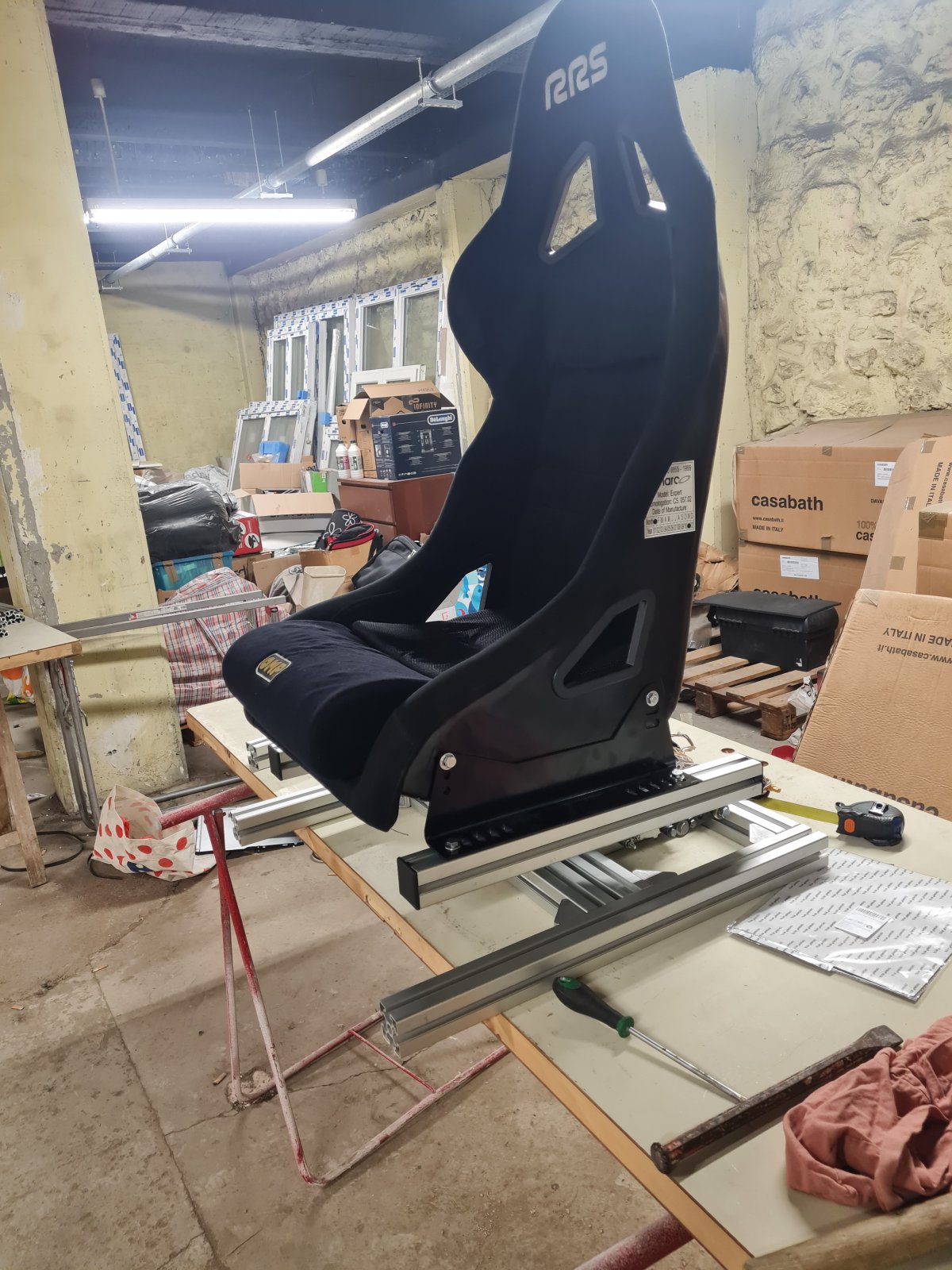

    seat assembly
    20231110_182902.jpg 20231110_182912.jpg

    next test of the seatmoover in video.
    Have a good day :thumbs
    • Like Like x 3
    Carl, Nov 10, 2023
    #4
  5. Carl

    Carl New Member Gold Contributor

    Joined:
    Oct 29, 2023
    Messages:
    23
    Location:
    Paris 75018
    Balance:
    79Coins
    Ratings:
    +12 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    Hi,
    short test video with the chassis


    Have a good day:thumbs
    • Like Like x 1
    Carl, Nov 15, 2023
    #5
  6. aparecido

    aparecido diy 2dof for flight simulator 2020

    Joined:
    Oct 21, 2023
    Messages:
    58
    Occupation:
    MECHATRONIC TECHNICIAN
    Location:
    BRAZIL
    Balance:
    - 27Coins
    Ratings:
    +20 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino

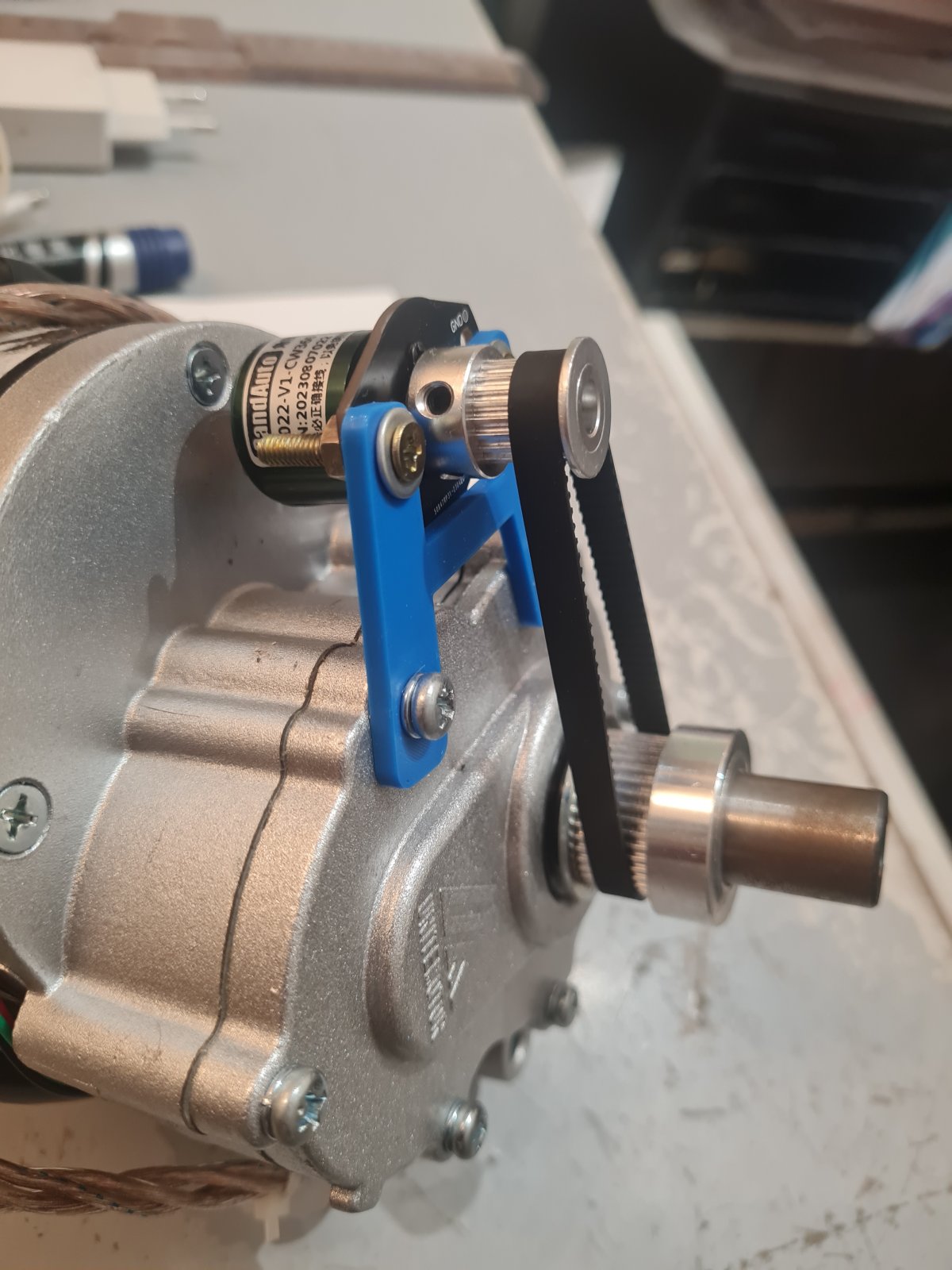

    Can you clear my doubts, why do you need to reduce the hall rotary sensor?
    aparecido, Nov 15, 2023
    #6
  7. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    20,915
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    147,206Coins
    Ratings:
    +10,858 / 54 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    You don't really need to gear a Hall Sensor, technically you could get away with a 90 degree Hall sensor, which would give the highest stock resolution, personally I use direct mount 180 degree Hall Sensors via a flexible mount to give a little more headroom.
    noorbeast, Nov 15, 2023
    #7
  8. Carl

    Carl New Member Gold Contributor

    Joined:
    Oct 29, 2023
    Messages:
    23
    Location:
    Paris 75018
    Balance:
    79Coins
    Ratings:
    +12 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    Hi,

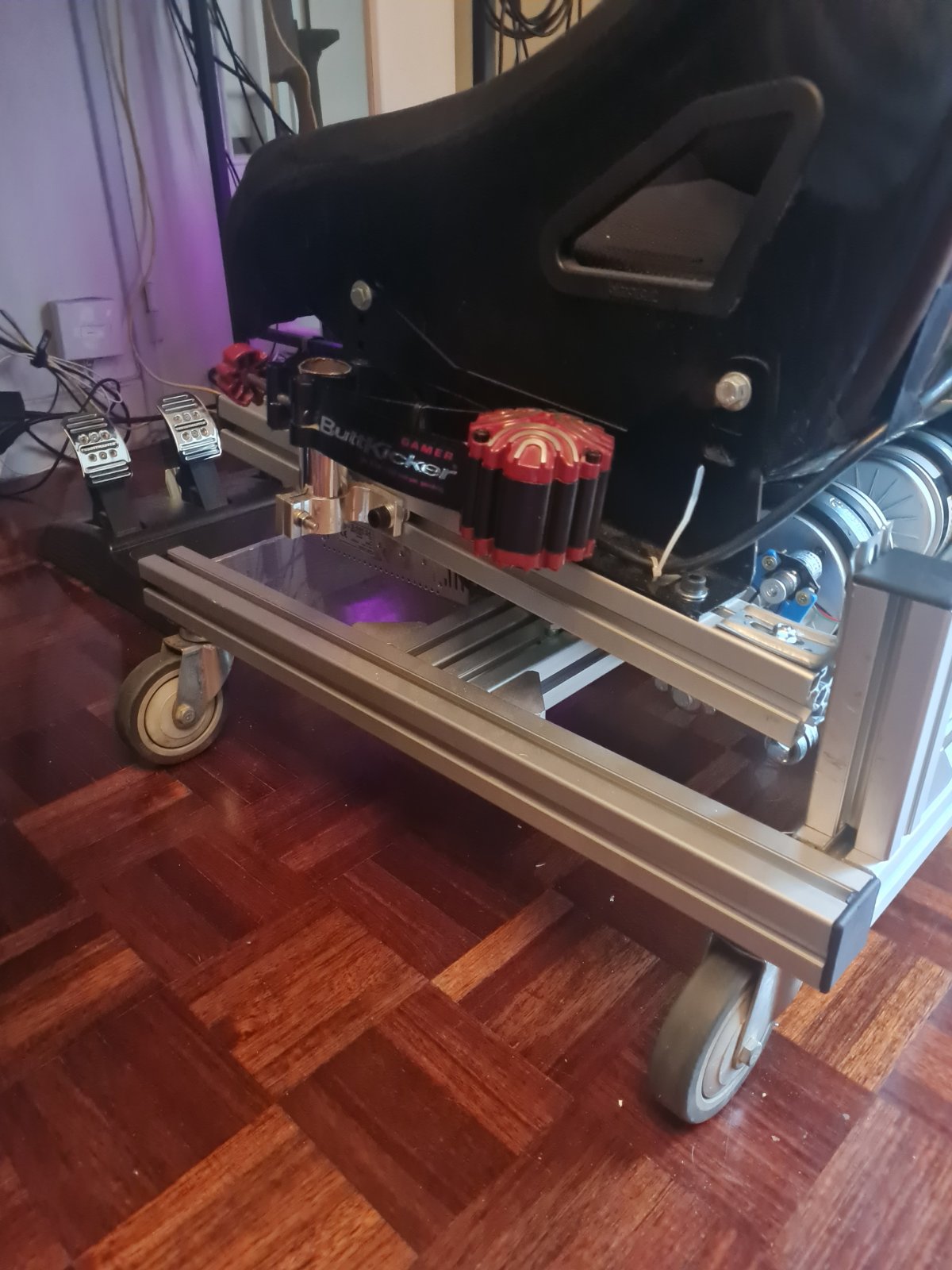

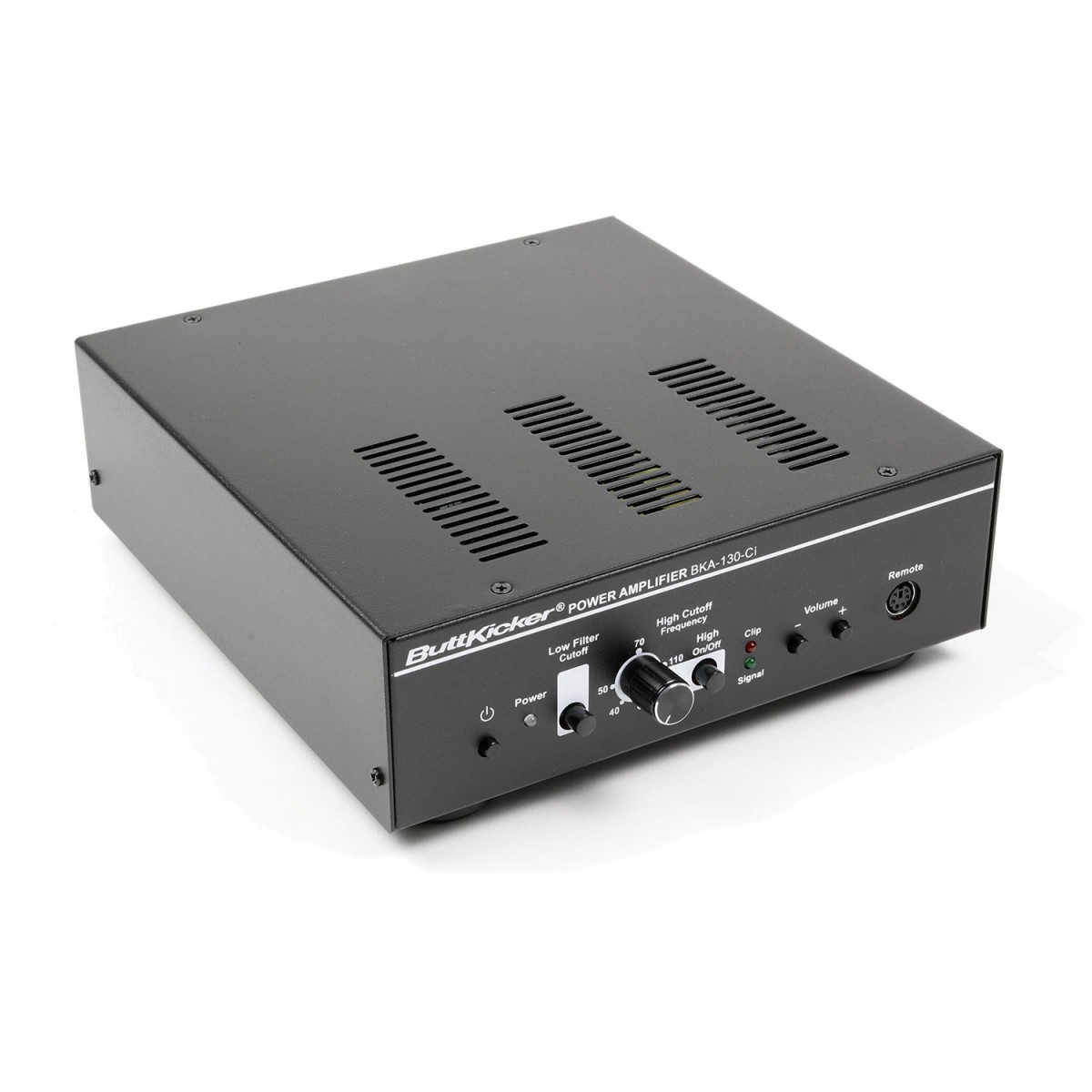

    I installed a Buttkicker for vibrations and it adds a lot to the immersion with the simulator.
