Question 2DOF Simulator: Structural calculations?

Discussion in 'DIY Motion Simulator Building Q&A / FAQ' started by TheGerard15, Mar 11, 2024.

Tags:
  1. TheGerard15

    TheGerard15 New Member Gold Contributor

    Joined:
    Jan 25, 2024
    Messages:
    6
    Balance:
    - 19Coins
    Ratings:
    +1 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino, Joyrider, Motion platform
    Hello everyone,

    I am starting this adventure of creating my own 2DOF simulator, but I would like to document the process quite well, from the calculations of the structure to the results of the simulator.

    Does anyone have any idea how to start with the calculations or if they already exist in this forum? I would like to have calculations of forces, distances, etc. of why the elements have been placed in the position they are.

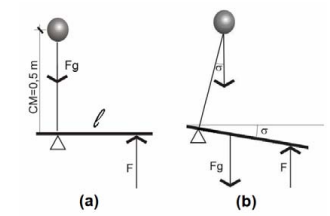

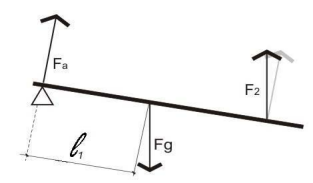

    For example, I was reviewing some academic papers where they performed force calculations using Newton's laws on 2D planes with force diagrams.
    I wonder, why is each element placed in that way? Was there any calculation done?
    upload_2024-3-11_14-50-43.png upload_2024-3-11_14-50-53.png upload_2024-3-11_14-51-3.png upload_2024-3-11_14-51-22.png

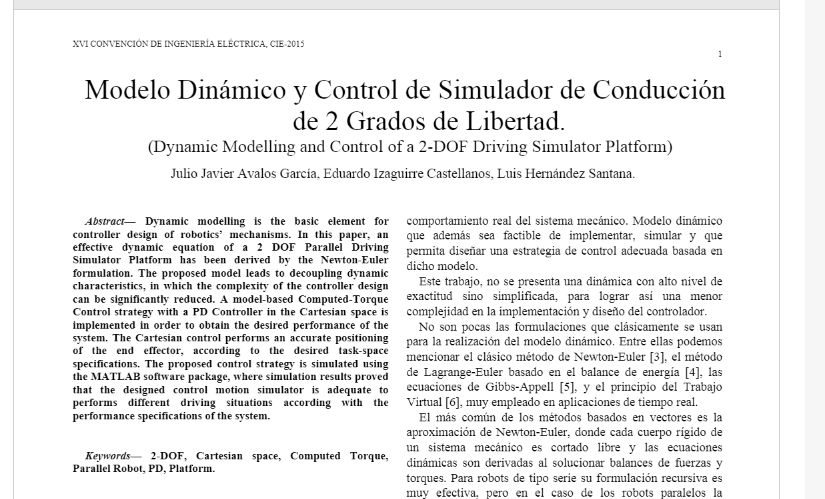

    Search reference in google: Modelo Dinámico y Control de Simulador de Conducción de 2 Grados de Libertad.

    Many thanks to everyone who responds to this forum.
