6Dof Stewart Platform Motion Simulator

Discussion in 'DIY Motion Simulator Projects' started by DocLove, Jan 19, 2016.

Page 1 of 3
  1. DocLove

    DocLove New Member

    Joined:
    Jan 19, 2016
    Messages:
    22
    Location:
    Grand Junction, CO, USA
    Balance:
    488Coins
    Ratings:
    +22 / 0 / -0
    Hey everyone, I'm brand new to this entire idea of home motion simulation, and I think the work you all have done is incredible. I am extremely interested in designing and building my own 6Dof motion simulator for both flight and racing simulation. As I have little experience in both engineering and fabrication I expect this will be a long project over the span of a few years. Right now I'm curious how to design a 3d model of a Stewart Platform in a program such as SketchUp or 3dsMax. Thanks for all the inspiration everyone, I'm looking forward to challenge ahead.
    DocLove, Jan 19, 2016
    #1
  2. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    21,092
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    148,234Coins
    Ratings:
    +10,892 / 54 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    There are plenty of online tutorials on how to use SketchUp but you can also hook it up to SimTools and drive a model with an actual game: http://www.xsimulator.net/community/faq/how-to-animate-sketchup-3d-model-with-simtools.209/

    A 6DOF is a complex and costly project so you may want to build a working model before committing either, just so you have an idea of what is involved: http://www.xsimulator.net/community/faq/build-a-working-model-to-test-your-design-ideas.216/

    Also have a good read through the 6DOF project threads: http://www.xsimulator.net/community/faq/list-of-6dof-projects.179/
    noorbeast, Jan 19, 2016
    #2
  3. DocLove

    DocLove New Member

    Joined:
    Jan 19, 2016
    Messages:
    22
    Location:
    Grand Junction, CO, USA
    Balance:
    488Coins
    Ratings:
    +22 / 0 / -0
    Thanks for the links and the advice :) My plan is to first model the platform on my computer, then build a small scale replica, and work out how to deal with the software and electronics. I have about $5,000 to spend on the project right now, though I'd like to make sure I have the knowledge to put it all together before I start spending any kind cash.
    • Like Like x 1
    DocLove, Jan 19, 2016
    #3
  4. SilentChill

    SilentChill Problem Maker

    Joined:
    Jul 19, 2014
    Messages:
    2,643
    Occupation:
    Railway Maintenance
    Location:
    Morecambe, Lancashire, England
    Balance:
    20,558Coins
    Ratings:
    +3,488 / 34 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 6DOF
    With that much cash you could build anything you wanted ;)
    • Agree Agree x 2
    SilentChill, Jan 19, 2016
    #4
  5. DocLove

    DocLove New Member

    Joined:
    Jan 19, 2016
    Messages:
    22
    Location:
    Grand Junction, CO, USA
    Balance:
    488Coins
    Ratings:
    +22 / 0 / -0
    That's the idea anyways :p I stayed up all last night learning to use sketchup, should have a working rough draft by the end of the day... I'll try to put up a video if I do
    • Like Like x 1
    DocLove, Jan 19, 2016
    #5
  6. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    21,092
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    148,234Coins
    Ratings:
    +10,892 / 54 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    • Informative Informative x 1
    noorbeast, Jan 20, 2016
    #6
  7. bruce stephen

    bruce stephen Hammer doesnt fix it, must be electrical

    Joined:
    Jun 7, 2015
    Messages:
    1,286
    Occupation:
    general contractor
    Location:
    michigan
    Balance:
    9,112Coins
    Ratings:
    +1,238 / 9 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino, Motion platform, 6DOF
    nice, cant wait
    bruce stephen, Jan 20, 2016
    #7
  8. DocLove

    DocLove New Member

    Joined:
    Jan 19, 2016
    Messages:
    22
    Location:
    Grand Junction, CO, USA
    Balance:
    488Coins
    Ratings:
    +22 / 0 / -0
    Is there a way to post sketchup files to my thread? My video isn't working out lol
    DocLove, Jan 20, 2016
    #8
  9. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    21,092
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    148,234Coins
    Ratings:
    +10,892 / 54 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    Just zip the SketchUp file and post it as an attachment. Others can then download it and run it in SketchUp.

    I included my settings in the earlier post to show how I had the Interface and Axis setup and that is handy if you want others to test something for you.
    noorbeast, Jan 20, 2016
    #9
  10. DocLove

    DocLove New Member

    Joined:
    Jan 19, 2016
    Messages:
    22
    Location:
    Grand Junction, CO, USA
    Balance:
    488Coins
    Ratings:
    +22 / 0 / -0
    Hit a hiccup with the simtools controller in sktchup... For some reason it only outputs to axis 1, 2, and 3. Also I'm curious why it says requires sketchyphysics 3.7.1! in the top left corner. I have the 3.7.1 installed.
    DocLove, Jan 20, 2016
    #10
  11. DocLove

    DocLove New Member

    Joined:
    Jan 19, 2016
    Messages:
    22
    Location:
    Grand Junction, CO, USA
    Balance:
    488Coins
    Ratings:
    +22 / 0 / -0

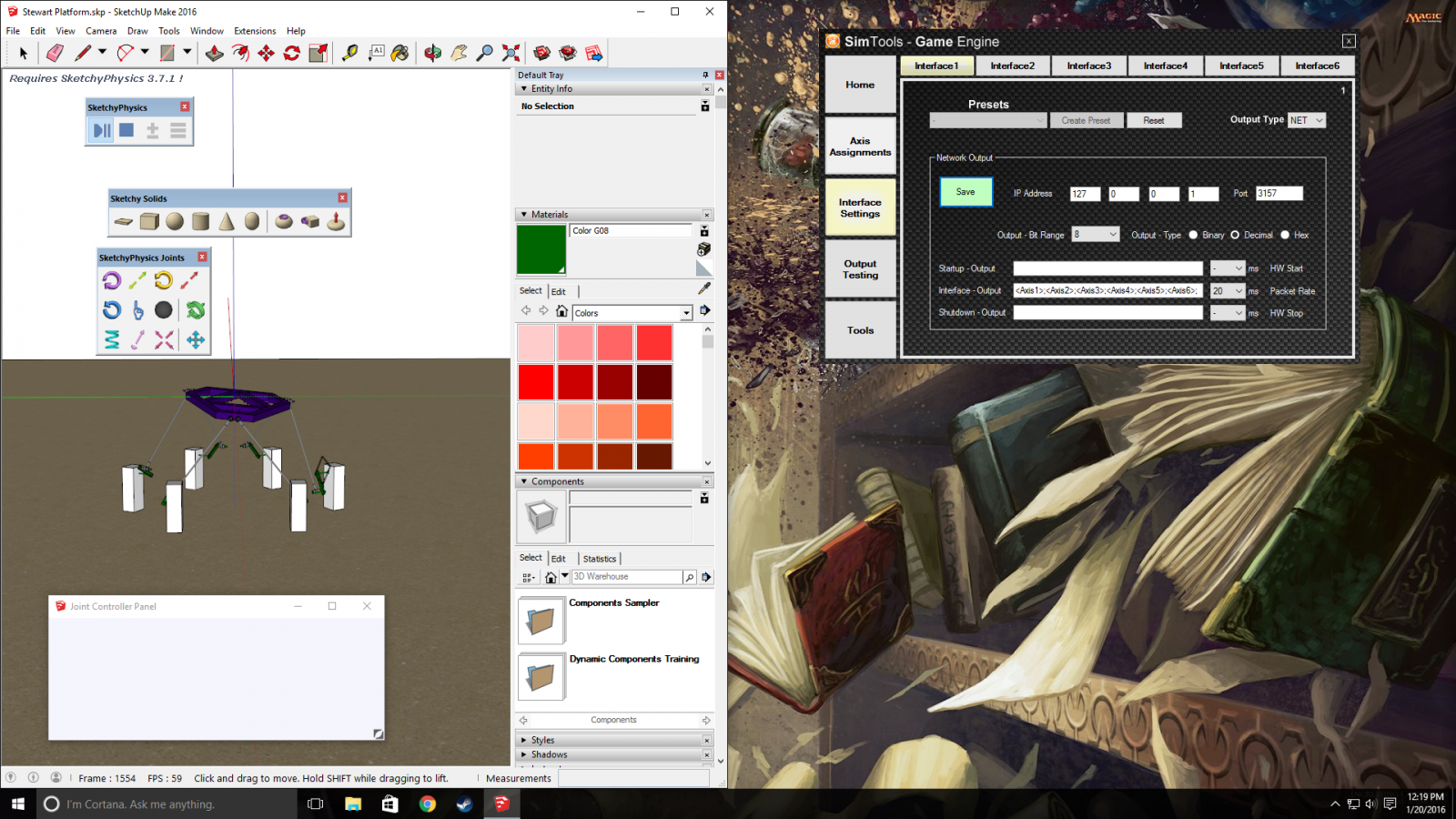

    Screenshot (1).png
    DocLove, Jan 20, 2016
    #11
  12. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    21,092
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    148,234Coins
    Ratings:
    +10,892 / 54 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    Before moving on to other things did you run the simple model I linked to with the settings I provided with LFS?

    I just want to verify it is all working before the complexity of a 6DOF model is added.
    noorbeast, Jan 20, 2016
    #12
  13. speedy

    speedy Well-Known Member

    Joined:
    Feb 1, 2012
    Messages:
    1,193
    Location:
    Alexandria , Egypt
    Balance:
    7,932Coins
    Ratings:
    +1,287 / 10 / -0
    My Motion Simulator:
    3DOF, AC motor, Arduino, Motion platform
    You will also find axis 3 inverted ... maybe this next link will help ... plus maybe " I didn't try this " adding a 4,5,6 Axis in the ruby file " when edited as text" will solve your 6 DOF Single Interface output controller problem in SimTools .

    http://www.xsimulator.net/community/threads/sketchup-sketchyphysics-simulation-faq.7864/#post-95596
    • Informative Informative x 2
    Last edited: Jan 21, 2016
    speedy, Jan 21, 2016
    #13
  14. DocLove

    DocLove New Member

    Joined:
    Jan 19, 2016
    Messages:
    22
    Location:
    Grand Junction, CO, USA
    Balance:
    488Coins
    Ratings:
    +22 / 0 / -0
    Thank's speedy, that was exactly the solution!
    • Like Like x 1
    DocLove, Jan 21, 2016
    #14
  15. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    21,092
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    148,234Coins
    Ratings:
    +10,892 / 54 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    Thanks @speedy, I have added both bits of your info to the SketchUp Guide: http://www.xsimulator.net/community/faq/how-to-animate-sketchup-3d-model-with-simtools.209/
    • Like Like x 1
    noorbeast, Jan 21, 2016
    #15
  16. speedy

    speedy Well-Known Member

    Joined:
    Feb 1, 2012
    Messages:
    1,193
    Location:
    Alexandria , Egypt
    Balance:
    7,932Coins
    Ratings:
    +1,287 / 10 / -0
    My Motion Simulator:
    3DOF, AC motor, Arduino, Motion platform
    Thanks @noorbeast ... I guess it will be like this ...

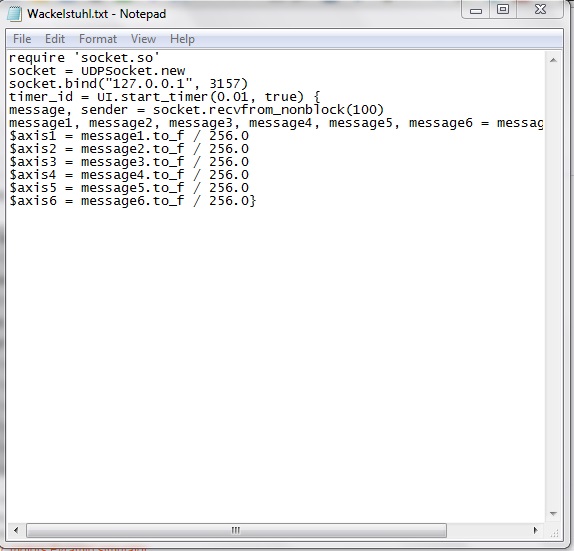

    require 'socket.so'
    socket = UDPSocket.new
    socket.bind("127.0.0.1", 3157)
    timer_id = UI.start_timer(0.01, true) {
    message, sender = socket.recvfrom_nonblock(100)
    message1, message2, message3, message4, message5, message6 = message.split(";")
    $axis1 = message1.to_f / 256.0
    $axis2 = message2.to_f / 256.0
    $axis3 = message3.to_f / 256.0
    $axis4 = message4.to_f / 256.0
    $axis5 = message5.to_f / 256.0
    $axis6 = message6.to_f / 256.0}

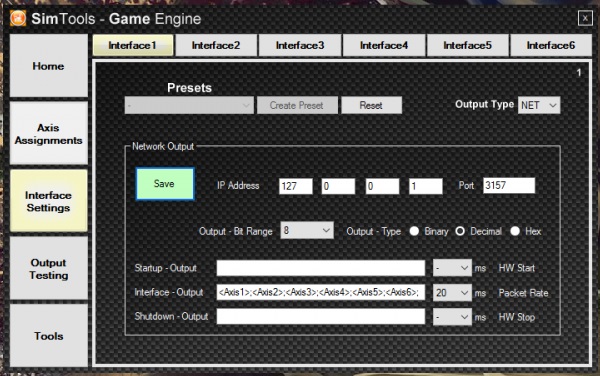

    Screenshot (1).jpg
    • Informative Informative x 2
    Last edited: Jan 21, 2016
    speedy, Jan 21, 2016
    #16
  17. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    21,092
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    148,234Coins
    Ratings:
    +10,892 / 54 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    • Like Like x 1
    noorbeast, Jan 21, 2016
    #17
  18. DocLove

    DocLove New Member

    Joined:
    Jan 19, 2016
    Messages:
    22
    Location:
    Grand Junction, CO, USA
    Balance:
    488Coins
    Ratings:
    +22 / 0 / -0

    It's alive!!!

    • Like Like x 3
    • Winner Winner x 3
    DocLove, Jan 22, 2016
    #18
  19. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    21,092
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    148,234Coins
    Ratings:
    +10,892 / 54 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    Nice work @DocLove :thumbs

    Do you plan on making the SketchUp file available?
    noorbeast, Jan 22, 2016
    #19
  20. DocLove

    DocLove New Member

    Joined:
    Jan 19, 2016
    Messages:
    22
    Location:
    Grand Junction, CO, USA
    Balance:
    488Coins
    Ratings:
    +22 / 0 / -0
    Most definitely, the model isn't quite up to snuff yet due to my original lack of knowledge using sketchup. There will be more versions to come :)

    Attached Files:

    • Winner Winner x 4
    • Like Like x 1
    DocLove, Jan 22, 2016
    #20
Page 1 of 3
