Question DIY Arduino Leonardo FFB wheel encoder problems.

Discussion in 'DIY peripherals' started by Firestorm7893, Apr 26, 2021.

Tags:
  1. Firestorm7893

    Firestorm7893 New Member

    Joined:
    Apr 26, 2021
    Messages:
    1
    Balance:
    43Coins
    Ratings:
    +0 / 0 / -0
    My Motion Simulator:
    Arduino
    Hello everybody, this is my first post ever in this forum, so I hope I'm not breaking any rules.

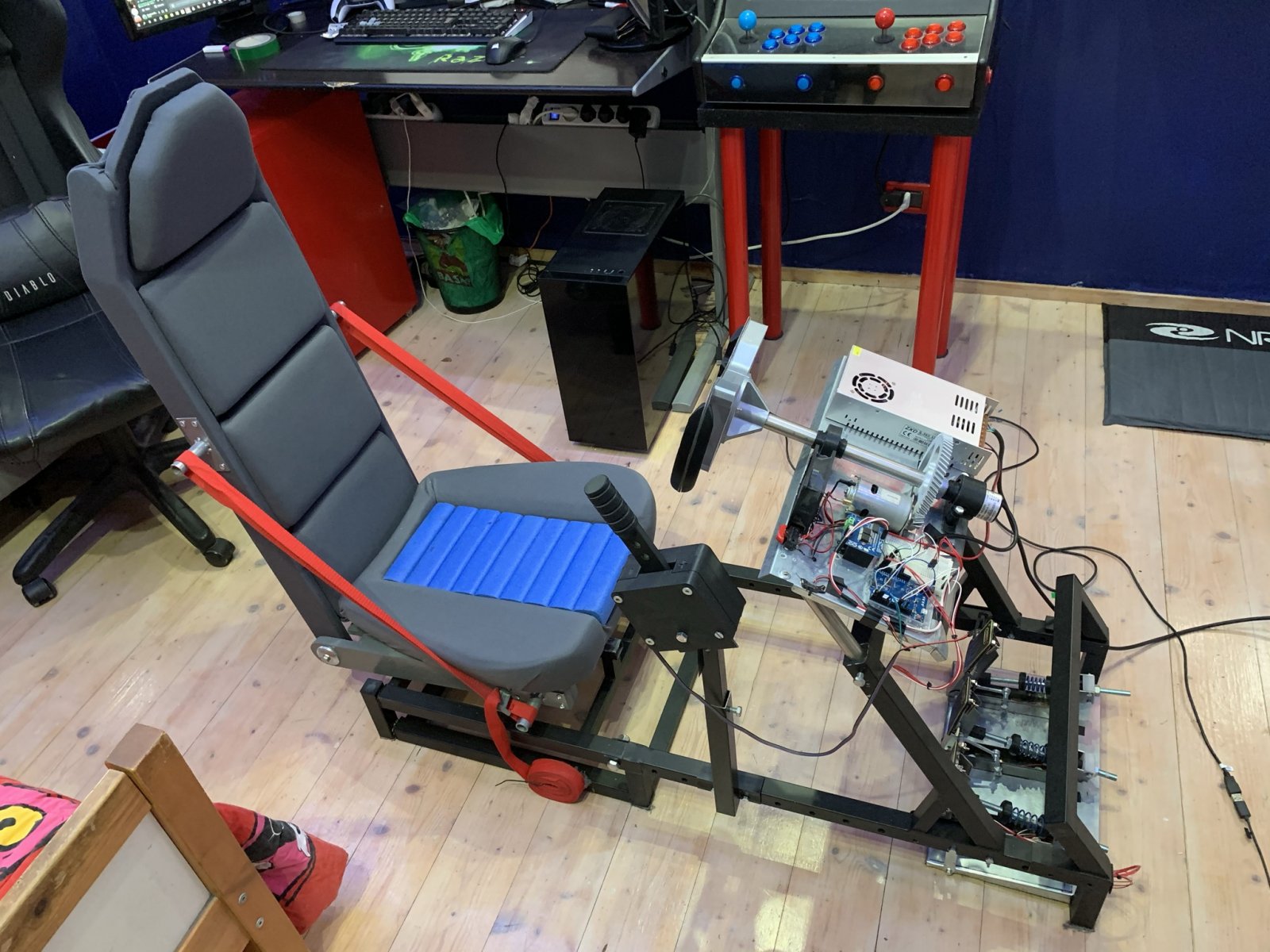

    This january I decided to build a racing rig mostly out of scrapped parts with my dad and i think the structure came out pretty good.
    The problem is that I cannot get the Rotary Encoder to work reliably. It misses steps and I cannot figure out why.

    This is the encoder I bought off of Amazon.
    I used this guide as a reference
    Part 1:
    Part 2:

    I'm able to calibrate the wheel by disconnecting the z-index wire manually and by wiggling the wheel back and forth like he does in the video. The DC motor also works, it's just the Encoder who's unreliable.

    I tried doing as someone suggested in this forum and I pulled the AB phases high with two 10k resistors. Without them the encoder doesn't register at all, so it's better than nothing I guess...

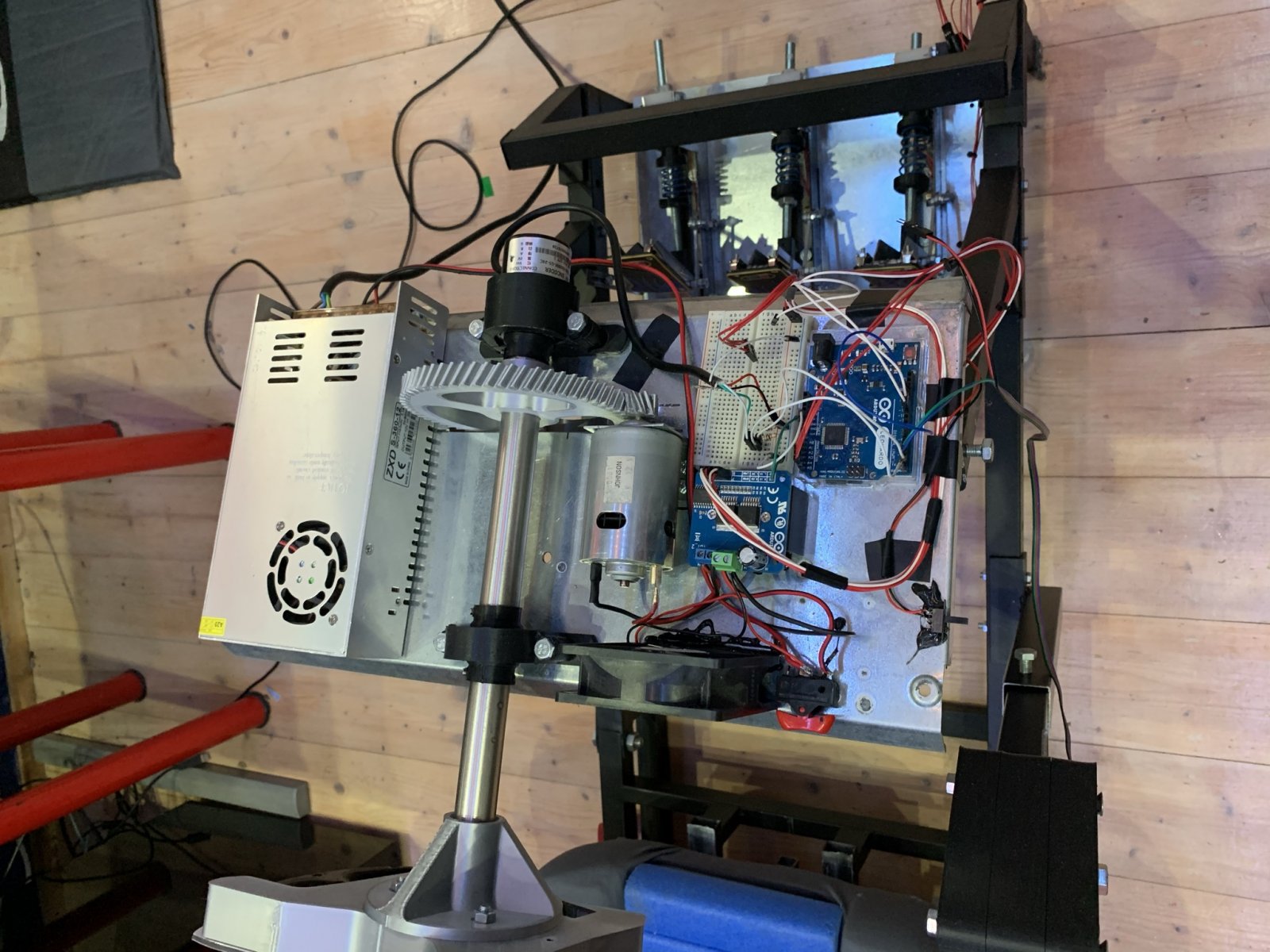

    I'lll add some pictures of the wiring if your interested:

    I know the ground wire attached to the negative of the arduino shouldn't be there, but it doesn't seem to make a difference, keeps missing steps :(
    I put it there just to try something.

    Do you think my encoder is defective? Maybe I'm missing something obvious. I just want this project to work!
    Thanks in advance for any help I may receive
    Firestorm7893, Apr 26, 2021
    #1
  2. Iyaowh

    Iyaowh New Member

    Joined:
    Jan 2, 2024
    Messages:
    1
    Balance:
    6Coins
    Ratings:
    +0 / 0 / -0
    My Motion Simulator:
    DC motor, Arduino
    Same with my project, the encorder won't work
    Help us please..
    Iyaowh, Jan 5, 2024
    #2
