Discussion in 'DIY Motion Simulator Building Q&A / FAQ' started by jsmith2307, Feb 13, 2012.

  1. jsmith2307

    jsmith2307 Member

    Joined:
    Oct 2, 2010
    Messages:
    105
    Occupation:
    Respiratory Therapist
    Location:
    Corpus Christi, Texas
    Balance:
    324Coins
    Ratings:
    +7 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino, Joyrider, Motion platform
    Greetings,

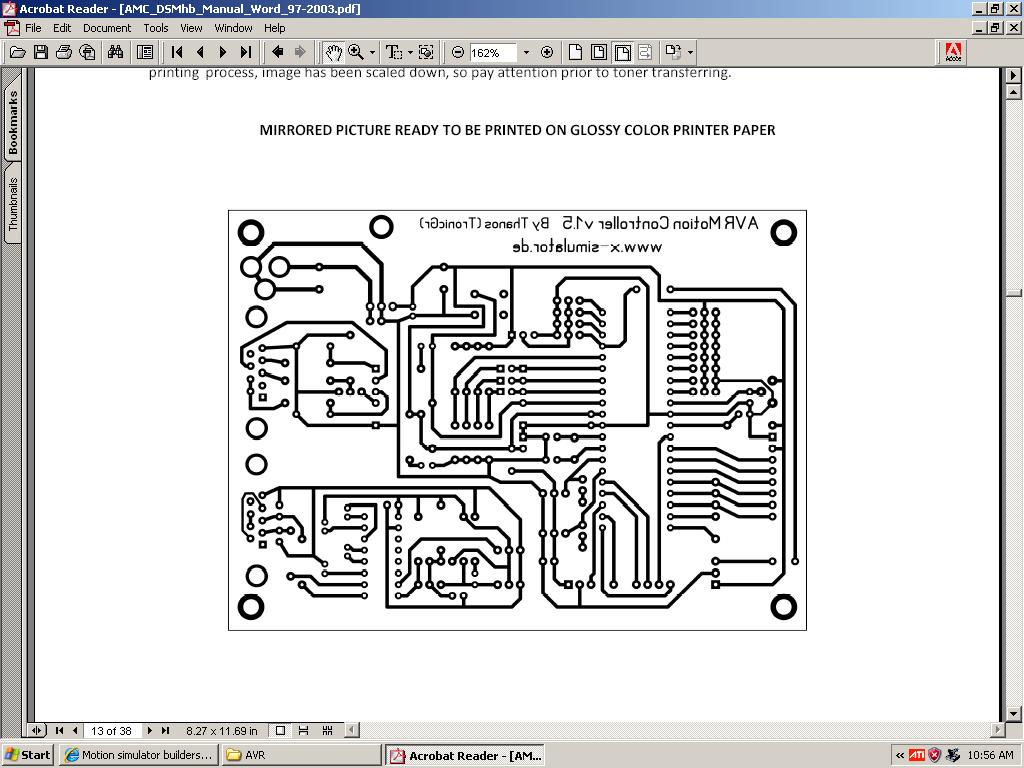

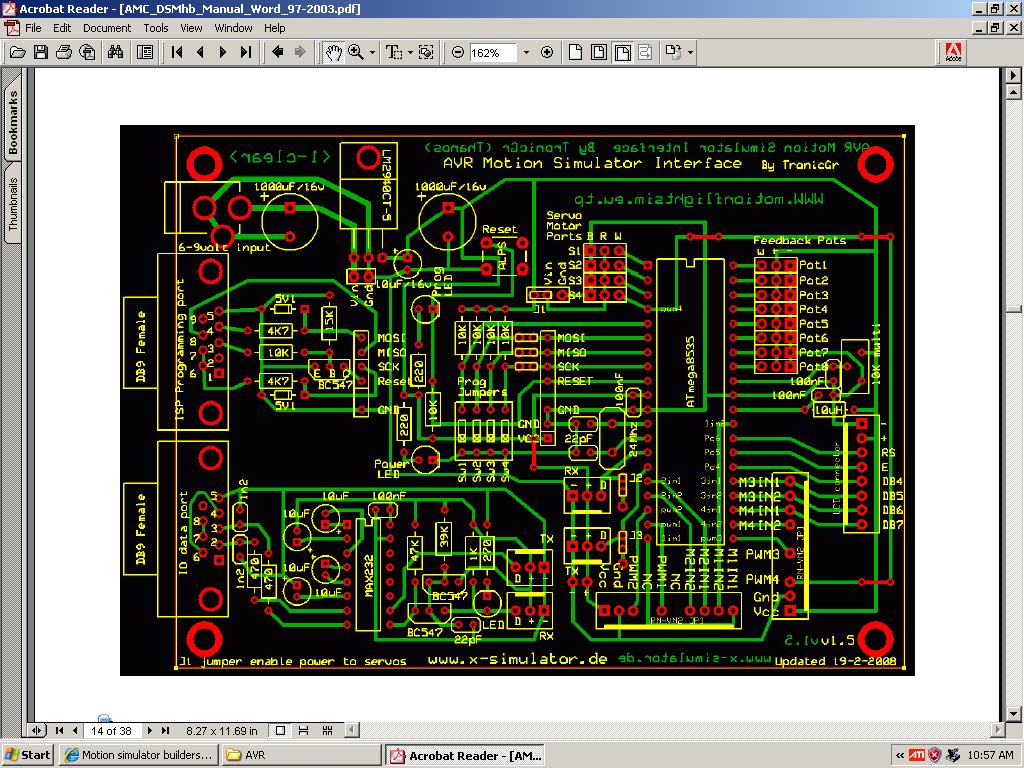

    A point of minor confusion, in the manual for AVR, the board shown has only three jumpers on it (the one I own, and can't get to work) , however, in the next view of the AVR, it shows four, with a new footprint. What gives? :?

    Attached Files:

    jsmith2307, Feb 13, 2012
    #1
  2. Bruceaust

    Bruceaust Member

    Joined:
    Sep 2, 2011
    Messages:
    73
    Occupation:
    CNC Routing
    Location:
    Launceston, Tasmania, Australia
    Balance:
    63Coins
    Ratings:
    +11 / 0 / -0
    My Motion Simulator:
    2DOF
    Hi,
    I think there is no difference in the functionality of the boards shown in the 2 different images. They may be different revisions?
    If you look closely at the connection to the center of the feedback pots, you will see that the pcb track layout has been modified to simplify the board. The extra jumper jumps over this track in the other version.
    Just install the jumpers and all should be OK on both versions of the board as it replicates the wiring of the other board anyway! :)
    Bruceaust, Feb 13, 2012
    #2
  3. jsmith2307

    jsmith2307 Member

    Joined:
    Oct 2, 2010
    Messages:
    105
    Occupation:
    Respiratory Therapist
    Location:
    Corpus Christi, Texas
    Balance:
    324Coins
    Ratings:
    +7 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino, Joyrider, Motion platform
    Thank you for your response! I'm happy to hear that. :happy:
    jsmith2307
    jsmith2307, Feb 14, 2012
    #3
