looking for a short cut to ready built actuators!

Discussion in 'Commercial Simulators and Peripherie' started by Jerry Atrick, Jun 7, 2018.

Page 1 of 2
  1. Jerry Atrick

    Jerry Atrick this is my sim Gold Contributor

    Joined:
    May 3, 2017
    Messages:
    141
    Occupation:
    Retired
    Location:
    Sydney Australia
    Balance:
    1,414Coins
    Ratings:
    +44 / 1 / -0
    My Motion Simulator:
    4DOF
    Hi all, maybe this is not for all; however I thought the info maybe useful.

    Ive been scouring AC and DC motors to use I my impending mistakes for this hexapod thingy, motor after motor for the last 4 nights burning the midnight oil as it were, and then I came across this

    https://hnlunyi.en.alibaba.com/prod...m=a2700.icbuShop.prewdfa4cf.67.121d78a1gIjDhW

    So something maybe useful to some of you here.

    As for me I've had 42 quotes for motor systems and frankly I'm still none the wiser; what does that tell you:blush

    Jerry
    • Informative Informative x 1
    Jerry Atrick, Jun 7, 2018
    #1
  2. Gadget999

    Gadget999 Well-Known Member

    Joined:
    Dec 27, 2015
    Messages:
    1,935
    Location:
    London
    Balance:
    11,838Coins
    Ratings:
    +473 / 9 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino, 6DOF
    i sent an enquiry - they look pretty good

    i got sent a video - i will try and upload it
    Gadget999, Jun 11, 2018
    #2
  3. Gadget999

    Gadget999 Well-Known Member

    Joined:
    Dec 27, 2015
    Messages:
    1,935
    Location:
    London
    Balance:
    11,838Coins
    Ratings:
    +473 / 9 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino, 6DOF
    video attached

    they can supply the base plates also

    Attached Files:

    Gadget999, Jun 11, 2018
    #3
  4. Jerry Atrick

    Jerry Atrick this is my sim Gold Contributor

    Joined:
    May 3, 2017
    Messages:
    141
    Occupation:
    Retired
    Location:
    Sydney Australia
    Balance:
    1,414Coins
    Ratings:
    +44 / 1 / -0
    My Motion Simulator:
    4DOF
    Hi Gadget, they are quoting for a system now, I will fill you in when finalised

    Jerry
    • Like Like x 1
    Jerry Atrick, Jun 12, 2018
    #4
  5. adgun

    adgun Active Member

    Joined:
    Jan 28, 2008
    Messages:
    518
    Occupation:
    mechanic
    Location:
    Netherlands
    Balance:
    5,684Coins
    Ratings:
    +131 / 4 / -0
    Hi i see they use leadscrews with3000 and 2400 rpm, this means normaly a low duty cycle.
    A ballscrew is rolling a leadscrew is slidding this create heat and lowers duty cycle,how higher te rpm are the more rest he need to coul douwn
    adgun, Jun 12, 2018
    #5
  6. Gadget999

    Gadget999 Well-Known Member

    Joined:
    Dec 27, 2015
    Messages:
    1,935
    Location:
    London
    Balance:
    11,838Coins
    Ratings:
    +473 / 9 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino, 6DOF
    so the price is in - basically everything is included to build a 6dof platform with top and bottom plates and hinges

    the actuators are supplied with servo drivers

    DX6-1000-DH65-S500-P2 6DOF,65mm,Foldback Type, 500mm Stroke,With Plate up and bottom Include joint hinges,Accoridng to Drawing

    Servo Driver:SV-DA200-0R7-2-E 750W,220V,Pulse Type Servo Motor:SV-ML08-0R7G-2-1A0 750W,2500-line incremental,Without Brake 3m Power Cable:DAML-075-03-AB 3m Encoder Cable:DBEL-15-03-A


    the actuators are 450 kg each and 250mm/s iirc

    total cost USD 8,666.00

    approx 6500 GBP

    or 7400 Euro

    basically a complete 6dof with actuators and servo drivers

    what do people think - is this a good price compared to what it costs to build something similar ?
    Gadget999, Jun 13, 2018
    #6
  7. Thanos

    Thanos Building the Future one AC Servo at a time... or 6

    Joined:
    Jul 6, 2017
    Messages:
    1,358
    Occupation:
    Electronics Engineer
    Location:
    United States
    Balance:
    2,773Coins
    Ratings:
    +1,050 / 9 / -0
    My Motion Simulator:
    AC motor, Motion platform, 4DOF, 6DOF

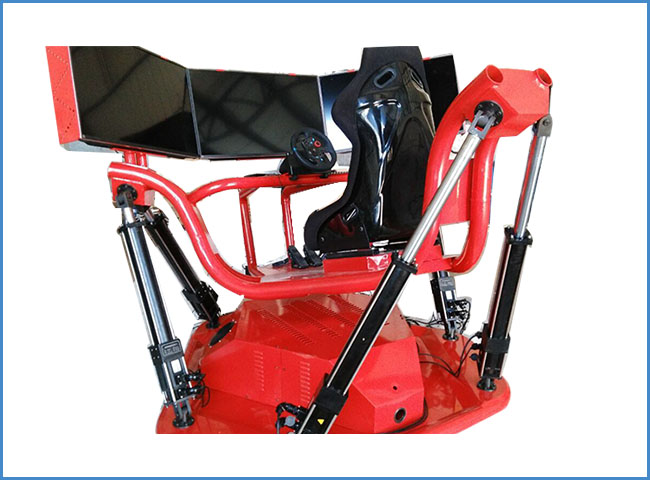

    I got quote for the platform on the photo for $5500, but stripped down with only metal frame, servomotor actuators 750w - 400mm stroke - 500mm/s and 750w servo drives. (Factory price...),

    Thanos, Jun 15, 2018
    #7
  8. Gadget999

    Gadget999 Well-Known Member

    Joined:
    Dec 27, 2015
    Messages:
    1,935
    Location:
    London
    Balance:
    11,838Coins
    Ratings:
    +473 / 9 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino, 6DOF
    This is something they already manufacture and is a pretty good deal when you think about it.

    Are you going ahead ?
    Gadget999, Jun 15, 2018
    #8
  9. Jerry Atrick

    Jerry Atrick this is my sim Gold Contributor

    Joined:
    May 3, 2017
    Messages:
    141
    Occupation:
    Retired
    Location:
    Sydney Australia
    Balance:
    1,414Coins
    Ratings:
    +44 / 1 / -0
    My Motion Simulator:
    4DOF
    Hi Gadget, Yes a good deal if you have US dollars, unfortunately I have Australian Pecos, and by the time you add shipping its out of the question!!:(

    Jerry
    Jerry Atrick, Jun 15, 2018
    #9
  10. Gadget999

    Gadget999 Well-Known Member

    Joined:
    Dec 27, 2015
    Messages:
    1,935
    Location:
    London
    Balance:
    11,838Coins
    Ratings:
    +473 / 9 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino, 6DOF
    I am not sure it is possible to build this type of sim diy for less !
    Gadget999, Jun 18, 2018
    #10
  11. SeatTime

    SeatTime Well-Known Member

    Joined:
    Dec 27, 2013
    Messages:
    2,573
    Occupation:
    Retired
    Location:
    Brisbane Australia
    Balance:
    28,370Coins
    Ratings:
    +2,844 / 39 / -0
    My Motion Simulator:
    AC motor, Motion platform
    I enjoy the building process and could do this for less, but many do not have the spare time and skill/equipment needed to build these DIY. - So is it a good price - for many I would think yes.
    • Informative Informative x 1
    SeatTime, Jun 18, 2018
    #11
  12. Jerry Atrick

    Jerry Atrick this is my sim Gold Contributor

    Joined:
    May 3, 2017
    Messages:
    141
    Occupation:
    Retired
    Location:
    Sydney Australia
    Balance:
    1,414Coins
    Ratings:
    +44 / 1 / -0
    My Motion Simulator:
    4DOF
    Hi all, in my quest for BLDC motors, from a Manufacturer in Taiwan I came across this " yes someone else whom likes 6DOF "



    Jerry
    • Like Like x 1
    Jerry Atrick, Jul 2, 2018
    #12
  13. Gadget999

    Gadget999 Well-Known Member

    Joined:
    Dec 27, 2015
    Messages:
    1,935
    Location:
    London
    Balance:
    11,838Coins
    Ratings:
    +473 / 9 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino, 6DOF
    Have you contacted them for prices etc ?
    Gadget999, Jul 4, 2018
    #13
  14. SeatTime

    SeatTime Well-Known Member

    Joined:
    Dec 27, 2013
    Messages:
    2,573
    Occupation:
    Retired
    Location:
    Brisbane Australia
    Balance:
    28,370Coins
    Ratings:
    +2,844 / 39 / -0
    My Motion Simulator:
    AC motor, Motion platform
    He is a member of this site ;), was posting here quite often, but may have run into some issues, as he has not posted here for quite some time. Search through the old Commercial threads. Look for 'Universal 6DOF Recessed Simulator'. Edit it's on page two.
    Last edited: Jul 4, 2018
    SeatTime, Jul 4, 2018
    #14
  15. adgun

    adgun Active Member

    Joined:
    Jan 28, 2008
    Messages:
    518
    Occupation:
    mechanic
    Location:
    Netherlands
    Balance:
    5,684Coins
    Ratings:
    +131 / 4 / -0
    If you want to see his site google with insecta tech
    adgun, Jul 5, 2018
    #15
  16. Jerry Atrick

    Jerry Atrick this is my sim Gold Contributor

    Joined:
    May 3, 2017
    Messages:
    141
    Occupation:
    Retired
    Location:
    Sydney Australia
    Balance:
    1,414Coins
    Ratings:
    +44 / 1 / -0
    My Motion Simulator:
    4DOF
    Hi all No prices and No reply:rolleyes:

    Maybe some issues like SeatTime suggested.

    Jerry
    Jerry Atrick, Jul 5, 2018
    #16
  17. SeatTime

    SeatTime Well-Known Member

    Joined:
    Dec 27, 2013
    Messages:
    2,573
    Occupation:
    Retired
    Location:
    Brisbane Australia
    Balance:
    28,370Coins
    Ratings:
    +2,844 / 39 / -0
    My Motion Simulator:
    AC motor, Motion platform
    I remember that for a while he did have pricing for each system on his website. From experience, I know its not easy to bringing a product to market, especially something as complex as this. Just so much that can go wrong.
    • Agree Agree x 1
    SeatTime, Jul 5, 2018
    #17
  18. stargazer

    stargazer Active Member

    Joined:
    Jun 29, 2018
    Messages:
    129
    Occupation:
    Electrical/Computer Engineer
    Location:
    Boston,USA
    Balance:
    811Coins
    Ratings:
    +35 / 0 / -0
    My Motion Simulator:
    3DOF, Arduino, Motion platform, 4DOF
    I have been keeping a Google spread sheet to calculate how much it costs for some of the 6dof project threads on this forum. It made me believe that the bill of material for a typical 6dof sim is not less than 8k US. For a commercial rig to cost just $5500 is easy too good. Would you please provide a link to the product?
    stargazer, Jul 6, 2018
    #18
  19. Jerry Atrick

    Jerry Atrick this is my sim Gold Contributor

    Joined:
    May 3, 2017
    Messages:
    141
    Occupation:
    Retired
    Location:
    Sydney Australia
    Balance:
    1,414Coins
    Ratings:
    +44 / 1 / -0
    My Motion Simulator:
    4DOF
    Hi Stargazer it may be this

    Contact Thanos for reference.

    Jerry
    Jerry Atrick, Jul 6, 2018
    #19
  20. Thanos

    Thanos Building the Future one AC Servo at a time... or 6

    Joined:
    Jul 6, 2017
    Messages:
    1,358
    Occupation:
    Electronics Engineer
    Location:
    United States
    Balance:
    2,773Coins
    Ratings:
    +1,050 / 9 / -0
    My Motion Simulator:
    AC motor, Motion platform, 4DOF, 6DOF
    As I said before this is the factory price. You will still need to export it and ship it, not sure how much is that would be, with the US Tarrifs now in place it could cost 30% up (Servomotors fall into same category as air pumps and generators lol)
    Thanos, Jul 6, 2018
    #20
