My 2DOF with DC motors

Discussion in 'DIY Motion Simulator Projects' started by leaedman, Feb 8, 2015.

Page 1 of 4
  1. leaedman

    leaedman Active Member

    Joined:
    Feb 8, 2015
    Messages:
    99
    Location:
    Valenciennes, France
    Balance:
    470Coins
    Ratings:
    +89 / 1 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    Hi !
    Here is a presentation of my finished simulator.
    I use 2 Smolka 24 V motors, arduino uno card, a sabertooth 2X25et card and a power supply 24V.

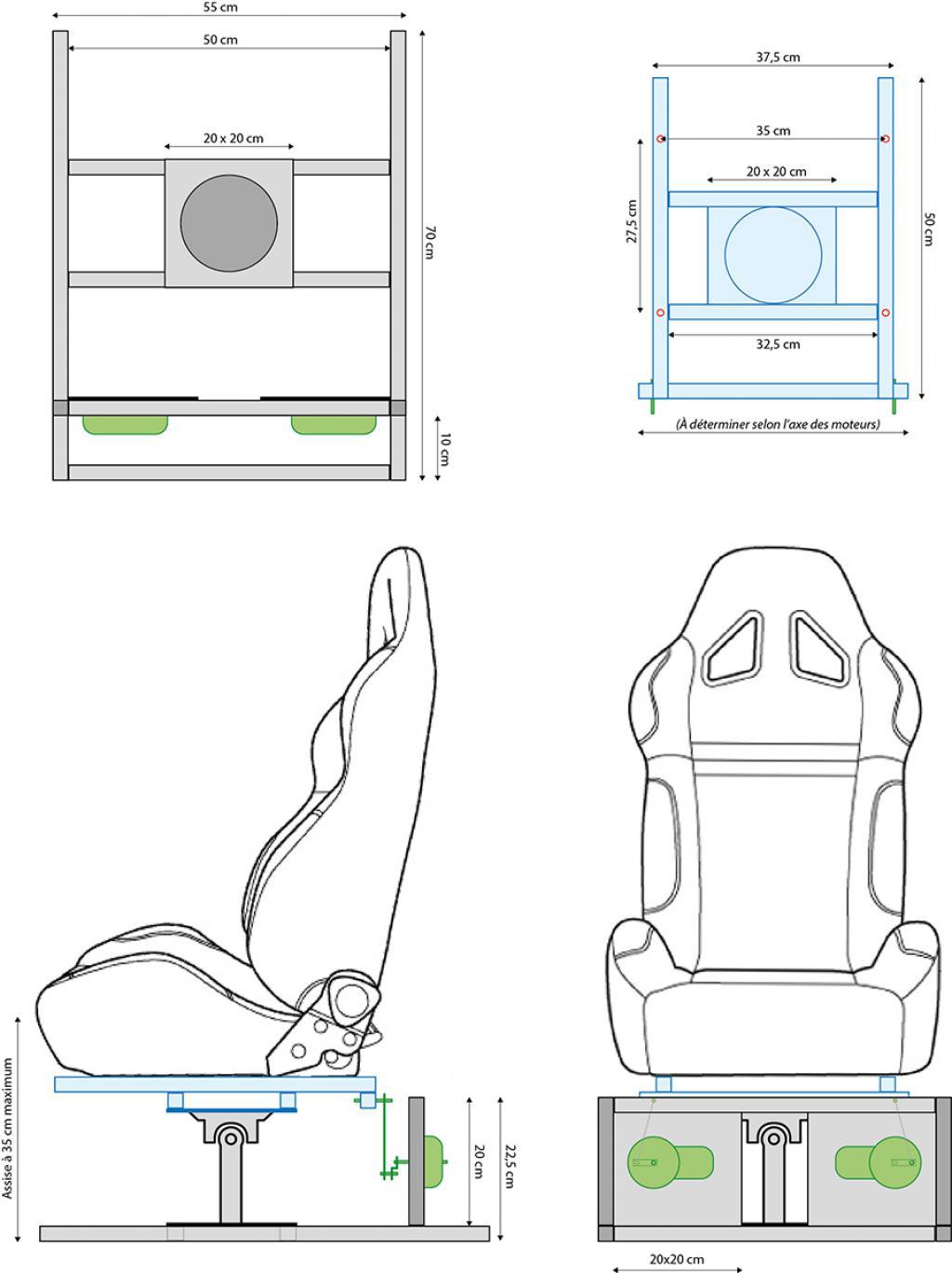

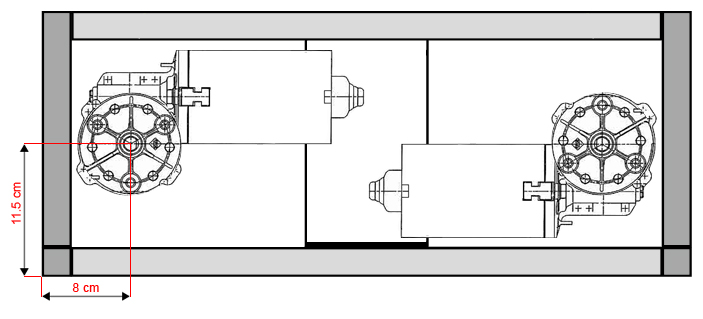

    Here first the patterns that I made to make the simulator :
    [​IMG]

    [​IMG]

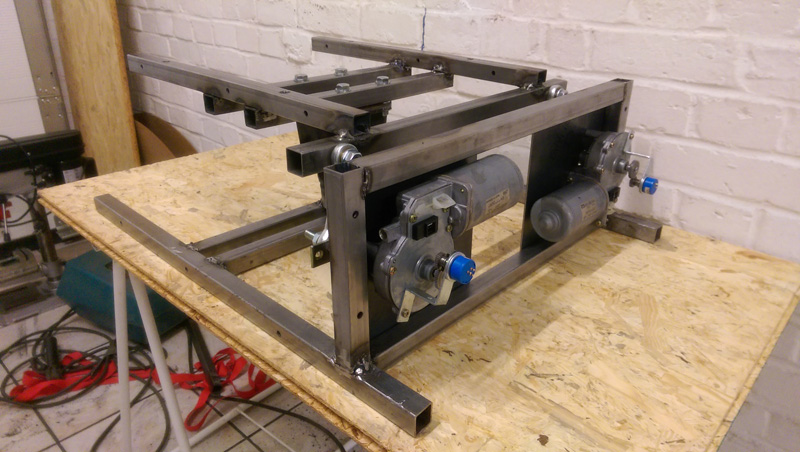

    Here are two images of naked frame after welding :
    [​IMG]

    [​IMG]

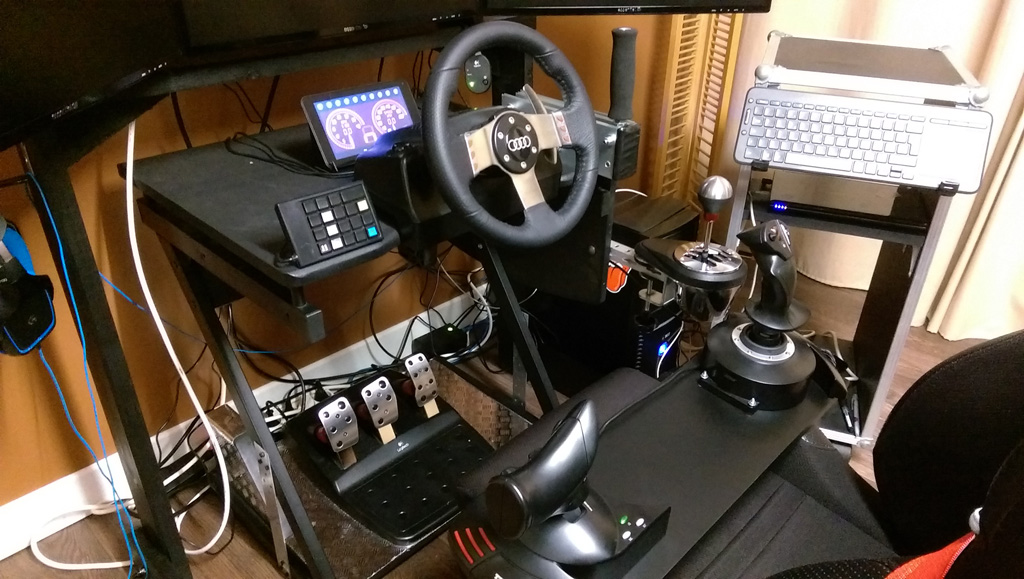

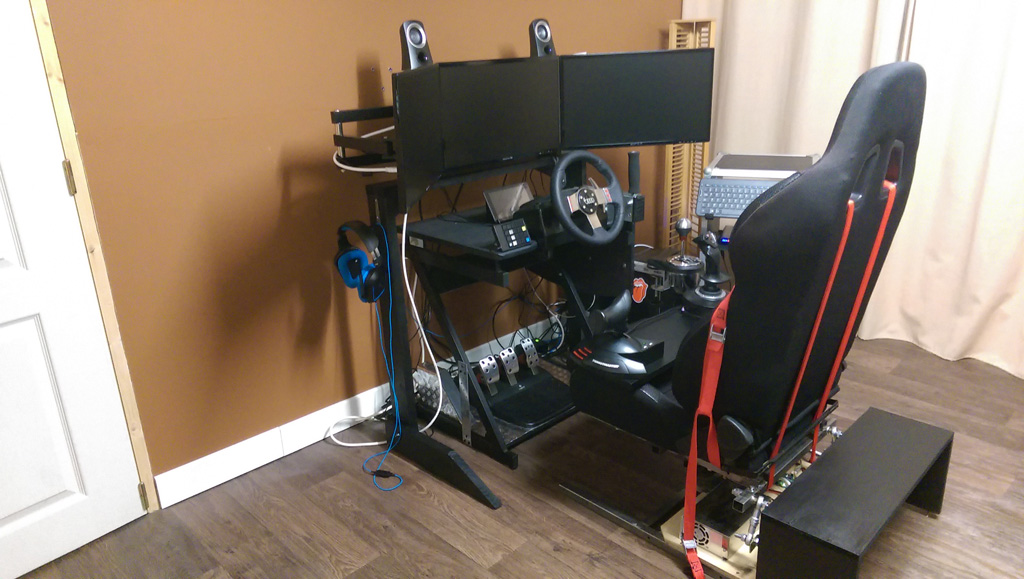

    And here ended:
    [​IMG]

    [​IMG]

    Finally a video I made today to present my project :


    I also realized a sequential shifter DIY I use the Logitech G27 steering wheel but I think it must be presented in another section right?

    Otherwise I currently use X-SIM and wish to pass on SIMTOOLS. I course so the forum to understand its operation.

    Thank you :)
    • Like Like x 12
    • Winner Winner x 1
    leaedman, Feb 8, 2015
    #1
  2. michto35

    michto35 Member

    Joined:
    Jan 31, 2014
    Messages:
    97
    Location:
    france
    Balance:
    102Coins
    Ratings:
    +52 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    nice job,me too i spend XSIM to simtools and I do not regret at all.
    soon on the road
    michto35, Feb 8, 2015
    #2
  3. leaedman

    leaedman Active Member

    Joined:
    Feb 8, 2015
    Messages:
    99
    Location:
    Valenciennes, France
    Balance:
    470Coins
    Ratings:
    +89 / 1 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    Thank you michto35 !
    ___________________
    Merci michto35 !
    leaedman, Feb 8, 2015
    #3
  4. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    21,034
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    147,902Coins
    Ratings:
    +10,880 / 54 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    Nice job @leaedman, thanks for sharing the photos and video.

    You will find all the code and resources on Xsimulator you need to run your rig with SimTools, plus plenty of help from community members. So do post a query if you have any questions.
    noorbeast, Feb 9, 2015
    #4
  5. leaedman

    leaedman Active Member

    Joined:
    Feb 8, 2015
    Messages:
    99
    Location:
    Valenciennes, France
    Balance:
    470Coins
    Ratings:
    +89 / 1 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    Thank you for your compliments noorbeast :cheers
    Simtools seems easier to use. My only problem is the English language. Happily there google translate :D
    leaedman, Feb 9, 2015
    #5
  6. Wanegain

    Wanegain Active Member

    Joined:
    Nov 6, 2013
    Messages:
    564
    Location:
    Bruxelles
    Balance:
    1,971Coins
    Ratings:
    +298 / 2 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 4DOF
    Very nice project ! It's very clean, I like it !!

    Can you give please more details about your DIY shifter ?
    Wanegain, Feb 9, 2015
    #6
  7. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    21,034
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    147,902Coins
    Ratings:
    +10,880 / 54 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    SimTools is pretty easy to use and there is good documentation.

    Some people post in their native language plus google translate, if they are not sure if something important is clear. Often there is a member who is also fluent in both languages and can clarify if needed.
    • Agree Agree x 1
    noorbeast, Feb 9, 2015
    #7
  8. Wanegain

    Wanegain Active Member

    Joined:
    Nov 6, 2013
    Messages:
    564
    Location:
    Bruxelles
    Balance:
    1,971Coins
    Ratings:
    +298 / 2 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 4DOF
    I am working with him to help him to setup SimTools.

    I sent him my Arduino code (I am adding this resource :p). It seems that he need few coins to download some plugins :rolleyes:
    • Like Like x 1
    Wanegain, Feb 9, 2015
    #8
  9. prodigy

    prodigy Burning revs

    Joined:
    Oct 27, 2013
    Messages:
    459
    Location:
    Croatia
    Balance:
    6,698Coins
    Ratings:
    +399 / 4 / -0
    My Motion Simulator:
    2DOF, 3DOF, AC motor, SCN5, JRK
    Very nice, clean, pedantic and moves nice as well :thumbs
    prodigy, Feb 9, 2015
    #9
  10. leaedman

    leaedman Active Member

    Joined:
    Feb 8, 2015
    Messages:
    99
    Location:
    Valenciennes, France
    Balance:
    470Coins
    Ratings:
    +89 / 1 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    Ok, I'll do well (D'accord, je vais faire comme cela) thanks :)

    thank you for your help Wanegain, no problem for the shifter but I do not know if I can show here or if you have to open a new thread? (Merci pour ton aide Wanegain, pas de problème pour le shifter mais je ne sais pas si je peux montrer ici ou si il faut ouvrir un nouveau sujet ?)

    ... And Thank you prodige :D
    leaedman, Feb 9, 2015
    #10
  11. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    21,034
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    147,902Coins
    Ratings:
    +10,880 / 54 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    @leaedman you have enough coins now to access plugins. I am looking forward to seeing how your rig goes with SimTools.
    • Like Like x 1
    • Friendly Friendly x 1
    noorbeast, Feb 9, 2015
    #11
  12. leaedman

    leaedman Active Member

    Joined:
    Feb 8, 2015
    Messages:
    99
    Location:
    Valenciennes, France
    Balance:
    470Coins
    Ratings:
    +89 / 1 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    wouuhhaaaaa :eek: !!!! Thank you very very much noorbeast :cheers
    leaedman, Feb 9, 2015
    #12
  13. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    21,034
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    147,902Coins
    Ratings:
    +10,880 / 54 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    My pleasure @leaedman, I am sure many of us are keen to help you get started with SimTools and look forward to your impressions.
    • Agree Agree x 1
    noorbeast, Feb 9, 2015
    #13
  14. Wanegain

    Wanegain Active Member

    Joined:
    Nov 6, 2013
    Messages:
    564
    Location:
    Bruxelles
    Balance:
    1,971Coins
    Ratings:
    +298 / 2 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 4DOF
    I know he's a player of Elite Dangerous, he'll be glued on his seat :thumbs:D
    Wanegain, Feb 9, 2015
    #14
  15. leaedman

    leaedman Active Member

    Joined:
    Feb 8, 2015
    Messages:
    99
    Location:
    Valenciennes, France
    Balance:
    470Coins
    Ratings:
    +89 / 1 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    Yes !! Elite Dangerous and assetto Corsa mainly :thumbs (but also RaceRoom and future Project Cars :D)
    leaedman, Feb 9, 2015
    #15
  16. RacingMat

    RacingMat Well-Known Member Gold Contributor

    Joined:
    Feb 22, 2013
    Messages:
    2,236
    Location:
    Marseille - FRANCE
    Balance:
    20,962Coins
    Ratings:
    +2,089 / 21 / -2
    My Motion Simulator:
    2DOF, DC motor, Arduino
    Bravo! Champagne!

    (it's the same in english than in french ;))
    (c'est pareil en français et en anglais ;))
    RacingMat, Feb 9, 2015
    #16
  17. leaedman

    leaedman Active Member

    Joined:
    Feb 8, 2015
    Messages:
    99
    Location:
    Valenciennes, France
    Balance:
    470Coins
    Ratings:
    +89 / 1 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    Thank you RacingMat, You're one of the people who inspired me the most for my project initially. :)
    Then I learned about the French forum PCSHM.
    (Tu es l'une des personnes qui m'a le plus inspiré pour mon projet au départ, J'ai ensuite tout appris sur le forum français PCSHM)
    leaedman, Feb 9, 2015
    #17
  18. leaedman

    leaedman Active Member

    Joined:
    Feb 8, 2015
    Messages:
    99
    Location:
    Valenciennes, France
    Balance:
    470Coins
    Ratings:
    +89 / 1 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    Good news, the simulator works with SIMTOOLS. I still have to make adjustments on the effects but it works :thumbs
    I tested with ELITE DANGEROUS and ASSETTO CORSA. However, I have not managed to run CityCarDriving for my children. I'll post a video with Elite :D

    SIMTOOLS is really easy, it's great! :cheers

    (Bonne nouvelle, le simulateur fonctionne avec SIMTOOLS. Il me reste à faire des réglages sur les effets mais ça fonctionne. J'ai testé avec Elite Dangerous et Assetto Corsa. cependant je n'ai pas réussi à faire fonctionner CityCarDriving pour mes enfants. Je posterai une vidéo avec Elite.
    SIMTOOLS est vraiment facile, c'est formidable !)
    • Like Like x 1
    • Agree Agree x 1
    leaedman, Feb 10, 2015
    #18
  19. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    21,034
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    147,902Coins
    Ratings:
    +10,880 / 54 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    Well done @leaedman :thumbs

    I have to agree, SimTools is great!
    noorbeast, Feb 10, 2015
    #19
  20. Wanegain

    Wanegain Active Member

    Joined:
    Nov 6, 2013
    Messages:
    564
    Location:
    Bruxelles
    Balance:
    1,971Coins
    Ratings:
    +298 / 2 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 4DOF
    And... Where is the video ?? :p
    Wanegain, Feb 11, 2015
    #20
Page 1 of 4
