Need help arduino+monster moto shield

Discussion in 'DIY Motion Simulator Building Q&A / FAQ' started by cedrict25, Dec 19, 2015.

  1. cedrict25

    cedrict25 New Member

    Joined:
    Dec 18, 2015
    Messages:
    7
    Occupation:
    musique electro
    Location:
    toulouse
    Balance:
    326Coins
    Ratings:
    +3 / 1 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    hi,
    This is my first attempt to build a 2dof with two 12v DCmotors and an arduino +monster moto shield (everything was build in china)
    I don't find any code to insert inside the arduino to control the motors.
    I put the moto shield above the arduino, put the 12V (from external pc alim) to the moto shield and when i try to put arduino code,nothing happened.
    If someone have any idee.
    Thanks
    cedrict25, Dec 19, 2015
    #1
  2. SilentChill

    SilentChill Problem Maker

    Joined:
    Jul 19, 2014
    Messages:
    2,643
    Occupation:
    Railway Maintenance
    Location:
    Morecambe, Lancashire, England
    Balance:
    20,560Coins
    Ratings:
    +3,488 / 34 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 6DOF
    I would go and have a look at the FAQ section on this site you will find everything you need to know.
    • Agree Agree x 1
    SilentChill, Dec 19, 2015
    #2
  3. cedrict25

    cedrict25 New Member

    Joined:
    Dec 18, 2015
    Messages:
    7
    Occupation:
    musique electro
    Location:
    toulouse
    Balance:
    326Coins
    Ratings:
    +3 / 1 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    Ok but i alredy try but no really information about the duo: arduino-monster moto shield
    • Disagree Disagree x 1
    cedrict25, Dec 19, 2015
    #3
  4. Jun

    Jun New Member

    Joined:
    Sep 2, 2015
    Messages:
    27
    Location:
    South America
    Balance:
    7,047Coins
    Ratings:
    +33 / 1 / -0
    Jun, Dec 19, 2015
    #4
  5. Linkup

    Linkup Member

    Joined:
    Aug 27, 2015
    Messages:
    70
    Occupation:
    Graphic Designer
    Location:
    Sweden
    Balance:
    855Coins
    Ratings:
    +27 / 0 / -0
    Who code are you using? Have you tested the arduino with something else to make sure it's working. Post pictures of how you set it up.
    Linkup, Dec 19, 2015
    #5
  6. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    21,149
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    148,590Coins
    Ratings:
    +10,907 / 54 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    You do need to put in a bit of effort to help yourself when given good advice, such as @SilentChill gave.

    FAQs for Arduino: http://www.xsimulator.net/community/faq/arduino.6/category

    FAQs for Motor Monster: http://www.xsimulator.net/community/faq/motor-driver-for-arduino-compatible-controller.11/category

    Arduino code to get you started: http://www.xsimulator.net/community/faq/arduino-code-for-use-with-various-hardware-and-simtools.31/

    MM newbie information: http://www.xsimulator.net/community/faq/beginners-please-read-first.135/

    Factory faults with recent cheap Chinese MMs: http://www.xsimulator.net/community/faq/reputable-monster-moto-suppliers-testing-before-use.158/

    3 choices in how an Arduino and MM can be configured, depending on how much power needs to be handled:

    http://www.xsimulator.net/community/faq/monster-moto-shield-as-a-single-motor-driver.101/

    http://www.xsimulator.net/community...-30a-current-60a-peak-for-200-300w-motors.50/

    http://www.xsimulator.net/community...60a-current-120a-peak-for-600-800w-motors.51/
    • Like Like x 4
    • Agree Agree x 1
    • Informative Informative x 1
    Last edited: Dec 19, 2015
    noorbeast, Dec 19, 2015
    #6
  7. SilentChill

    SilentChill Problem Maker

    Joined:
    Jul 19, 2014
    Messages:
    2,643
    Occupation:
    Railway Maintenance
    Location:
    Morecambe, Lancashire, England
    Balance:
    20,560Coins
    Ratings:
    +3,488 / 34 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 6DOF
    You have the pacience of a saint @noorbeast lol some people ......
    • Funny Funny x 3
    • Agree Agree x 2
    • Friendly Friendly x 1
    SilentChill, Dec 19, 2015
    #7
  8. Pit

    Pit - - - - - - - - - - - - - - - - Gold Contributor

    Joined:
    Oct 2, 2013
    Messages:
    3,012
    Location:
    Switzerland
    Balance:
    30,451Coins
    Ratings:
    +3,091 / 31 / -0
    My Motion Simulator:
    DC motor, Arduino, 6DOF
    Please look at my signature:
    There’s no harm in asking but I am not waiting on hand and foot
    • Like Like x 1
    Pit, Dec 20, 2015
    #8
  9. cedrict25

    cedrict25 New Member

    Joined:
    Dec 18, 2015
    Messages:
    7
    Occupation:
    musique electro
    Location:
    toulouse
    Balance:
    326Coins
    Ratings:
    +3 / 1 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    Thank you everyone and specialy noorbeast .I'll try again whith the links you gave me.
    And sorry for those who can't understand that this is not easy to start an arduino programmation when you're novice in.(and english is not my maternel language)
    Thanks
    • Like Like x 1
    • Agree Agree x 1
    cedrict25, Dec 20, 2015
    #9
  10. haroldjames

    haroldjames Active Member Gold Contributor

    Joined:
    Dec 8, 2014
    Messages:
    115
    Occupation:
    Electronic Tech
    Location:
    Ontario Canada
    Balance:
    - 398Coins
    Ratings:
    +54 / 2 / -0
    My Motion Simulator:
    3DOF, SCN5, SCN6
    Good luck with your project. You will find that it will come to you a step at a time. Take your time to read and understand. Also a little trial and error never hurt anyone. :)
    haroldjames, Dec 22, 2015
    #10
  11. cedrict25

    cedrict25 New Member

    Joined:
    Dec 18, 2015
    Messages:
    7
    Occupation:
    musique electro
    Location:
    toulouse
    Balance:
    326Coins
    Ratings:
    +3 / 1 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    Thank you and your right,i will go one step a the time .
    I got all my time.
    cedrict25, Dec 22, 2015
    #11
  12. kimballfount

    kimballfount Member

    Joined:
    Oct 12, 2015
    Messages:
    88
    Location:
    greer,sc
    Balance:
    879Coins
    Ratings:
    +15 / 3 / -0
    My Motion Simulator:
    2DOF, Arduino

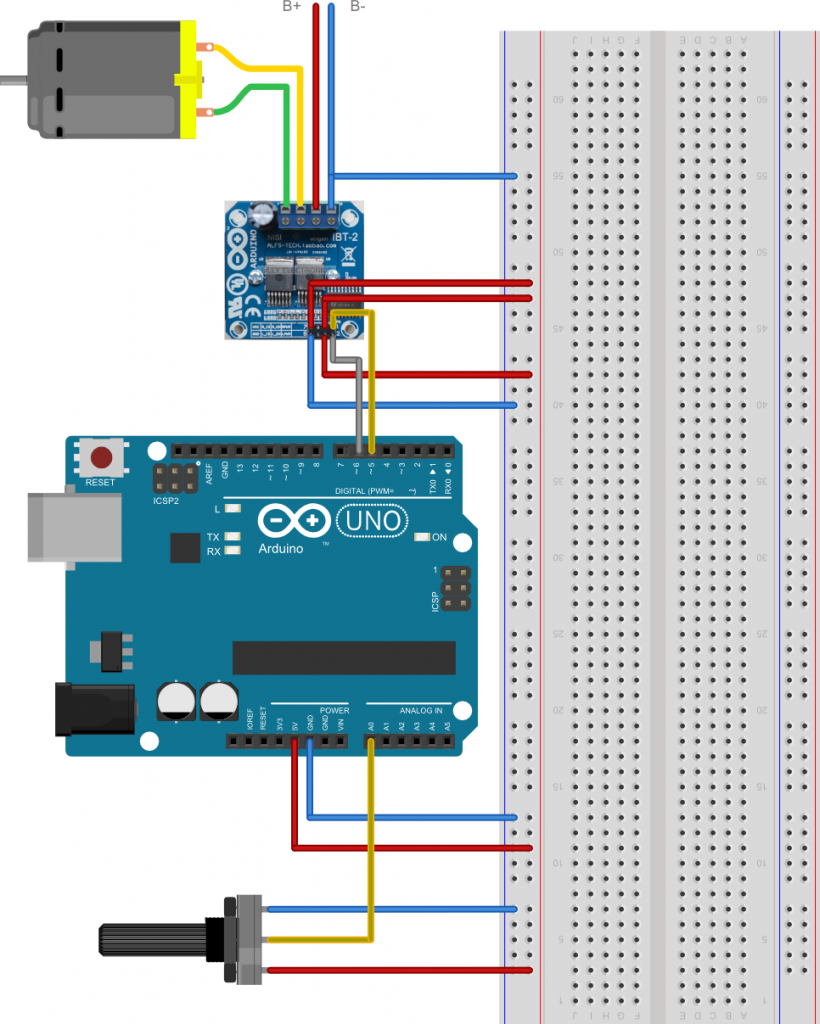

    I have a quick question for you guys. I have everything wired up as shown in this simple lbt-2 hbridge diagram. I ran the arduino sketch for "controlling an Lbt-2 hbridge with a potentiometer" and everything worked great to my surprise. Is there a way I can use this exact wiring to work with simtools? IBT-2-with-Arduino_bb-820x1024.png
    kimballfount, Jan 6, 2016
    #12
  13. Pit

    Pit - - - - - - - - - - - - - - - - Gold Contributor

    Joined:
    Oct 2, 2013
    Messages:
    3,012
    Location:
    Switzerland
    Balance:
    30,451Coins
    Ratings:
    +3,091 / 31 / -0
    My Motion Simulator:
    DC motor, Arduino, 6DOF
    hi
    In the FAQ section you will find any information on Arduino codes to control SimTools. One code which supports your bridge is the SMC3 sketch.
    • Agree Agree x 1
    Pit, Jan 6, 2016
    #13
