New issues 2DOF PWM AMC v1.5 board

Discussion in 'DIY Motion Simulator Building Q&A / FAQ' started by 741852cp, Nov 28, 2010.

  1. 741852cp

    741852cp Member

    Joined:
    Nov 21, 2010
    Messages:
    62
    Location:
    china
    Balance:
    106Coins
    Ratings:
    +9 / 0 / -0
    My Motion Simulator:
    2DOF, AC motor
    New issues 2DOF PWM AMC v1.5 board
    Thank you friends in the technical aspects of forum support and contributions, I really like your doing.

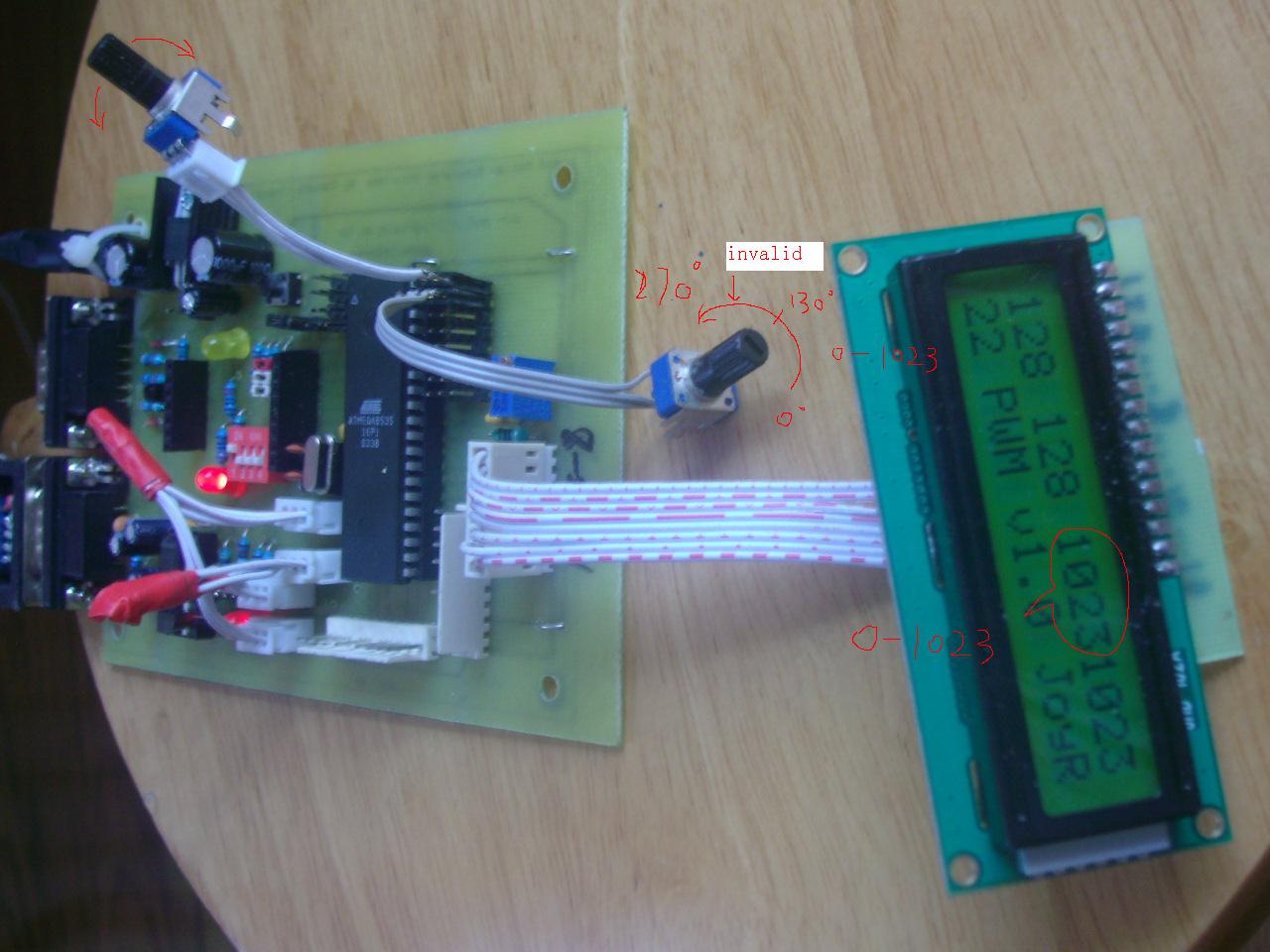

    Last week I made a 2DOF PWM AMC v1.5 board as shown in Figure:
    Have questions, please guide
    1. Potentiometer travel about 0-130 ° degrees 270 degrees display data led 0-1023
    130-270 degrees is invalid. Is that correct?
    2. Potentiometers used in the device full (270 °) or 0-130 °?
    Requested an expert to answer Thank you!

    Attached Files:

    • 77.JPG
      File size:
      116.1 KB
      Views:
      610
    741852cp, Nov 28, 2010
    #1
  2. Asus-G51JX-3D

    Asus-G51JX-3D Member

    Joined:
    Oct 25, 2010
    Messages:
    44
    Balance:
    - 69Coins
    Ratings:
    +0 / 0 / -0
    My Motion Simulator:
    2DOF, 4DOF
    :)

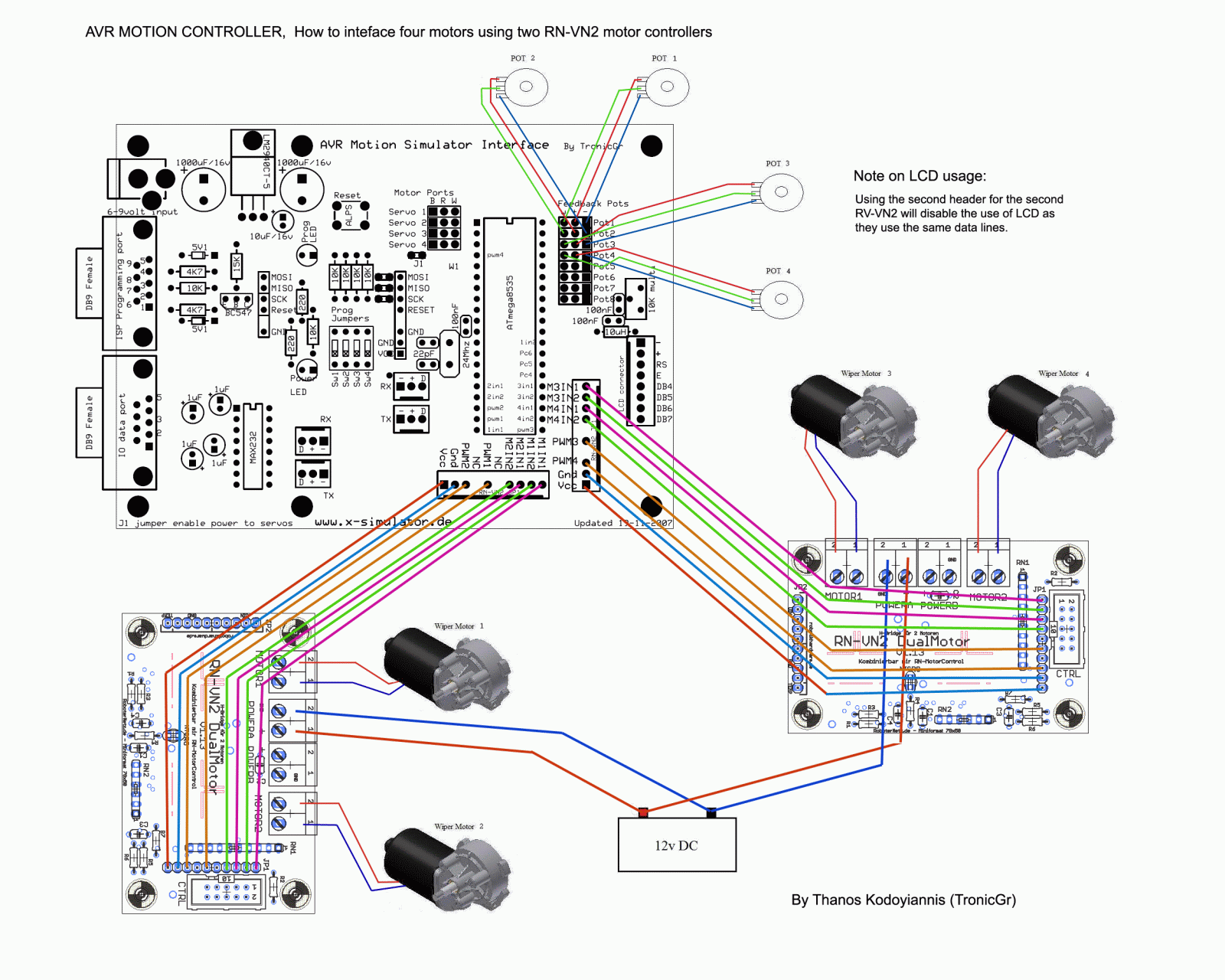

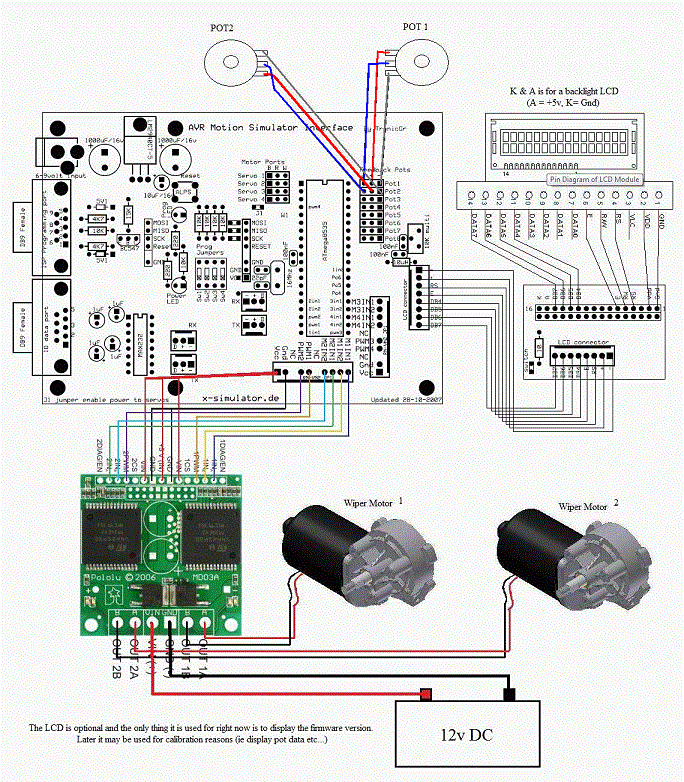

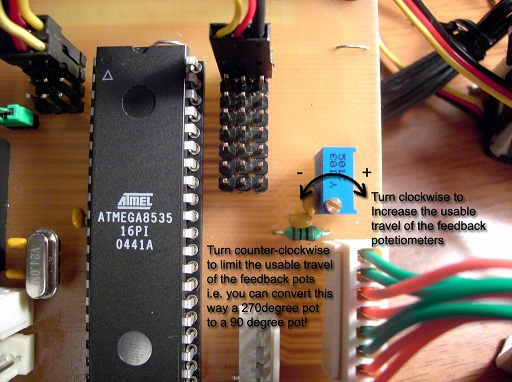

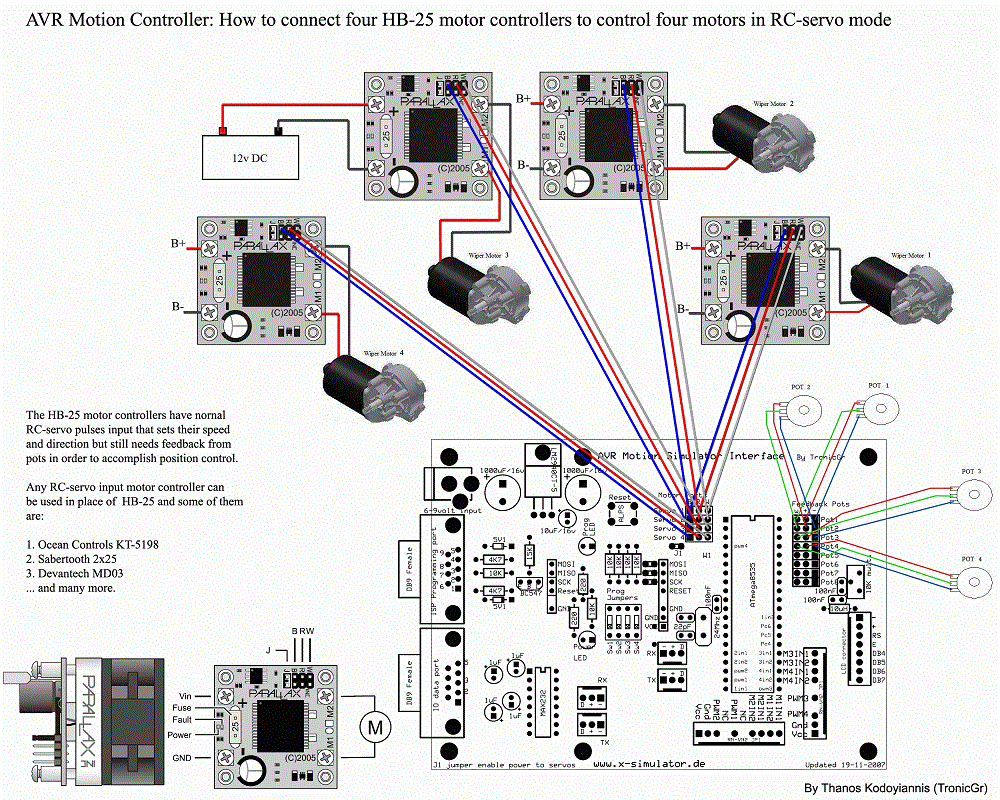

    Attached Files:

    Asus-G51JX-3D, Nov 28, 2010
    #2
  3. 741852cp

    741852cp Member

    Joined:
    Nov 21, 2010
    Messages:
    62
    Location:
    china
    Balance:
    106Coins
    Ratings:
    +9 / 0 / -0
    My Motion Simulator:
    2DOF, AC motor
    Thank you very much, fast answer! ! You let me solve the problem, to understand everything
    741852cp, Nov 28, 2010
    #3
  4. Asus-G51JX-3D

    Asus-G51JX-3D Member

    Joined:
    Oct 25, 2010
    Messages:
    44
    Balance:
    - 69Coins
    Ratings:
    +0 / 0 / -0
    My Motion Simulator:
    2DOF, 4DOF
    no problem and have fun here in the forum


    100_Schilder__welcome
    Asus-G51JX-3D, Nov 28, 2010
    #4
  5. 741852cp

    741852cp Member

    Joined:
    Nov 21, 2010
    Messages:
    62
    Location:
    china
    Balance:
    106Coins
    Ratings:
    +9 / 0 / -0
    My Motion Simulator:
    2DOF, AC motor

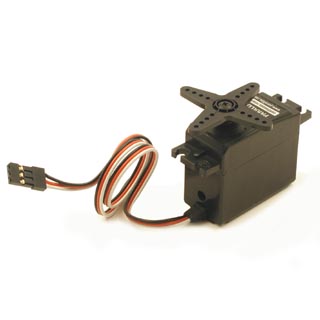

    In your answer, I see two interfaces (figure), what is its role?
