Simulator Help needed

Discussion in 'DIY Motion Simulator Building Q&A / FAQ' started by monicamary, Feb 15, 2015.

  1. monicamary

    monicamary Member

    Joined:
    Aug 21, 2014
    Messages:
    49
    Balance:
    299Coins
    Ratings:
    +11 / 0 / -0
    Hi, I just received my monster moto shield and have wired up my sim according to RacingMatt's tutorial. However, whenever I power it, the motors just turn until they reach the end of the pot. At this stage, my pot saving system kicks in and the gear on the pot shaft slips. The motors continue to turn. The monster moto gets very hot. I have loaded RacingMatt's basic Simtools preset. The motors do not respond at all when I attempt to move them from within Simtools.
    Any help would be appreciated as I cannot figure out what's wrong.
    monicamary, Feb 15, 2015
    #1
  2. value1

    value1 Nerd SimAxe Beta Tester SimTools Developer Gold Contributor

    Joined:
    Jan 9, 2011
    Messages:
    2,184
    Location:
    Zug, Switzerland
    Balance:
    14,750Coins
    Ratings:
    +3,322 / 11 / -1
    My Motion Simulator:
    2DOF, DC motor, JRK, Joyrider
    @monicamary: You increase your chance for sensible help and a reply by adding pictures…
    • Agree Agree x 1
    value1, Feb 15, 2015
    #2
  3. monicamary

    monicamary Member

    Joined:
    Aug 21, 2014
    Messages:
    49
    Balance:
    299Coins
    Ratings:
    +11 / 0 / -0
    Sure, here are a few of the wiring and the gear system for the pots.
    The wiring is as follows:
    arduino Monster Moto
    A0 ---------------> AnalogIn0
    A1 --------------> AnalogIn1
    A2 --------------> AnalogIn 2
    A3 --------------> AnalogIn3
    4 -------------> 4
    5 ---------------> 5
    6 ---------------> 6
    7 ---------------> 7
    8 ---------------> 8
    9 --------------> 9
    GND --------------> GND
    5V ---------------> 5V
    A4 ------> Pot Right
    A5 ------> Pot Left
    The black wires go to the 12V battery. The left motor is connected to A1 and B1. The right motor is connected to A2 and B2 on the monster moto. The motors are the white wires.

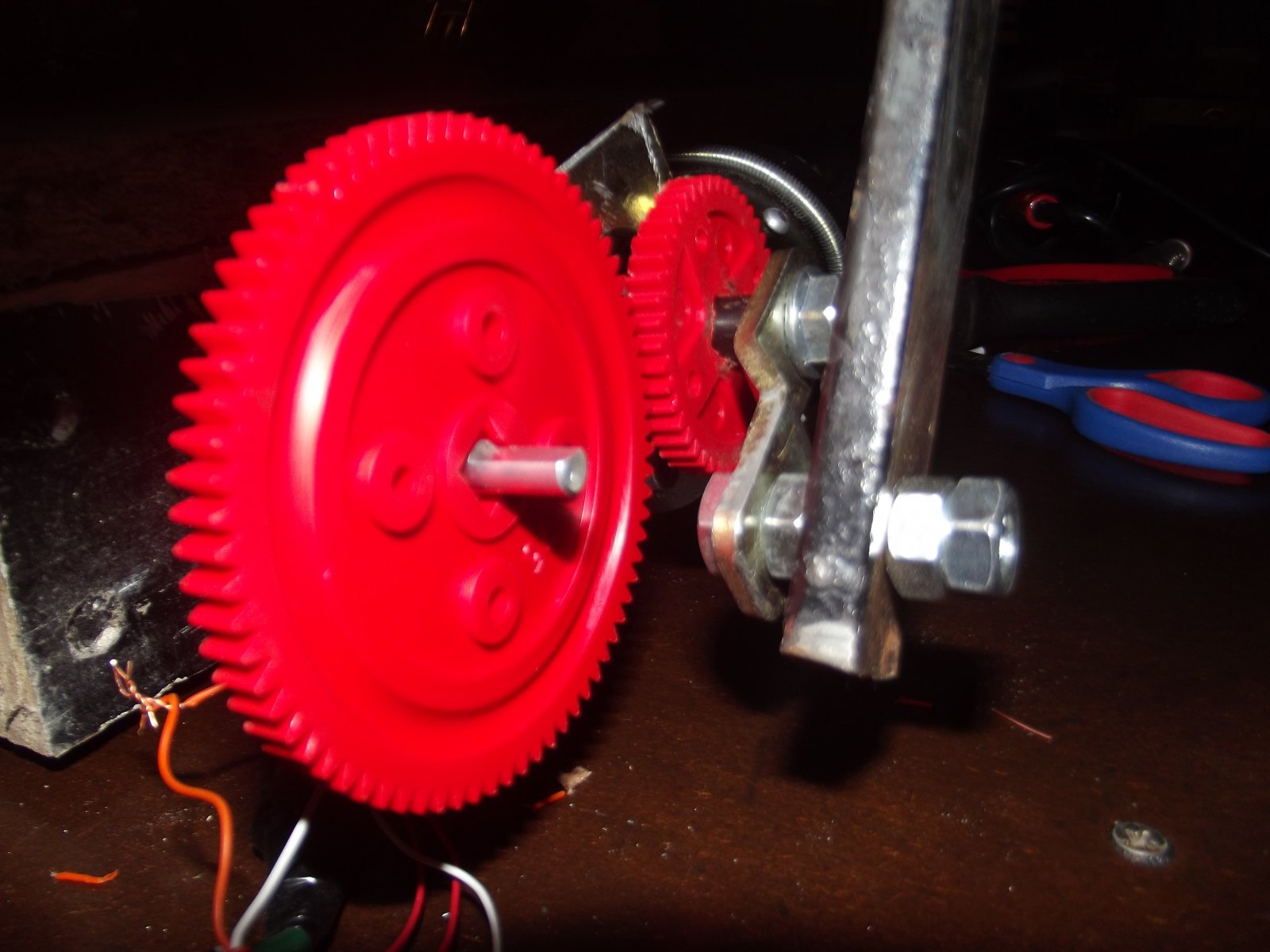

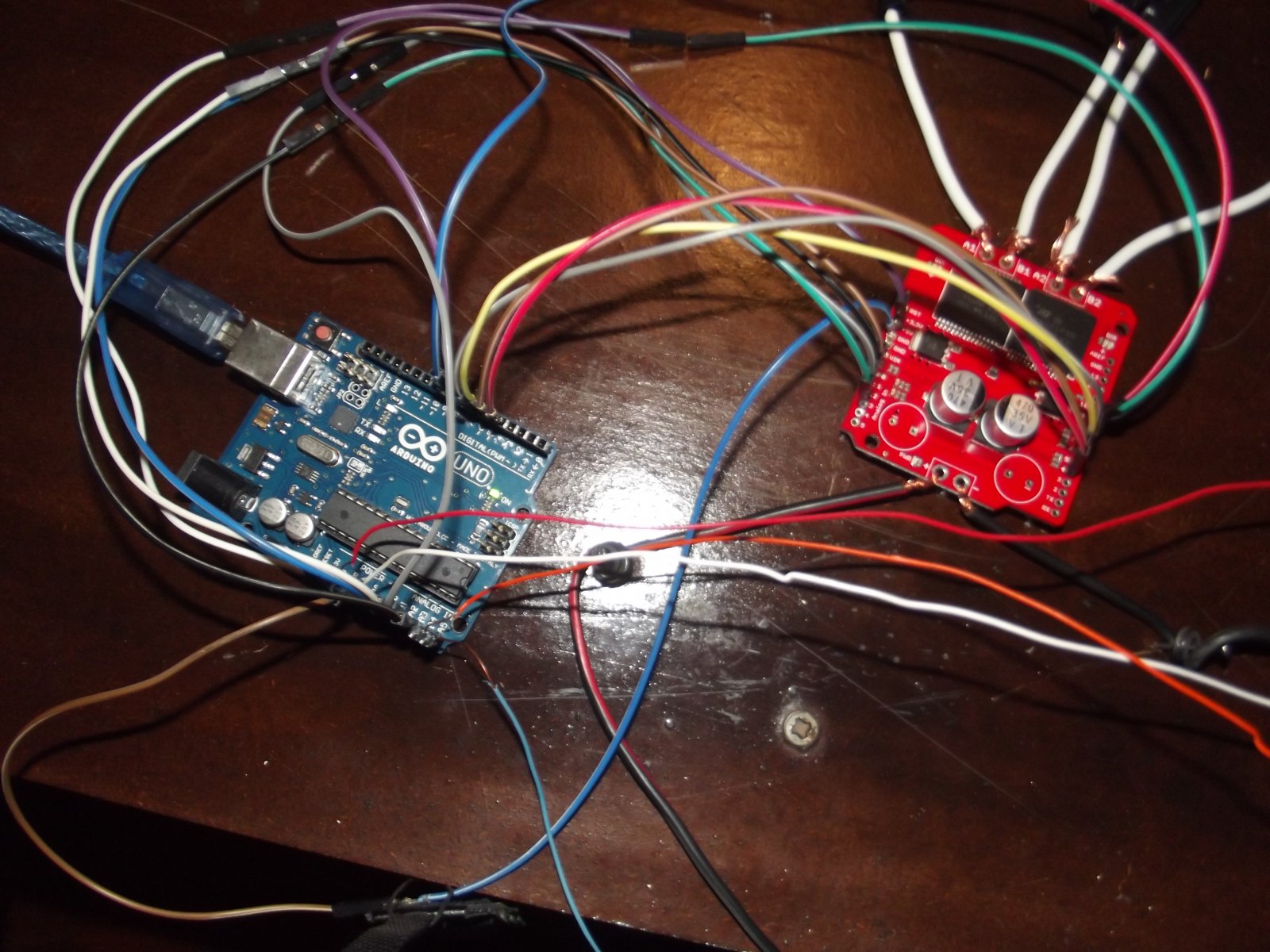

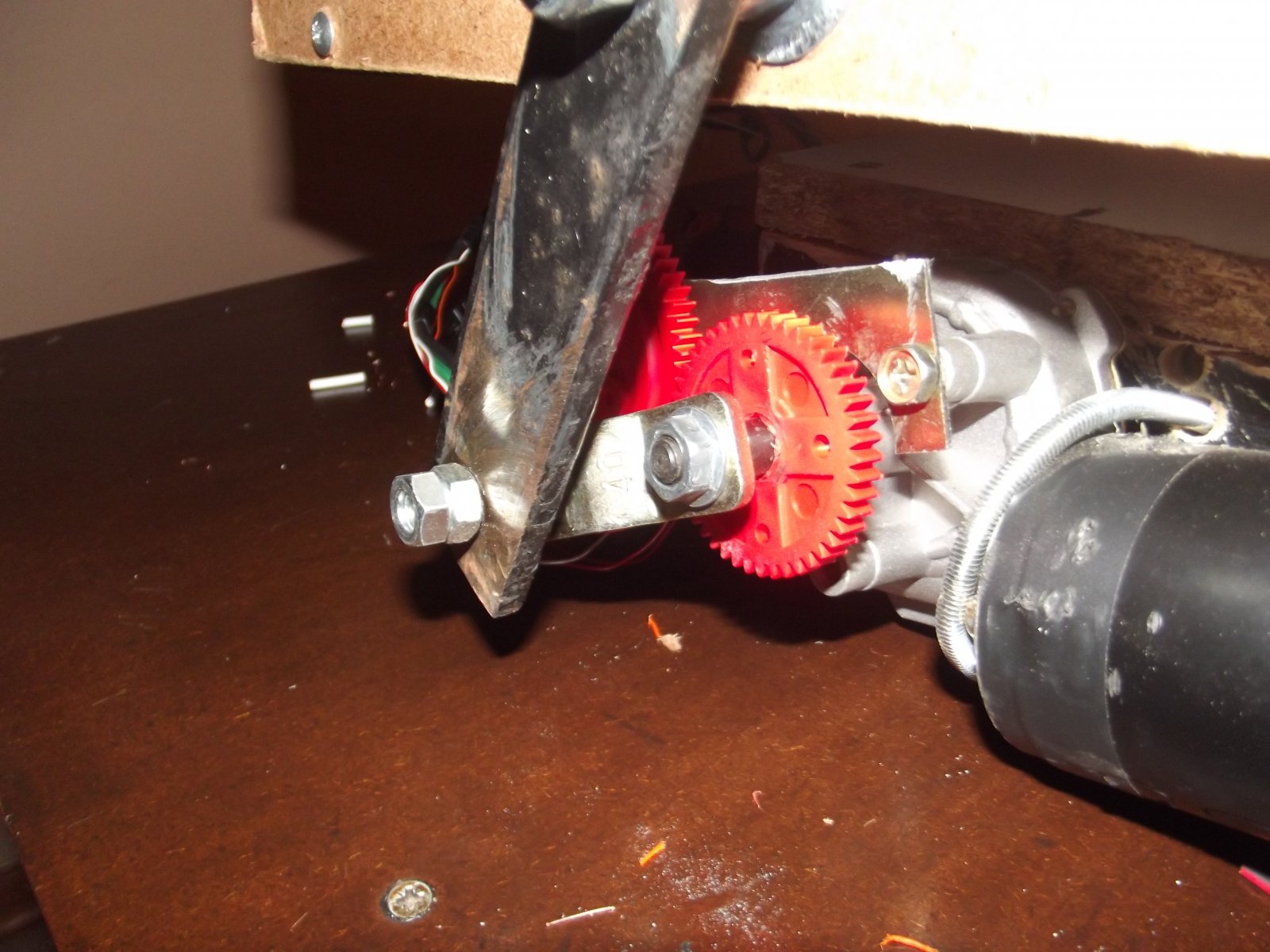

    DSCF2198.JPG DSCF2202.JPG DSCF2204.JPG
    monicamary, Feb 15, 2015
    #3
  4. Daguru

    Daguru Rally drivers do it in the Dirt

    Joined:
    Sep 4, 2013
    Messages:
    719
    Occupation:
    Kitchen installer
    Location:
    Wales uk
    Balance:
    453Coins
    Ratings:
    +632 / 1 / -0
    My Motion Simulator:
    Motion platform
    I would get some heat sinks on that monster moto if I were you.
    Daguru, Feb 15, 2015
