The Build of a 2DOF system / Wheel and pedals

Discussion in 'DIY Motion Simulator Projects' started by Jeroen1278, Dec 31, 2020.

Tags:
  1. Jeroen1278

    Jeroen1278 New Member

    Joined:
    Dec 30, 2020
    Messages:
    3
    Balance:
    6Coins
    Ratings:
    +2 / 0 / -0
    My Motion Simulator:
    2DOF
    Hi there,

    I am starting to build my own sim rig, because there is much more information available to do it yourself.

    I played racing games since i was young. And because simracing is now very booming i was thinking to taking it to a next level. (And becuase my old wheel died).

    I like to build stuff myself for multiple reasons; I like to learn thinks, I like to build things, and for me it is a (cheap) way to make things.

    Some unrelated projects that i made: Jeroen1278 - YouTube
    So i started out with the search if someone made a arduino based force feedback wheel.
    I ended up copying this project: Tutorial Steering Wheel with Arduino Leonardo | KASKUS
    The setup is still in mockup fase.

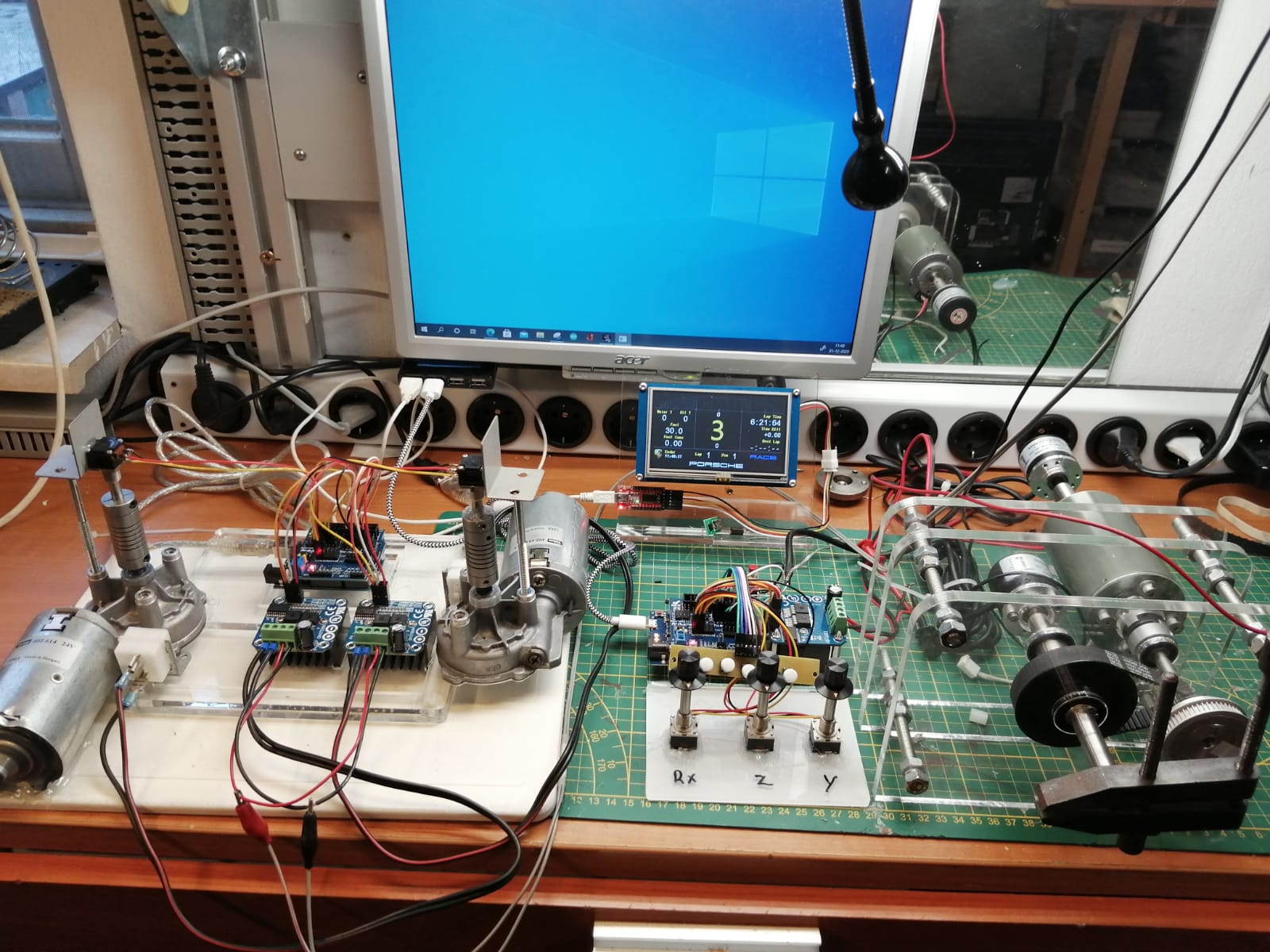

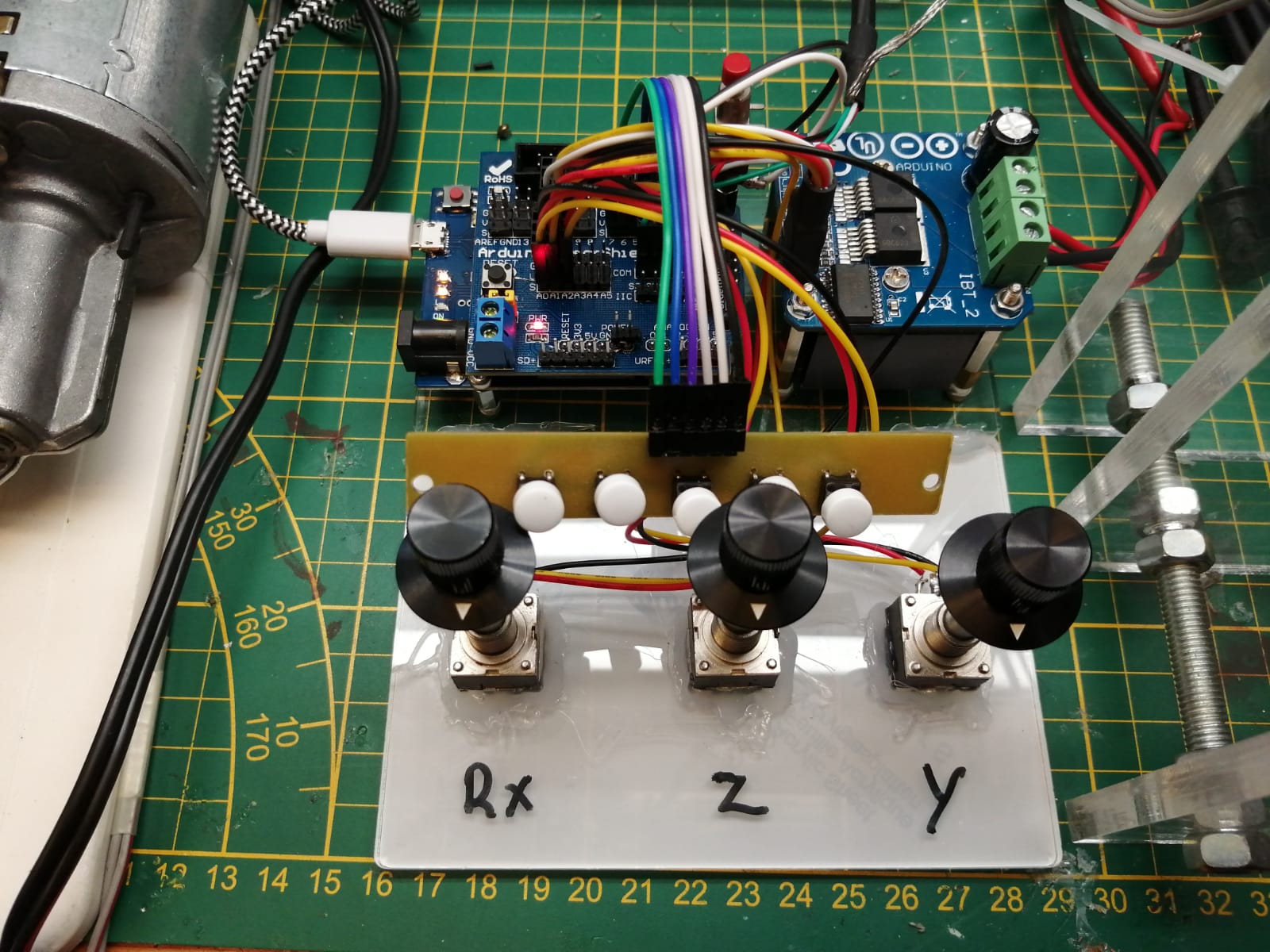

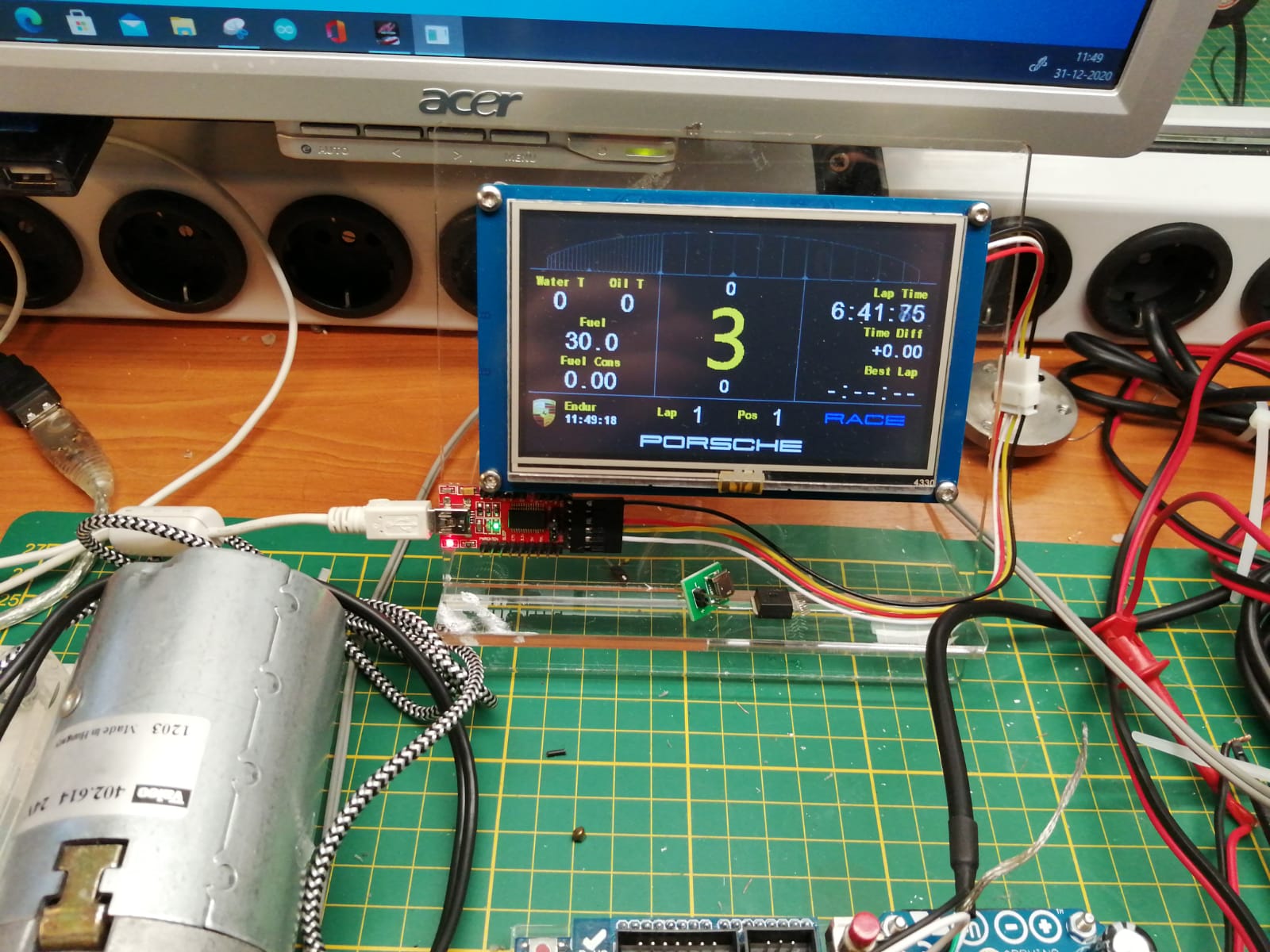

    WhatsApp Image 2020-12-31 at 12.39.01.jpeg WhatsApp Image 2020-12-31 at 12.39.09.jpeg WhatsApp Image 2020-12-31 at 12.38.54.jpeg
    And then i was thinking, well if i gone a make a rig then it has to move.
    So i googeld and landed here, Tutorial - SMC3 Arduino 3DOF Motor Driver and Windows Utilities (xsimulator.net).So thank you so much for doing al the hard work.

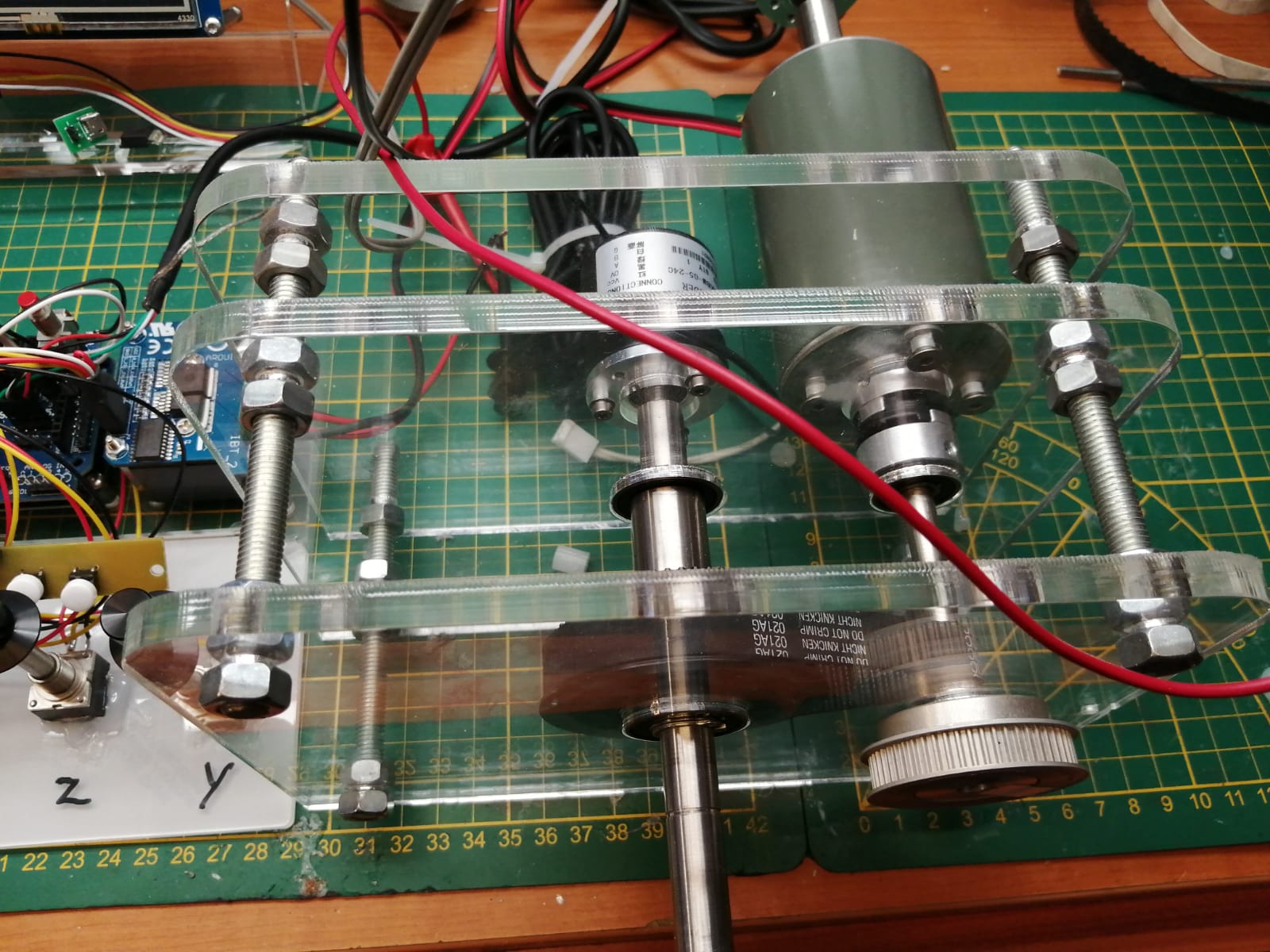

    My setup is still in mockup fase.

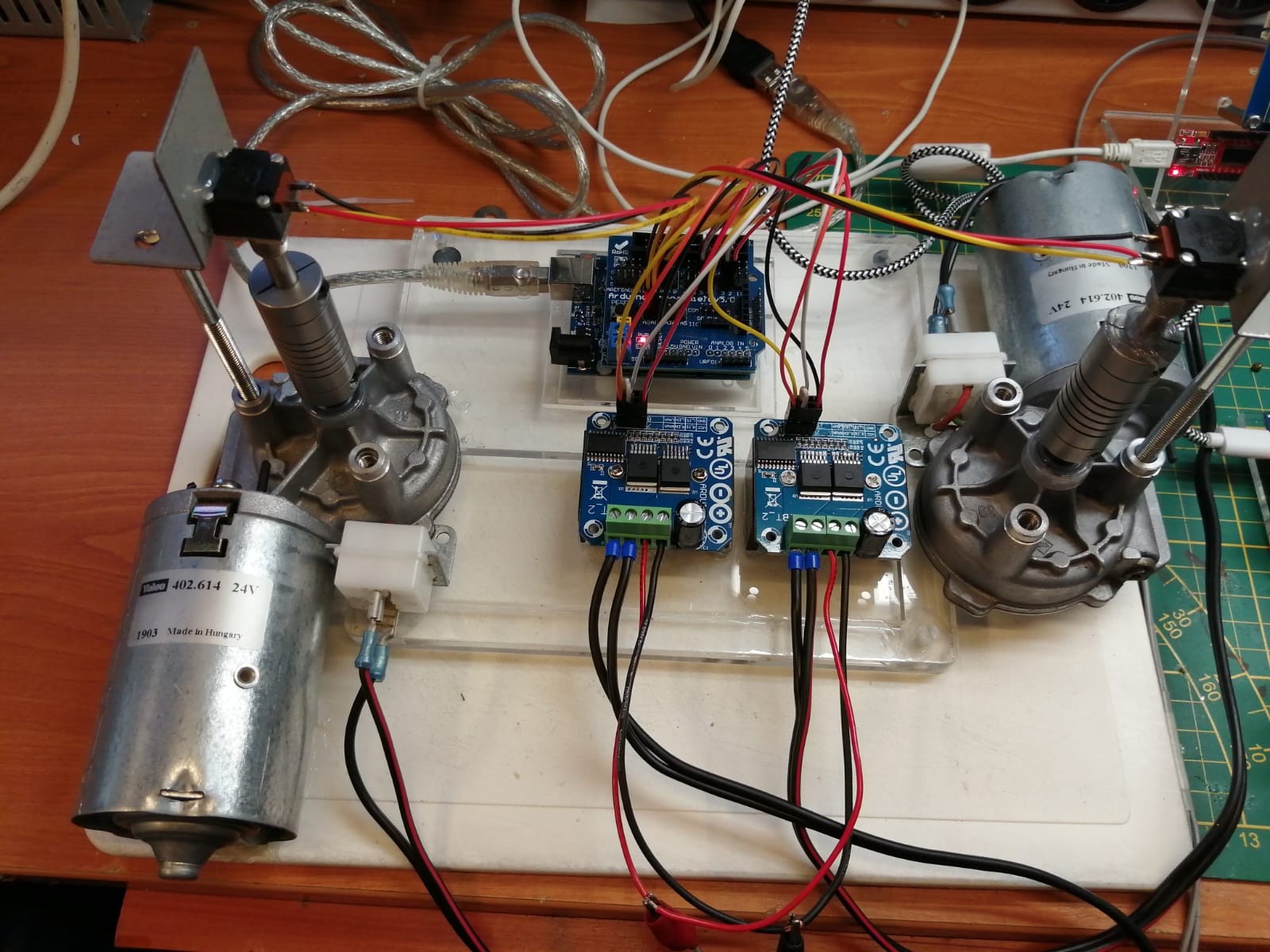

    WhatsApp Image 2020-12-31 at 12.39.33.jpeg WhatsApp Image 2020-12-31 at 12.39.20.jpeg

    I build in fases, so my first priorty is to getting everything to work (electrics, software).
    And i think it does.
    Now it is time to start the design of the wheel and pedals.
    So i will keep you posted.

    Attached Files:

    Jeroen1278, Dec 31, 2020
    #1
  2. Jeroen1278

    Jeroen1278 New Member

    Joined:
    Dec 30, 2020
    Messages:
    3
    Balance:
    6Coins
    Ratings:
    +2 / 0 / -0
    My Motion Simulator:
    2DOF

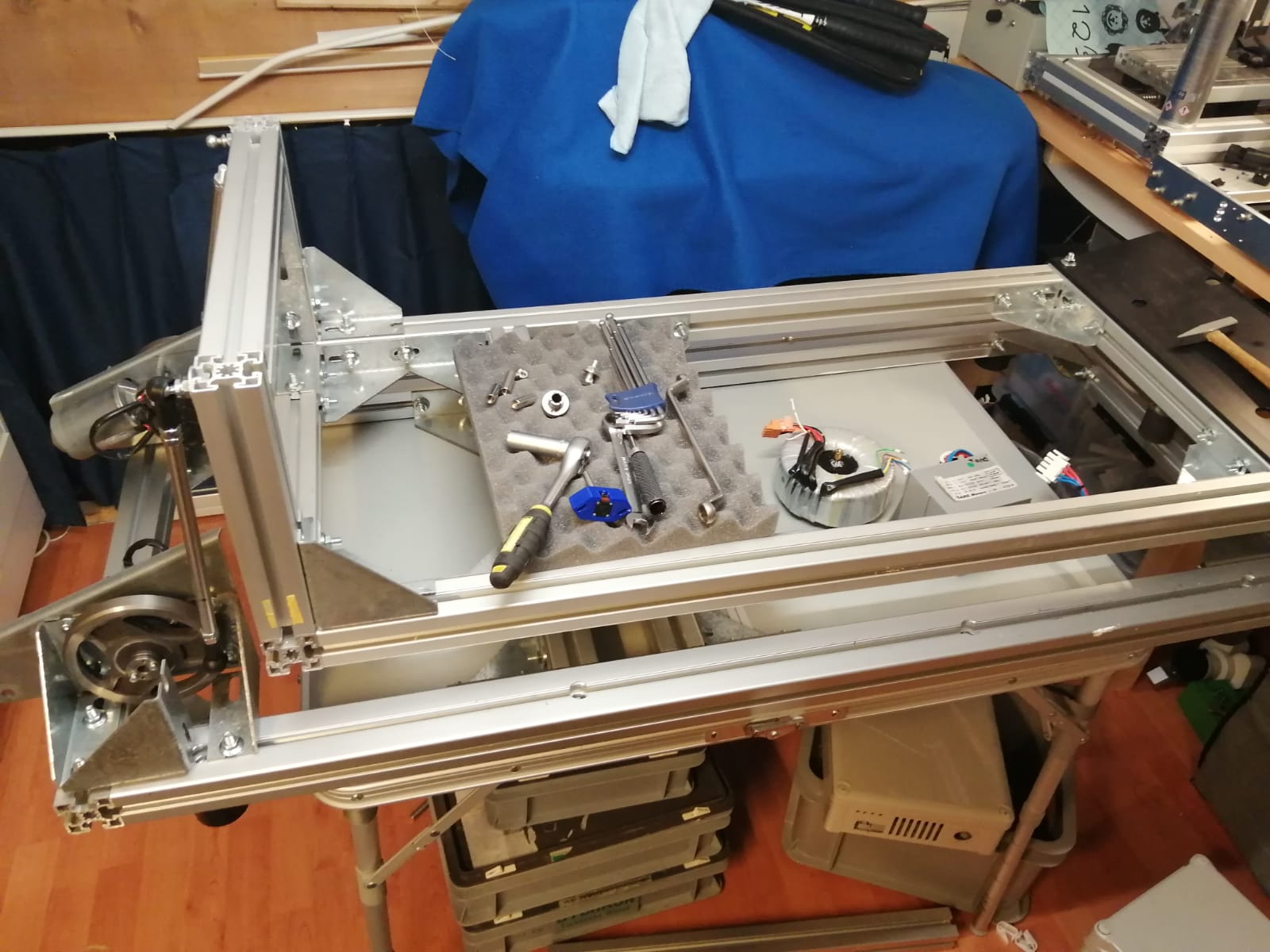

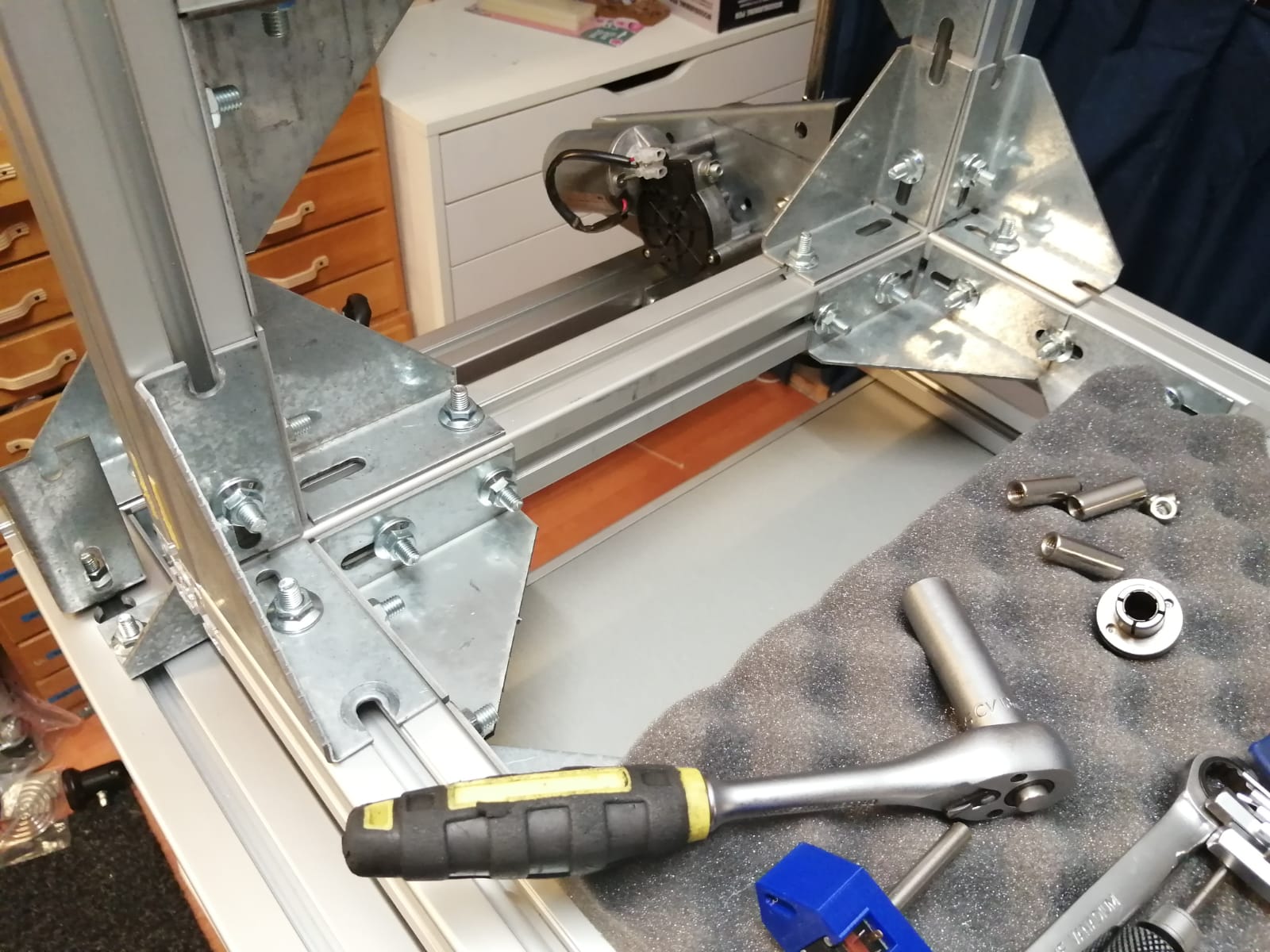

    Last couple of weeks i started with buiding the frame.
    For this setup i am gone use:

    - 2x BTS7960
    - 2x 24 Volt reduction motors (wipermotors)
    - Arduino uno
    - A lot of aluminium profile
    - A lot of nuts and bolts.

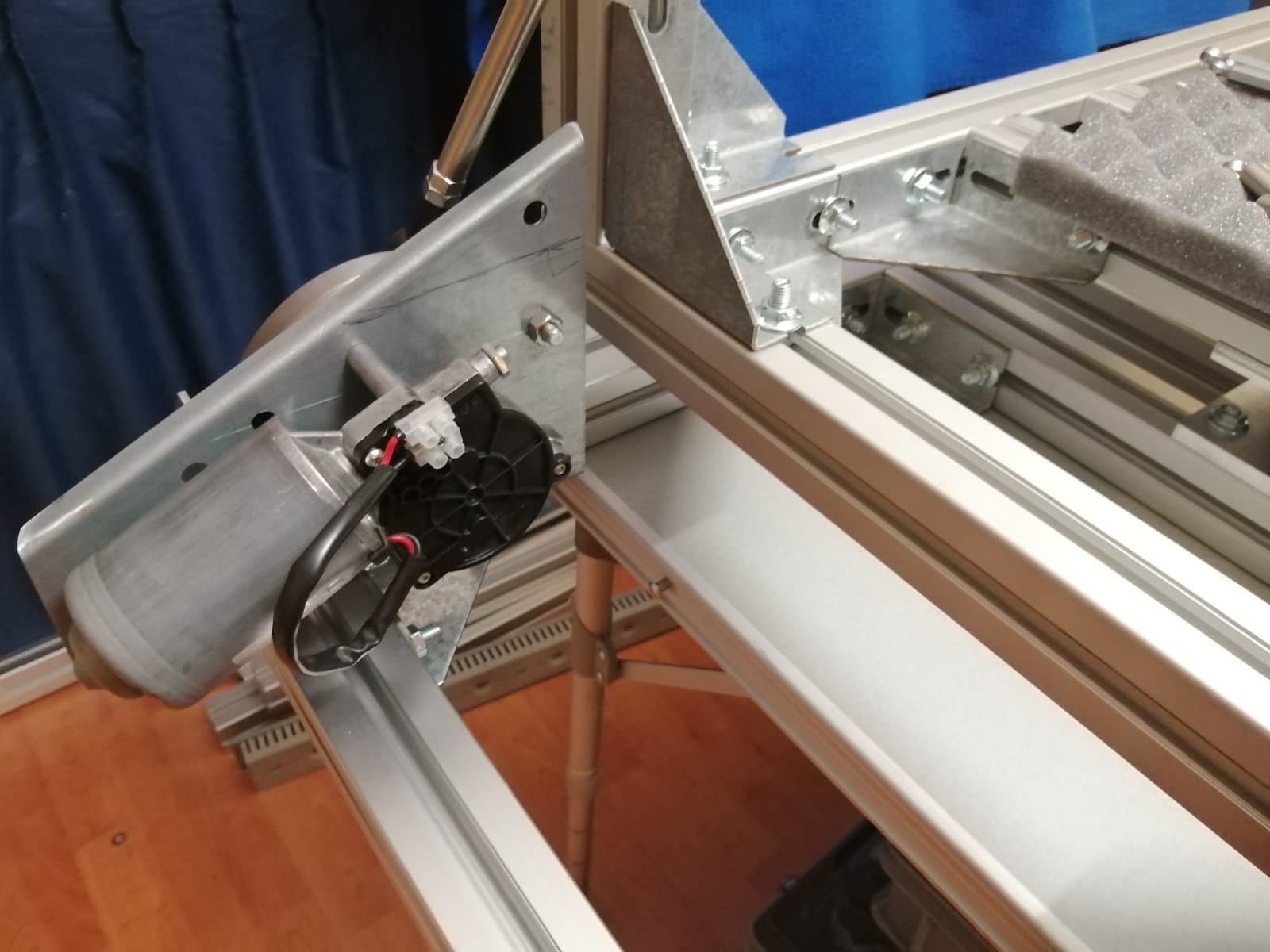

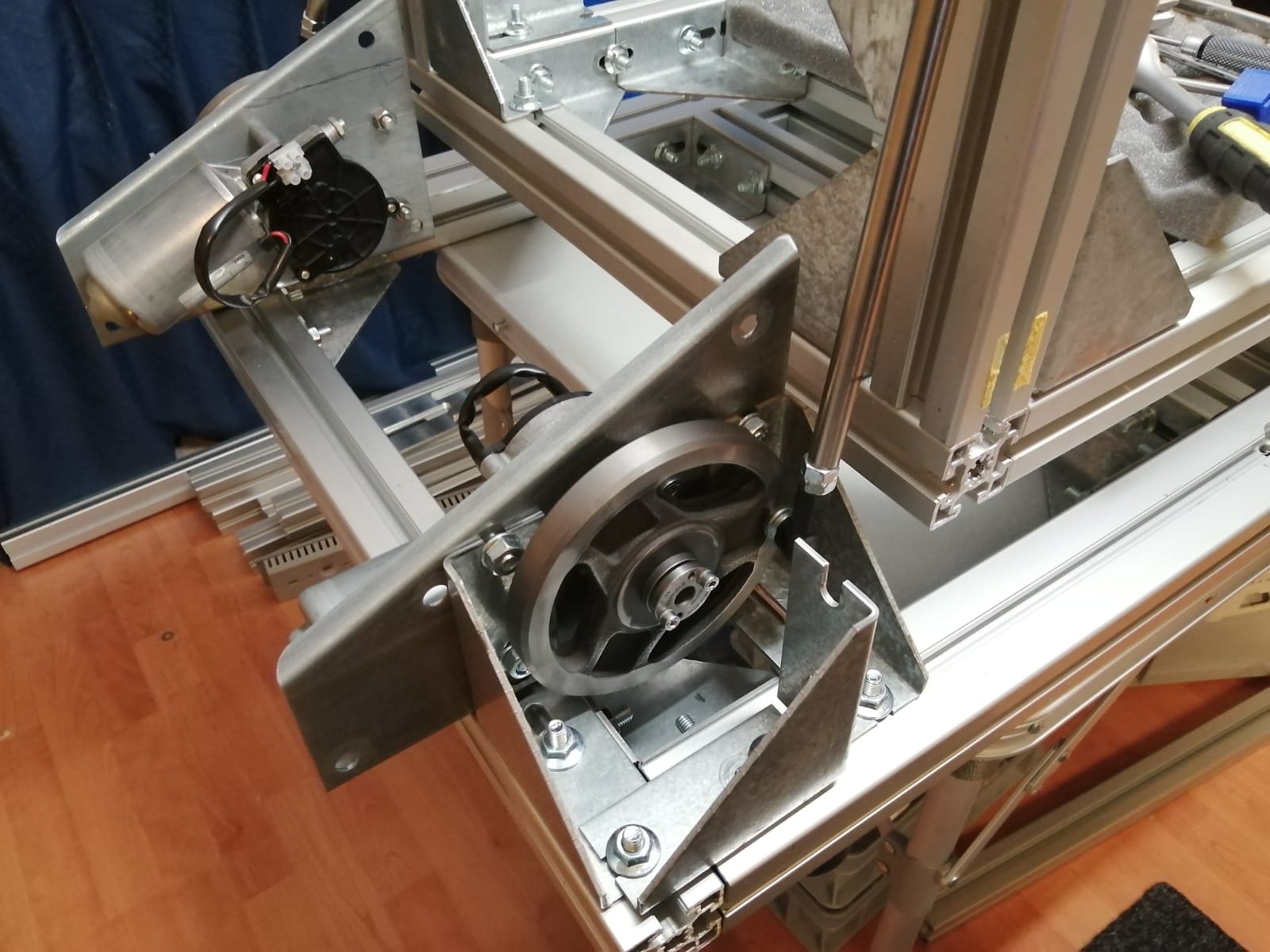

    For the time being i bolted it together, and later on i am gone make the adjustments needed.

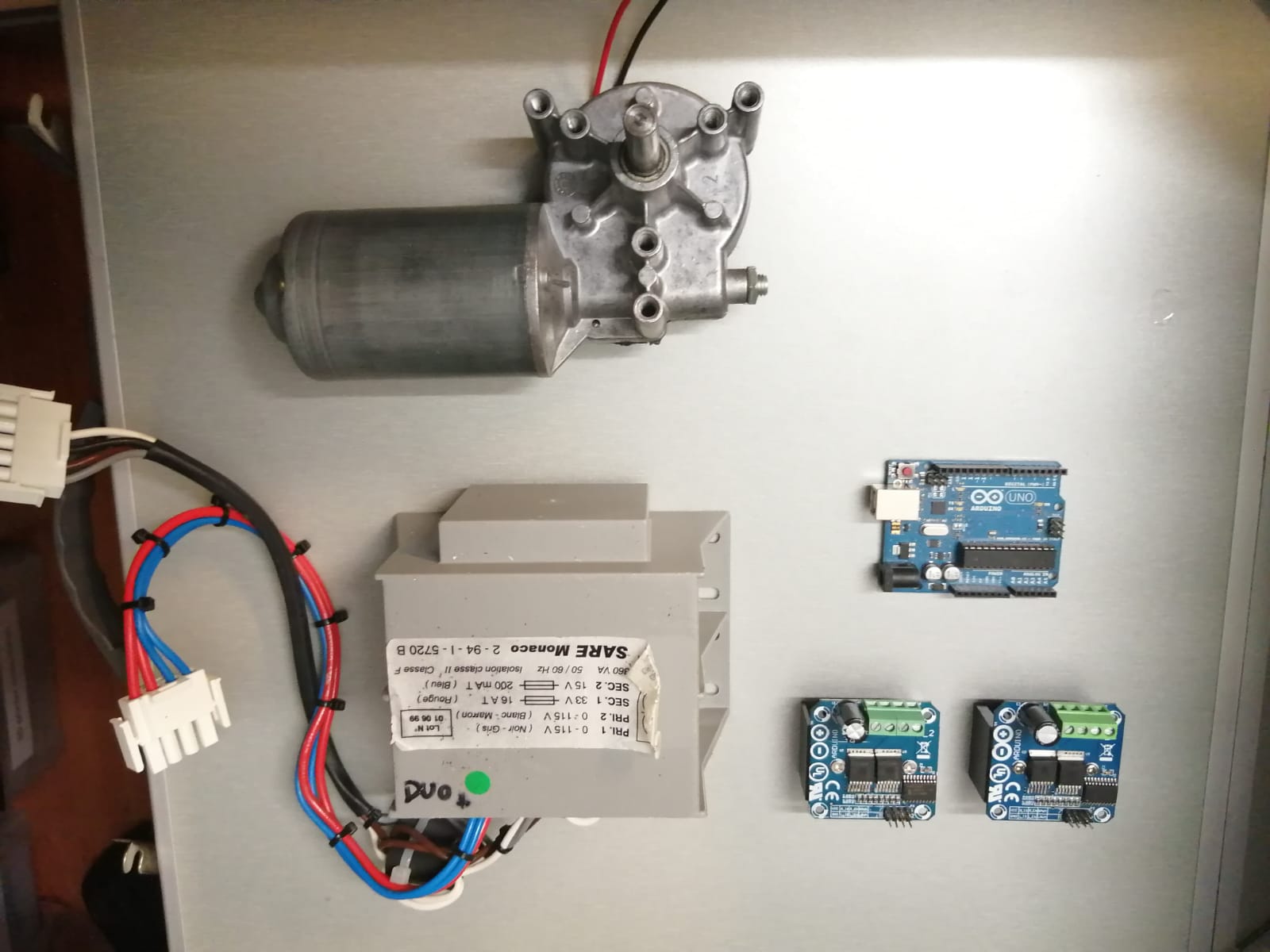

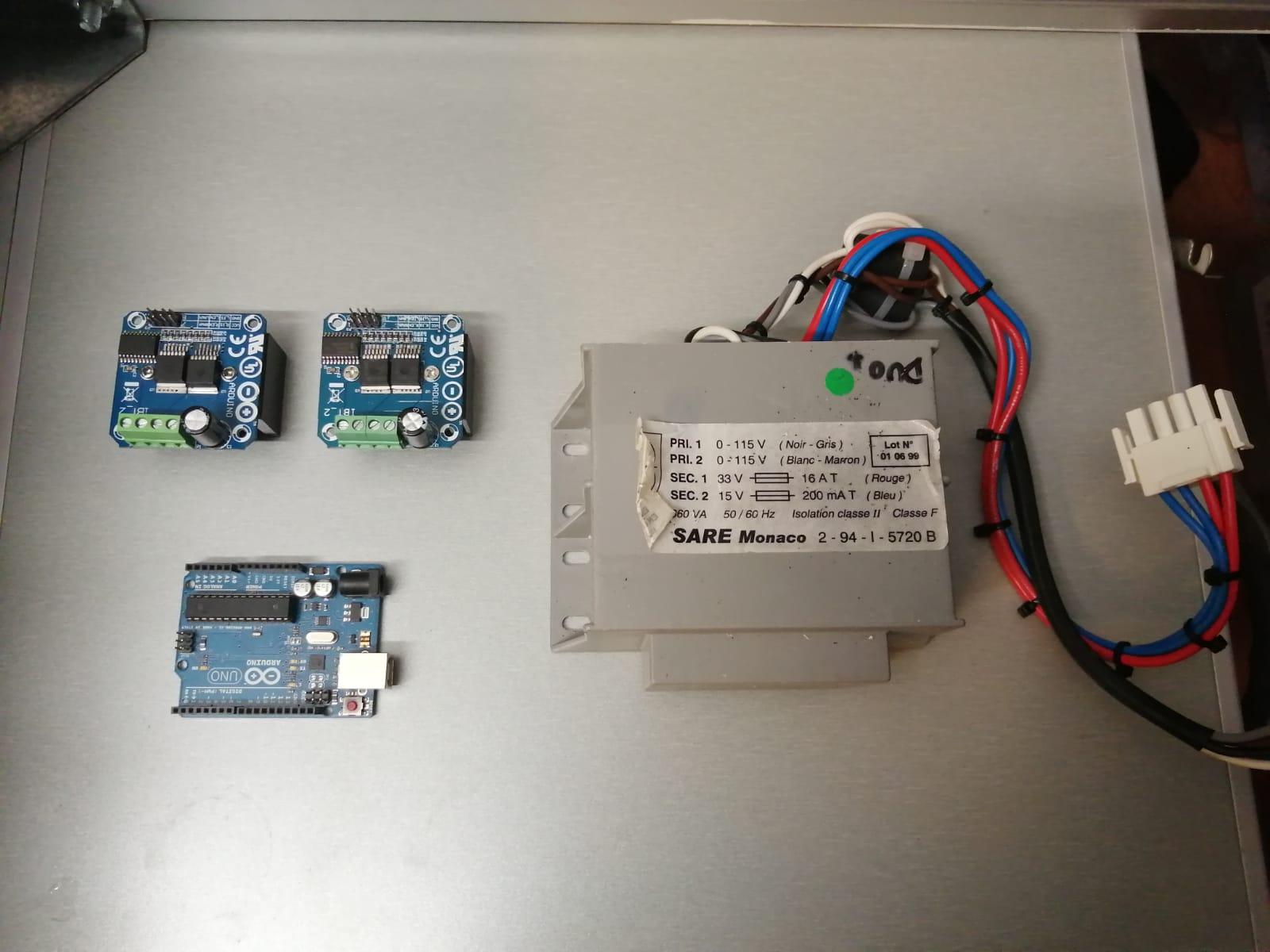

    WhatsApp Image 2021-01-17 at 19.59.50.jpeg WhatsApp Image 2021-01-17 at 19.59.50 (2).jpeg WhatsApp Image 2021-01-17 at 20.15.32.jpeg WhatsApp Image 2021-01-17 at 20.16.12.jpeg WhatsApp Image 2021-01-17 at 20.18.31.jpeg WhatsApp Image 2021-01-17 at 19.59.15.jpeg

    I will keep you posted.

    https://www.youtube.com/user/Jeroen1278
    https://www.kaskus.co.id/show_post/5879c1b9ded770e7728b456c/1326/-
    https://www.xsimulator.net/communit...3dof-motor-driver-and-windows-utilities.4957/

    Attached Files:

    Jeroen1278, Jan 17, 2021
    #2
  3. Jeroen1278

    Jeroen1278 New Member

    Joined:
    Dec 30, 2020
    Messages:
    3
    Balance:
    6Coins
    Ratings:
    +2 / 0 / -0
    My Motion Simulator:
    2DOF
    Slowly i am getting to a functioning rig.

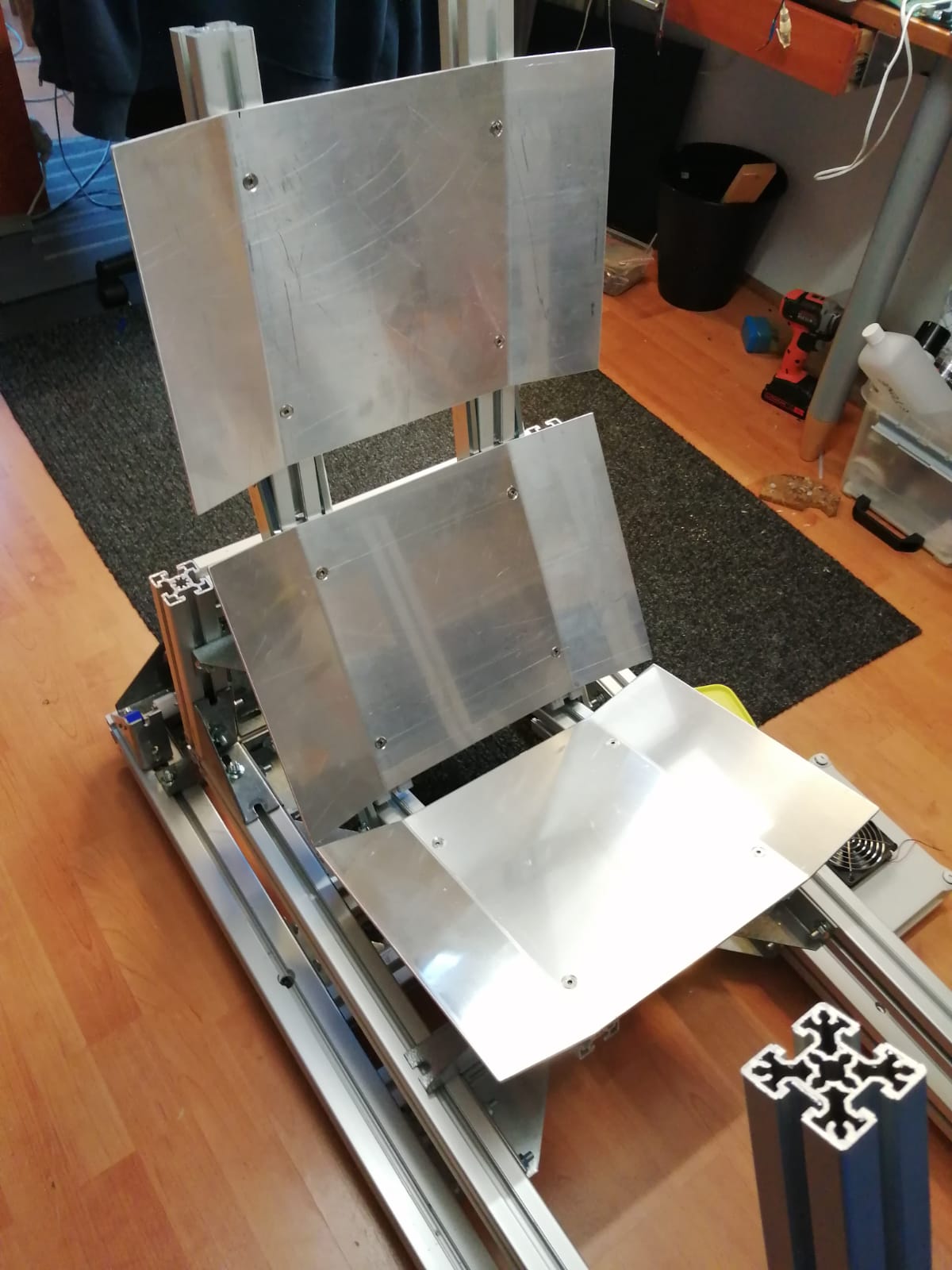

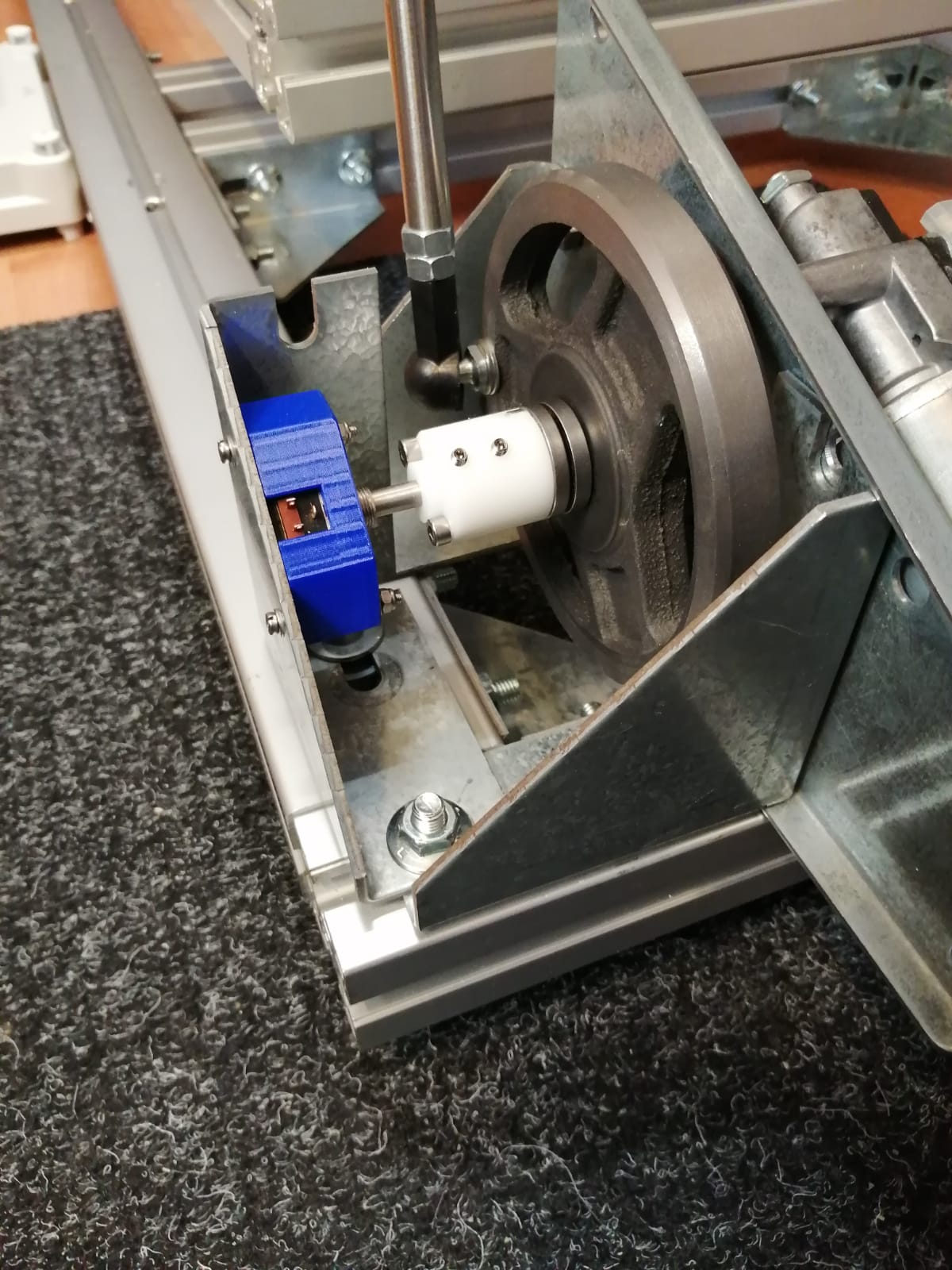

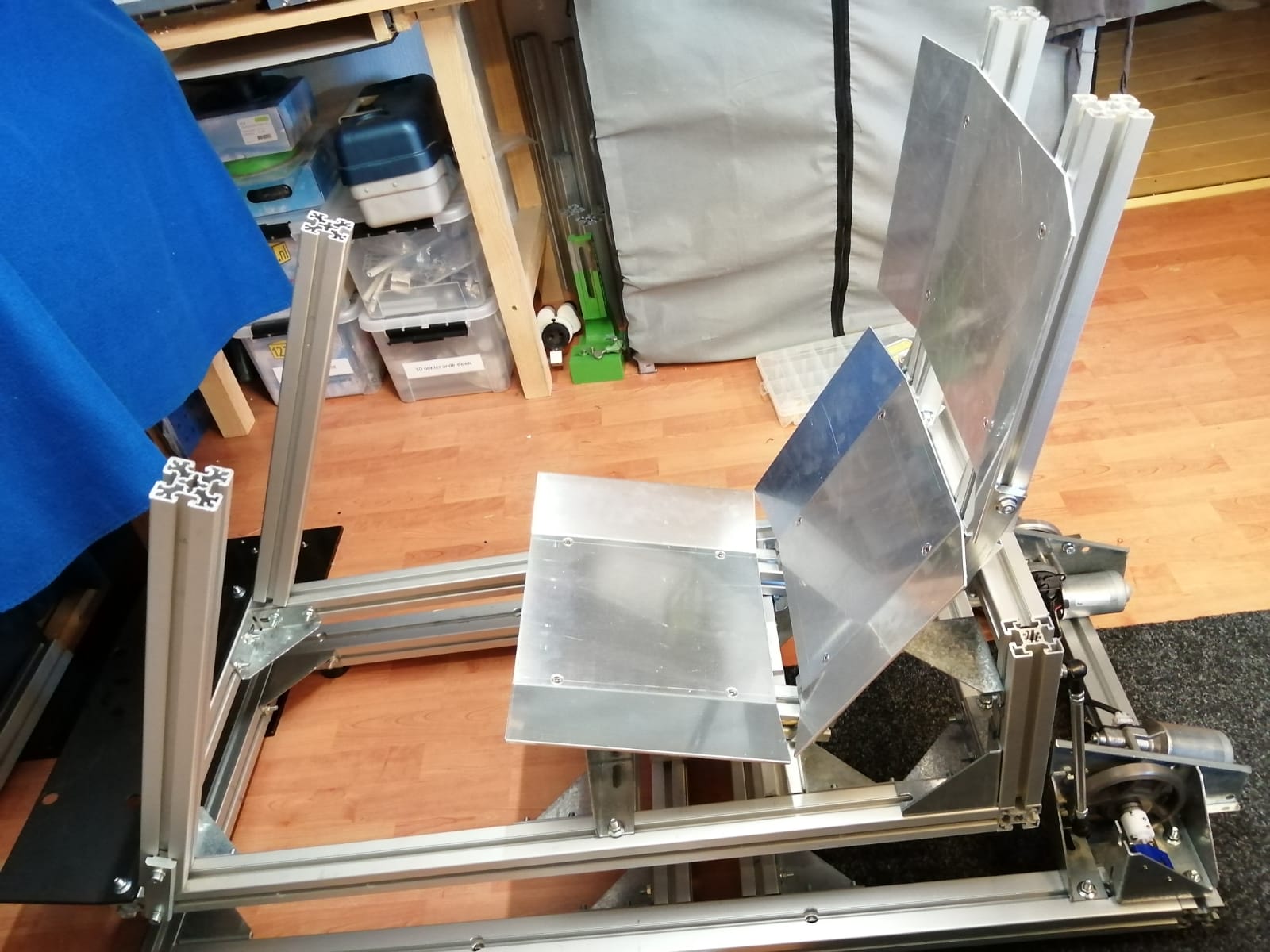

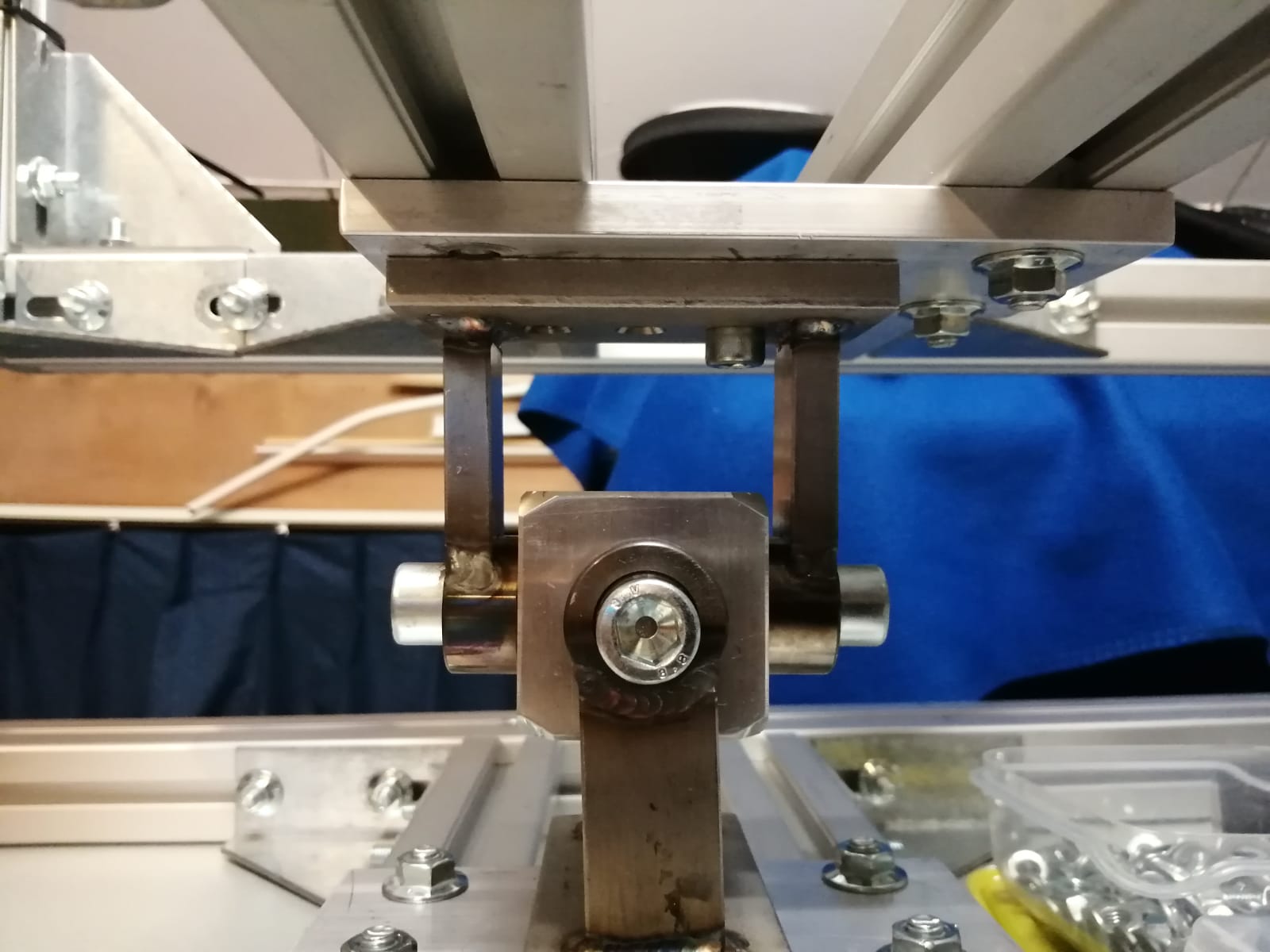

    I decided to build my own seat with the same profile i used for the frame, and the heavy duty coupling is also home made.

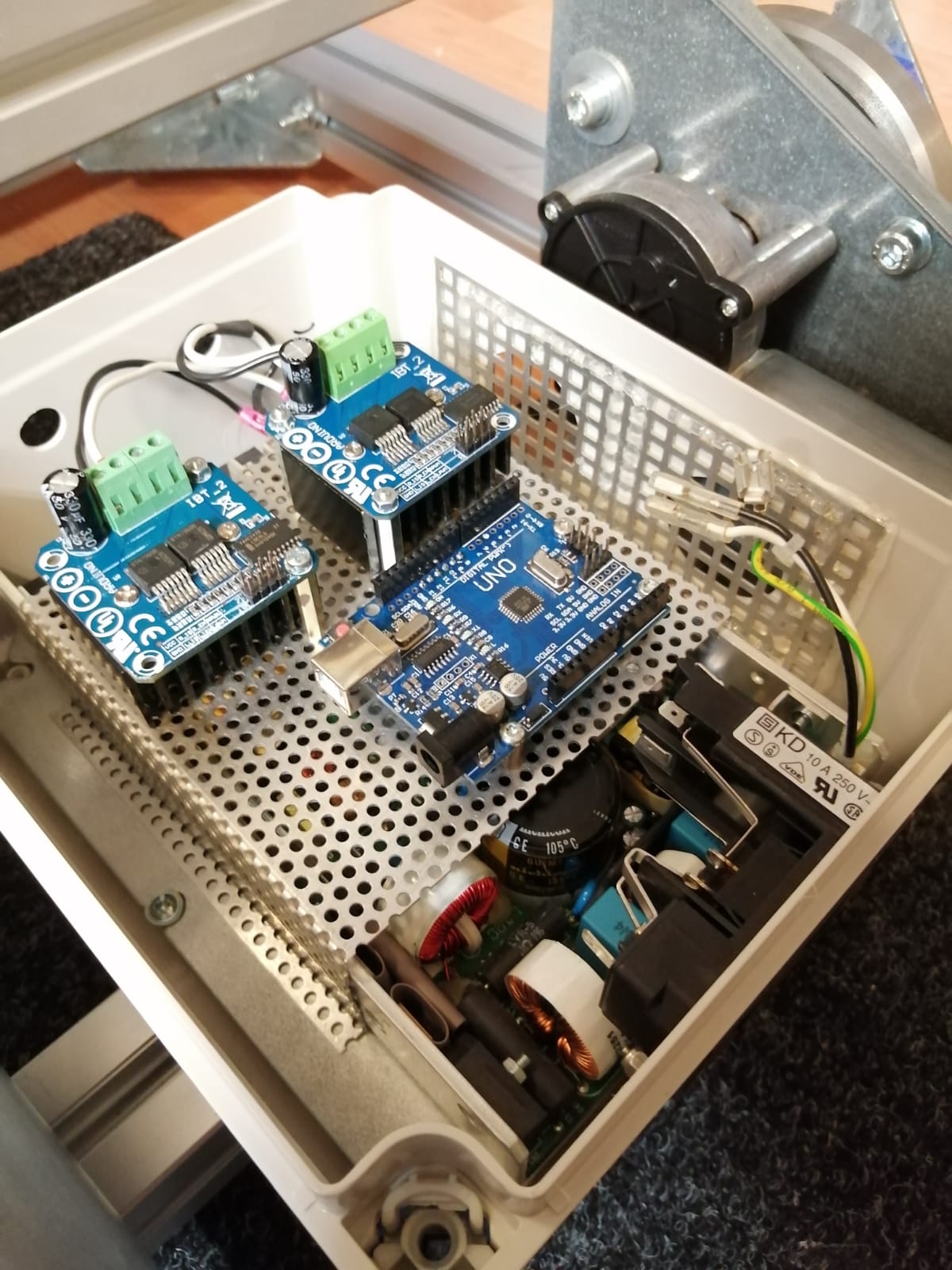

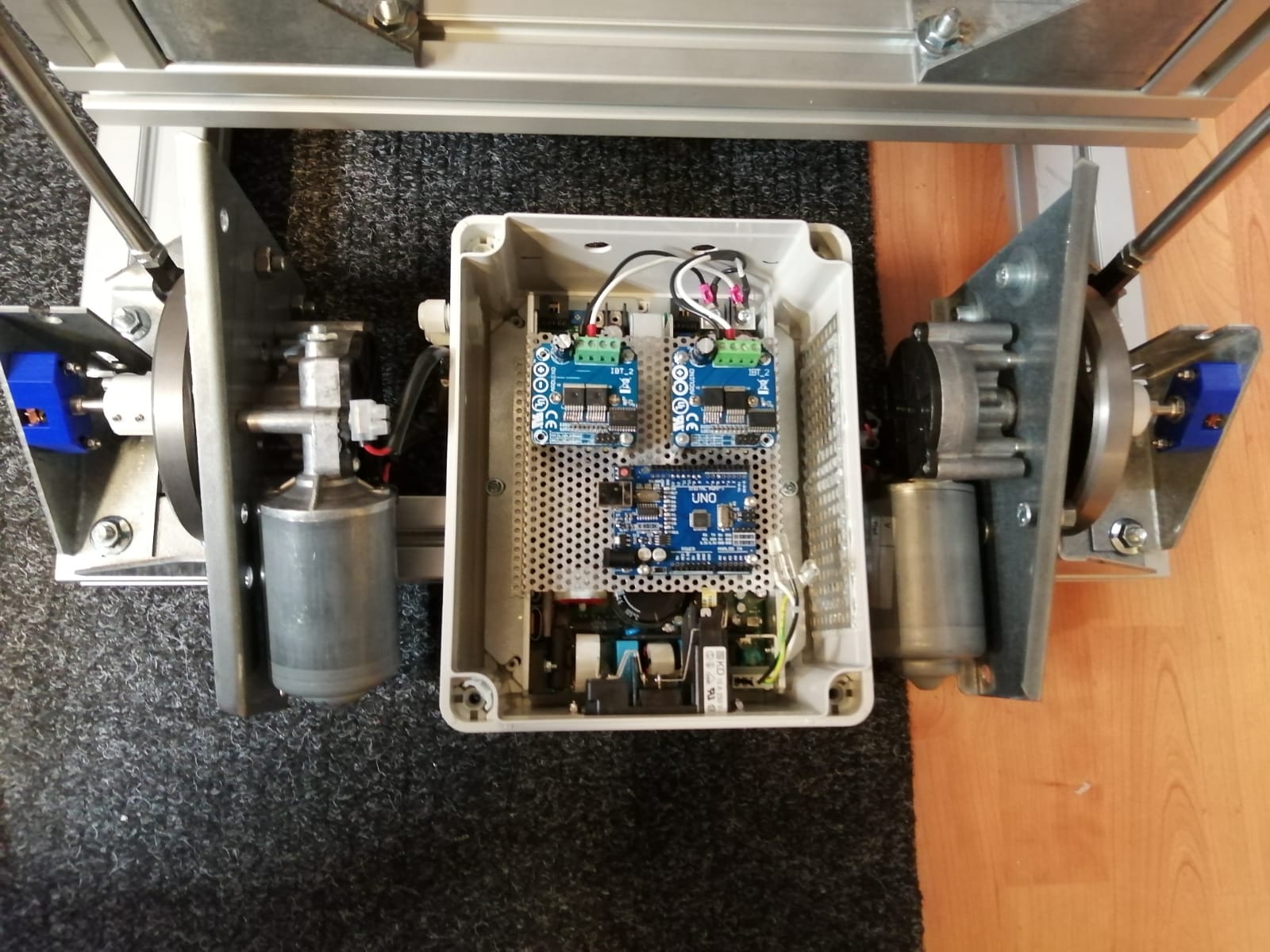

    WhatsApp Image 2021-01-26 at 20.02.41 (1).jpeg WhatsApp Image 2021-01-26 at 20.02.41 (2).jpeg [​IMG]
    WhatsApp Image 2021-01-26 at 20.02.40 (5).jpeg WhatsApp Image 2021-01-26 at 20.02.40.jpeg WhatsApp Image 2021-01-26 at 20.01.32.jpeg

    Currently i am working on a couple of things a the same time: electronics, mechanics frame, and steering wheel. So i have got a lot of work to do.
    I will keep you posted.

    Attached Files:

    • Like Like x 2
    Jeroen1278, Jan 26, 2021
    #3
