Showroom 12v Winch Motor Driving Simpit

Discussion in 'DIY Motion Simulator Projects' started by Historiker, Jul 23, 2013.

Page 18 of 18
  1. Historiker

    Historiker Dramamine Adict Gold Contributor

    Joined:
    Dec 16, 2010
    Messages:
    2,161
    Occupation:
    Retired
    Location:
    Michigan USA
    Balance:
    9,201Coins
    Ratings:
    +2,164 / 19 / -1
    My Motion Simulator:
    3DOF, DC motor, Arduino, Motion platform, 6DOF

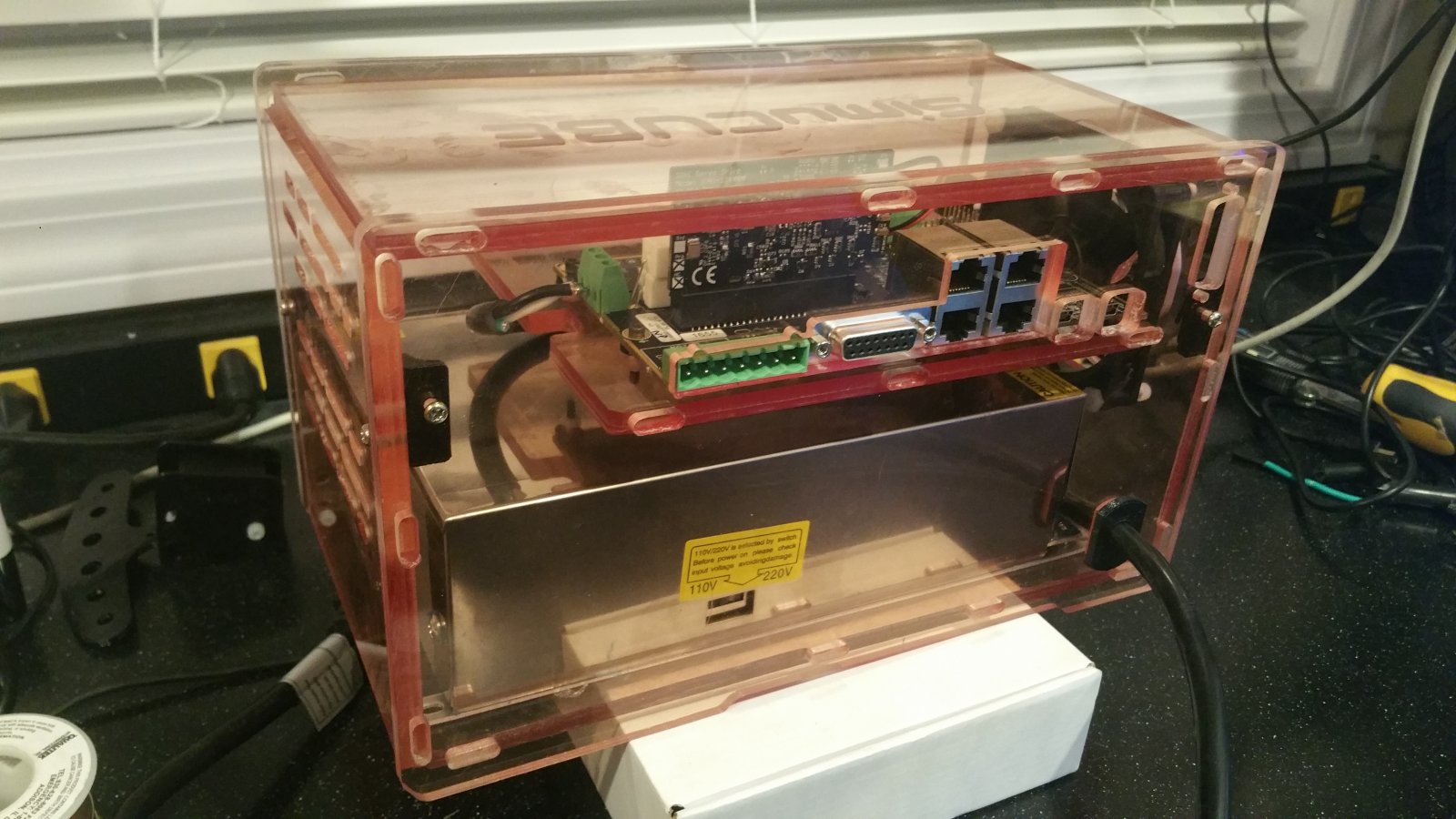

    The Simucube electronics case in all it's glory :)

    I had to edit the case kit files a bit, added length to fit my PSU and engraved the bottom side of the top plate to get a nice 3D effect (hard to see in pictures). Created my own AC cord pass through (my god those 3D printers are handy). Thanks again @bruce stephen for the tip on using black PetG.

    It powers up, all the correct blinky lights come on. The servo is supposed to be here tomorrow, extremely long shipping compared to the stories that some of you have shared, just bad luck I guess but tomorrow is the day!

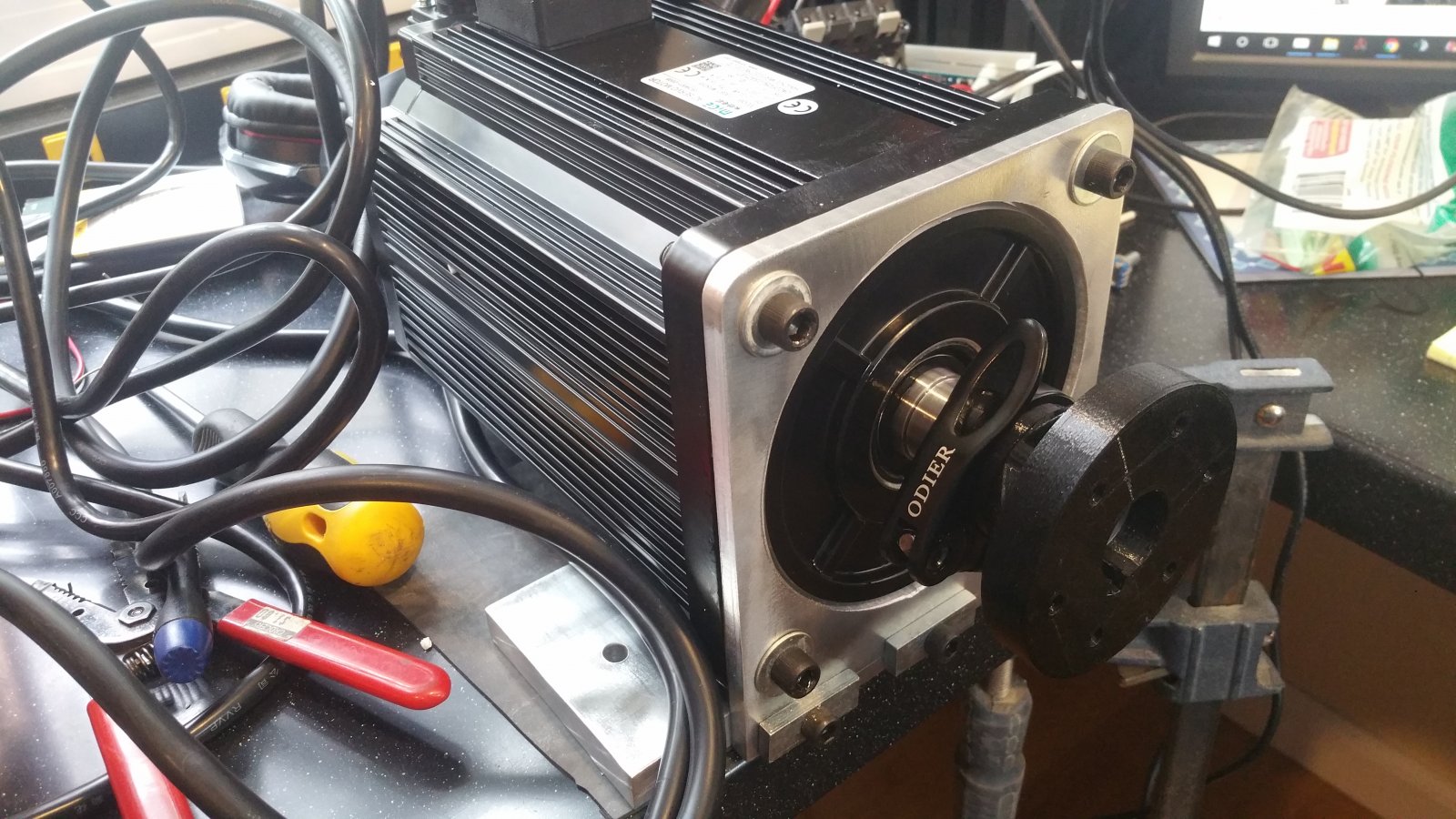

    I have a mount out in the shop that I made with 6mm and 12mm aluminum. CNC cut the face for the bolt pattern and mount circle and bolted that to a 12mm base plate to bolt to the simpit. My E-stop is sitting here but not wired up yet.

    • Like Like x 4
    • Winner Winner x 1
    Historiker, Mar 29, 2018
    #341
  2. Historiker

    Historiker Dramamine Adict Gold Contributor

    Joined:
    Dec 16, 2010
    Messages:
    2,161
    Occupation:
    Retired
    Location:
    Michigan USA
    Balance:
    9,201Coins
    Ratings:
    +2,164 / 19 / -1
    My Motion Simulator:
    3DOF, DC motor, Arduino, Motion platform, 6DOF

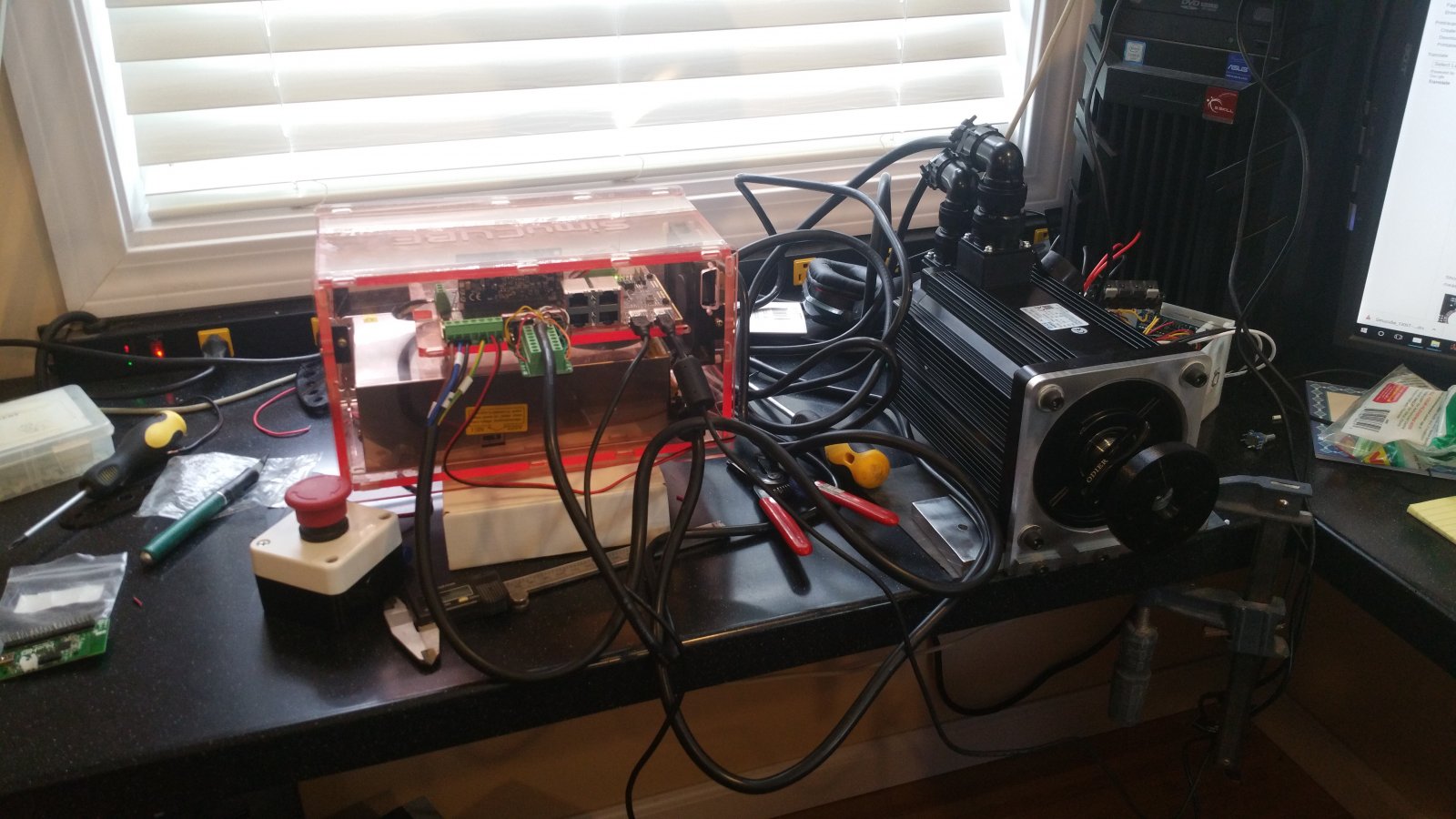

    !!!!!!!!!!!!!!!!!!!!ITS ALIVE!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!





    Ummm.....now what do I do with it? :D

    Attached Files:

    • Like Like x 5
    • Winner Winner x 2
    Historiker, Mar 29, 2018
    #342
  3. Historiker

    Historiker Dramamine Adict Gold Contributor

    Joined:
    Dec 16, 2010
    Messages:
    2,161
    Occupation:
    Retired
    Location:
    Michigan USA
    Balance:
    9,201Coins
    Ratings:
    +2,164 / 19 / -1
    My Motion Simulator:
    3DOF, DC motor, Arduino, Motion platform, 6DOF
    Remember where I said that I needed to change my profile picture because of something "coming soon"?

    Well...the OSW wasn't it......stay tuned ;)
    • Like Like x 1
    Historiker, Mar 30, 2018
    #343
  4. Historiker

    Historiker Dramamine Adict Gold Contributor

    Joined:
    Dec 16, 2010
    Messages:
    2,161
    Occupation:
    Retired
    Location:
    Michigan USA
    Balance:
    9,201Coins
    Ratings:
    +2,164 / 19 / -1
    My Motion Simulator:
    3DOF, DC motor, Arduino, Motion platform, 6DOF
    Jeez I am slow. I did this last April but never got around to uploading pictures.

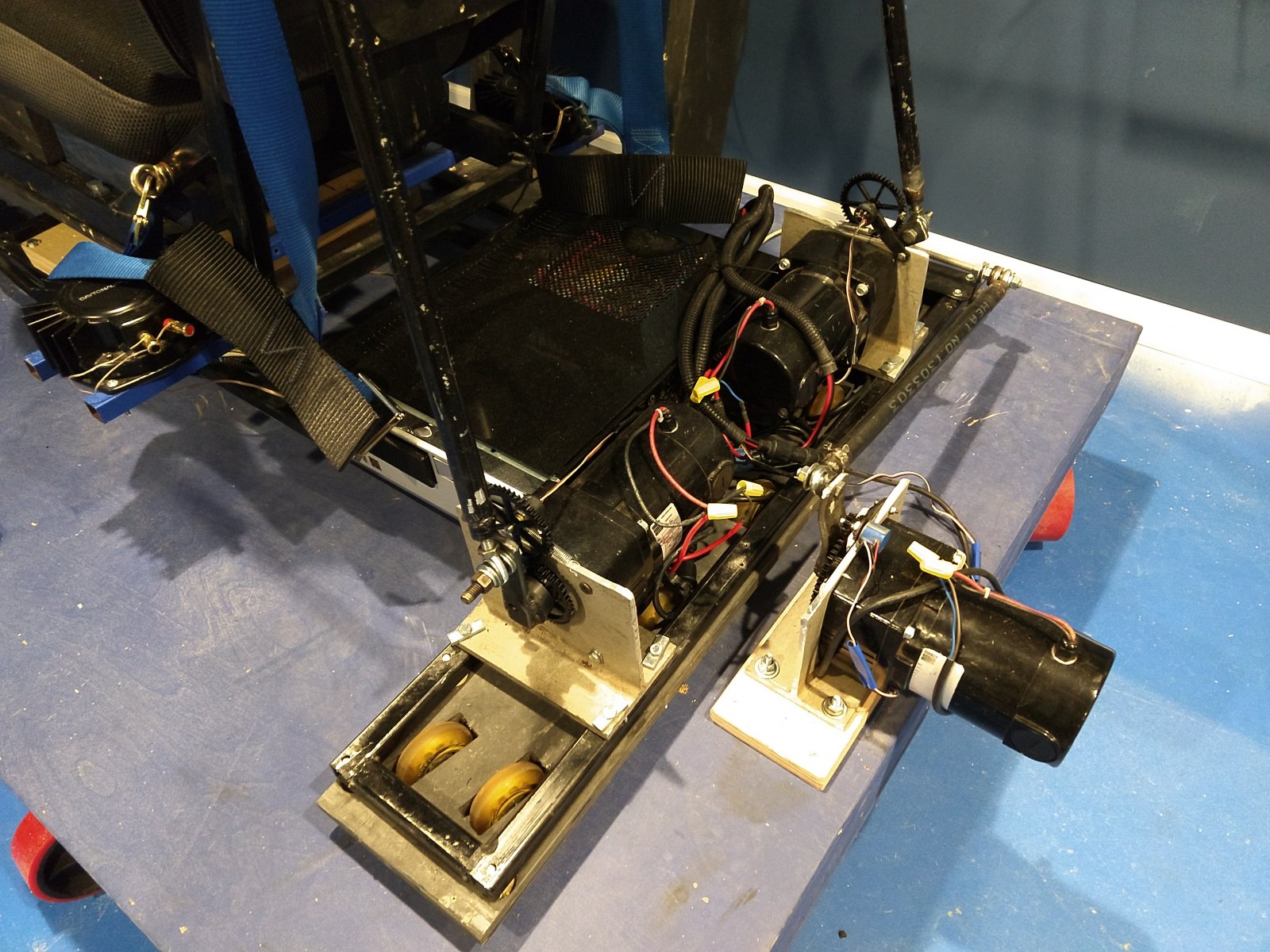

    I redid my motor system using the popular (and powerful) Bodine motors (thanks @bruce stephen ) for both the 3DoF and traction loss. I also added heavy duty castors to the base to move it around the man cave...it seemed to be constantly in the way, lol.

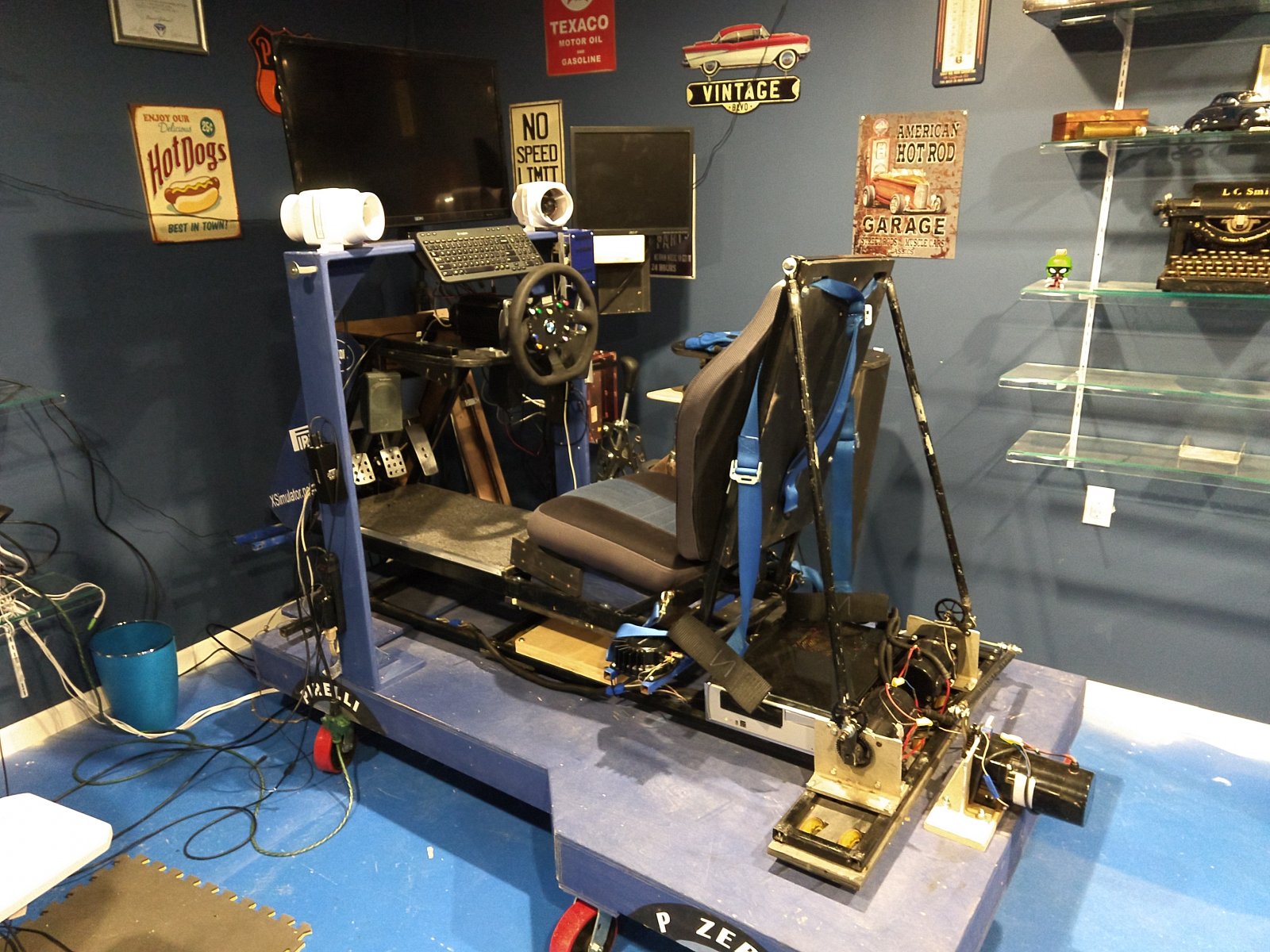

    Removed the triple monitors again as I went 100% VR (Samsung Odyssey). It is fast, enough to rattle my teeth.

    I moved the driving pit into the corner so it could share a PC with my VR flight simpit.



    • Like Like x 2
    Historiker, Feb 6, 2019
    #344
  5. Historiker

    Historiker Dramamine Adict Gold Contributor

    Joined:
    Dec 16, 2010
    Messages:
    2,161
    Occupation:
    Retired
    Location:
    Michigan USA
    Balance:
    9,201Coins
    Ratings:
    +2,164 / 19 / -1
    My Motion Simulator:
    3DOF, DC motor, Arduino, Motion platform, 6DOF
    Thanks to @BondeX for giving me another Bodine 12v gear motor I am now upgrading this project to 6DoF! :D

    Three motors came from @bruce stephen (and six more for my VR flight sim pit) and I found two motors on Ebay just before Christmas (merry Christmas to me to me!) with this last motor I have almost everything to upgrade the driving pit to 6DoF!
    • Friendly Friendly x 2
    • Like Like x 1
    Historiker, Mar 30, 2019
    #345
  6. bruce stephen

    bruce stephen Hammer doesnt fix it, must be electrical

    Joined:
    Jun 7, 2015
    Messages:
    1,286
    Occupation:
    general contractor
    Location:
    michigan
    Balance:
    9,112Coins
    Ratings:
    +1,238 / 9 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino, Motion platform, 6DOF
    Sim party at your house.:grin
    • Like Like x 2
    • Agree Agree x 1
    bruce stephen, Mar 31, 2019
    #346
