6 DOF Wood Flight Simulator

Discussion in 'DIY Motion Simulator Projects' started by MagicEdge, Sep 16, 2015.

Page 5 of 5
  1. MagicEdge

    MagicEdge Active Member Gold Contributor

    Joined:
    Oct 3, 2013
    Messages:
    131
    Occupation:
    Aircraft Technician
    Location:
    Justin' TX USA
    Balance:
    1,327Coins
    Ratings:
    +100 / 0 / -0
    My Motion Simulator:
    6DOF

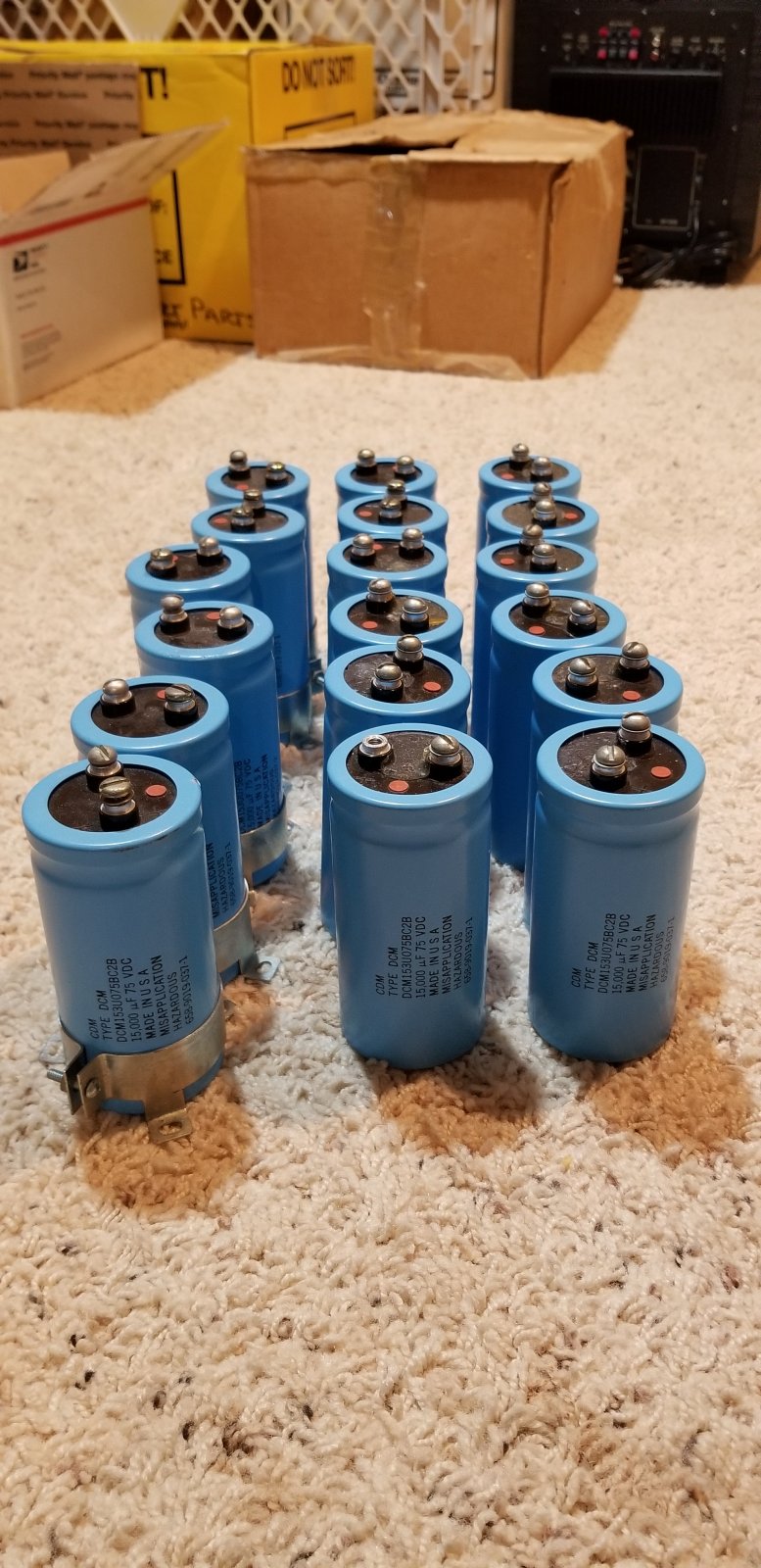

    I have read on xsimulator about using big Capacitors on the Monster Moto. I have 15,000uf 75V caps to put on the motors input to keep the H bridges from being destroyed from voltage feedback. Is this enough to keep them alive? 20210402_004059[1].jpg
    MagicEdge, Apr 2, 2021
    #81
  2. MagicEdge

    MagicEdge Active Member Gold Contributor

    Joined:
    Oct 3, 2013
    Messages:
    131
    Occupation:
    Aircraft Technician
    Location:
    Justin' TX USA
    Balance:
    1,327Coins
    Ratings:
    +100 / 0 / -0
    My Motion Simulator:
    6DOF

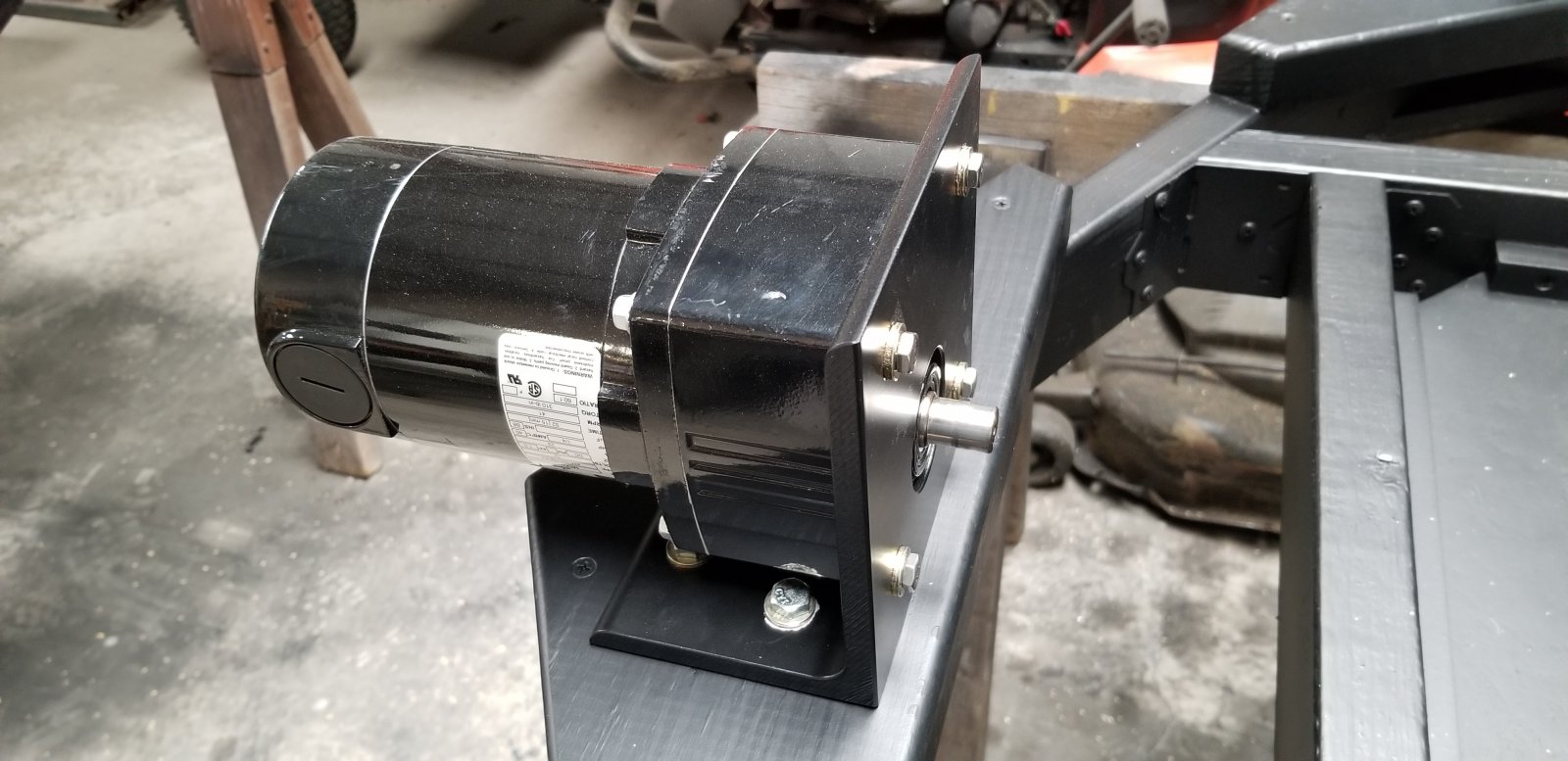

    Here is a close up of motor mount.

    Attached Files:

    • Like Like x 2
    MagicEdge, Apr 7, 2021
    #82
  3. MagicEdge

    MagicEdge Active Member Gold Contributor

    Joined:
    Oct 3, 2013
    Messages:
    131
    Occupation:
    Aircraft Technician
    Location:
    Justin' TX USA
    Balance:
    1,327Coins
    Ratings:
    +100 / 0 / -0
    My Motion Simulator:
    6DOF

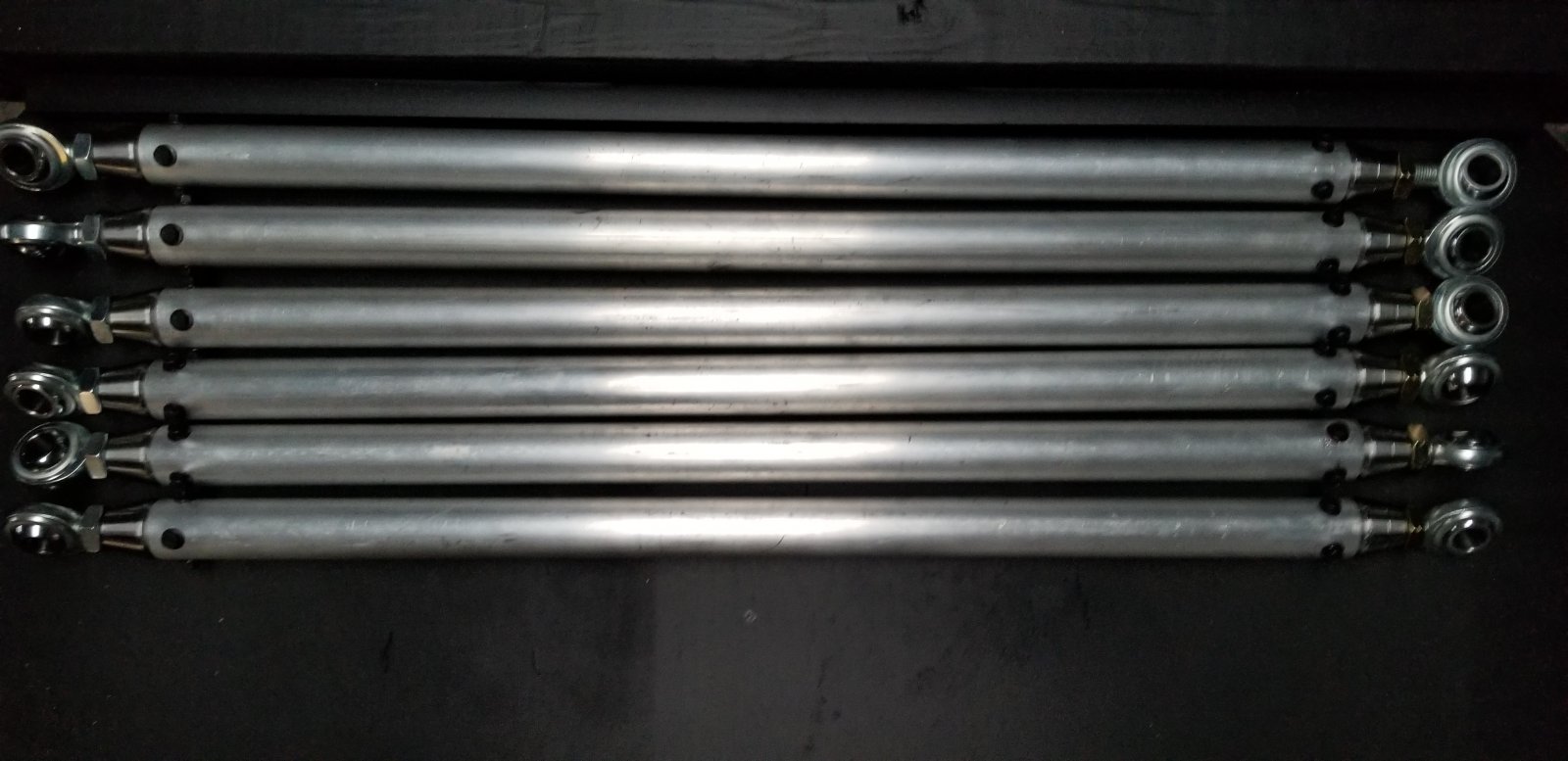

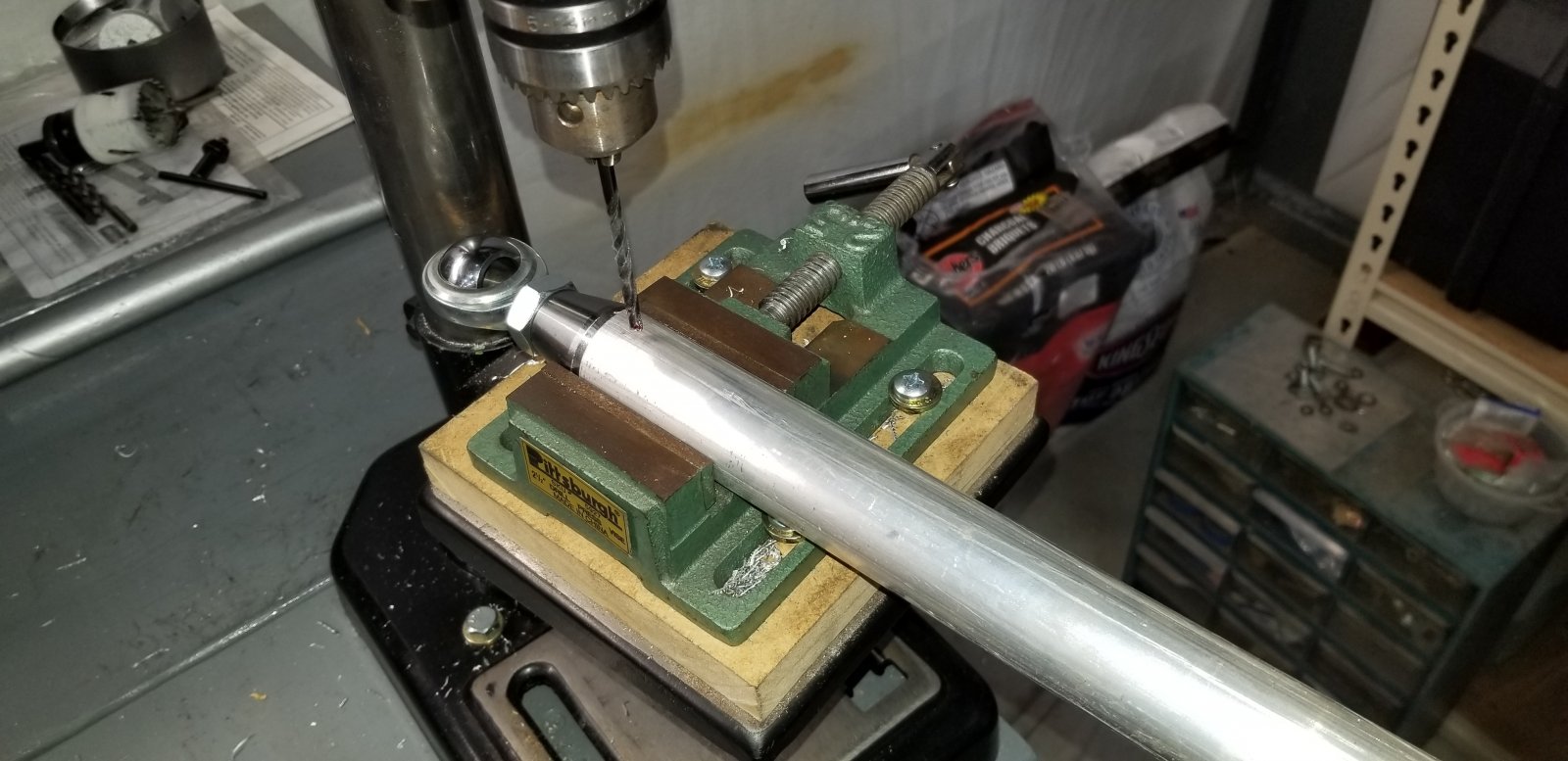

    Worked on the rods for first simulator today. Still looking for miniature 60:1 gear boxes to mount the pots to rear of the motors. 20210409_211243[1].jpg 20210409_192439[1].jpg Motors are 60:1 ratio.
    • Like Like x 3
    MagicEdge, Apr 10, 2021
    #83
  4. MagicEdge

    MagicEdge Active Member Gold Contributor

    Joined:
    Oct 3, 2013
    Messages:
    131
    Occupation:
    Aircraft Technician
    Location:
    Justin' TX USA
    Balance:
    1,327Coins
    Ratings:
    +100 / 0 / -0
    My Motion Simulator:
    6DOF
    Noorbeast, You are always on it!
    • Funny Funny x 1
    MagicEdge, Apr 10, 2021
    #84
  5. MagicEdge

    MagicEdge Active Member Gold Contributor

    Joined:
    Oct 3, 2013
    Messages:
    131
    Occupation:
    Aircraft Technician
    Location:
    Justin' TX USA
    Balance:
    1,327Coins
    Ratings:
    +100 / 0 / -0
    My Motion Simulator:
    6DOF

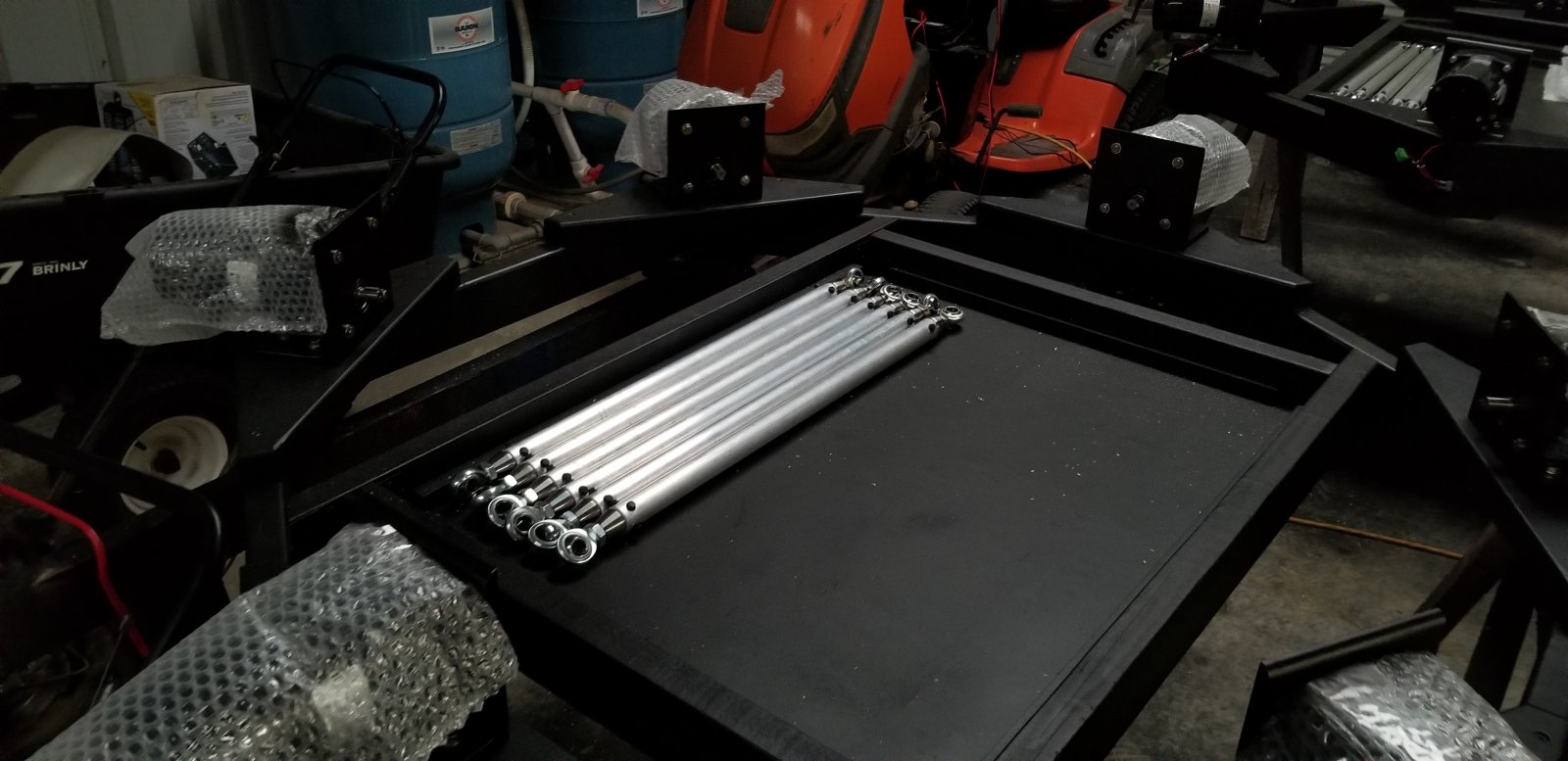

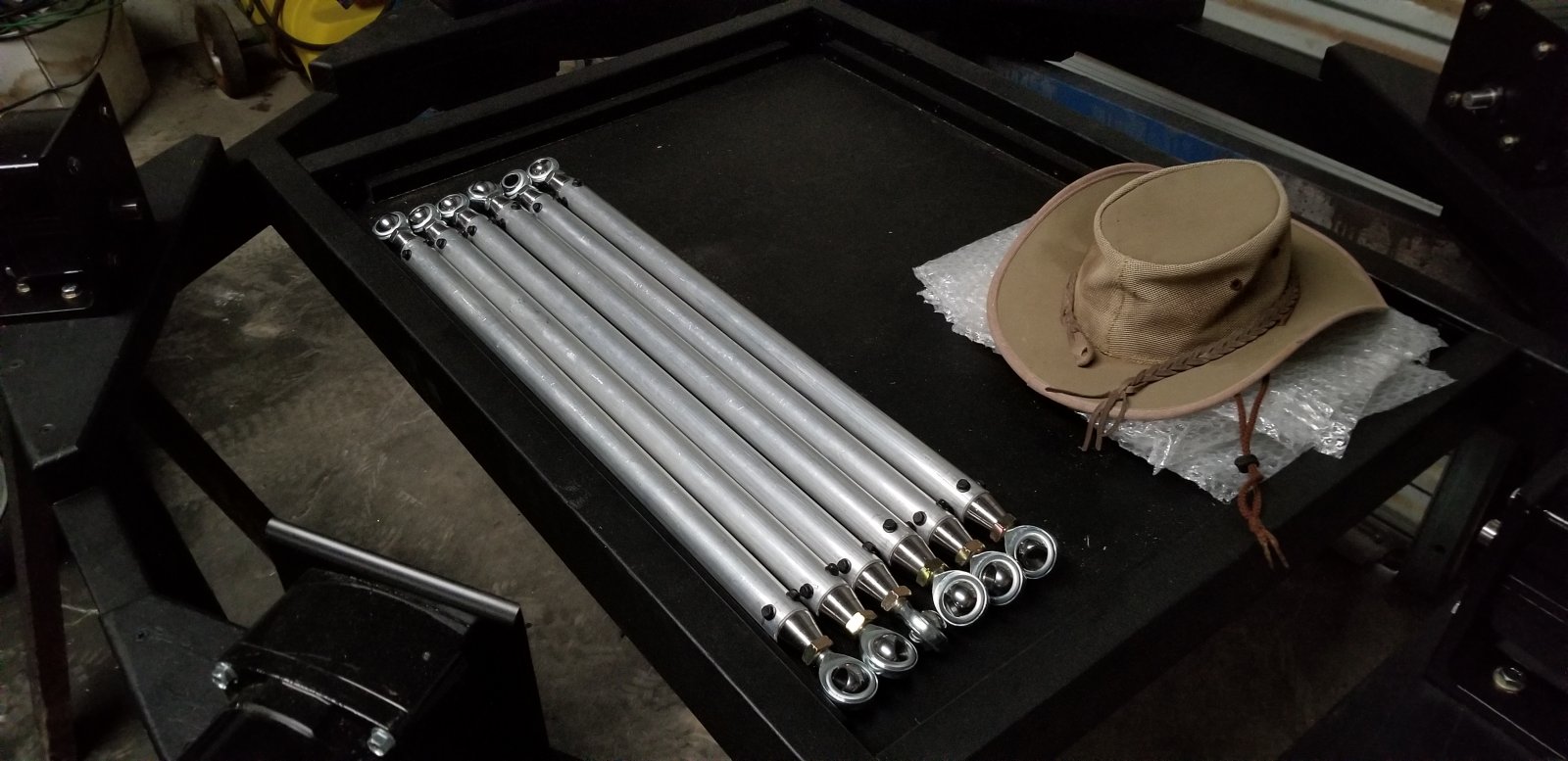

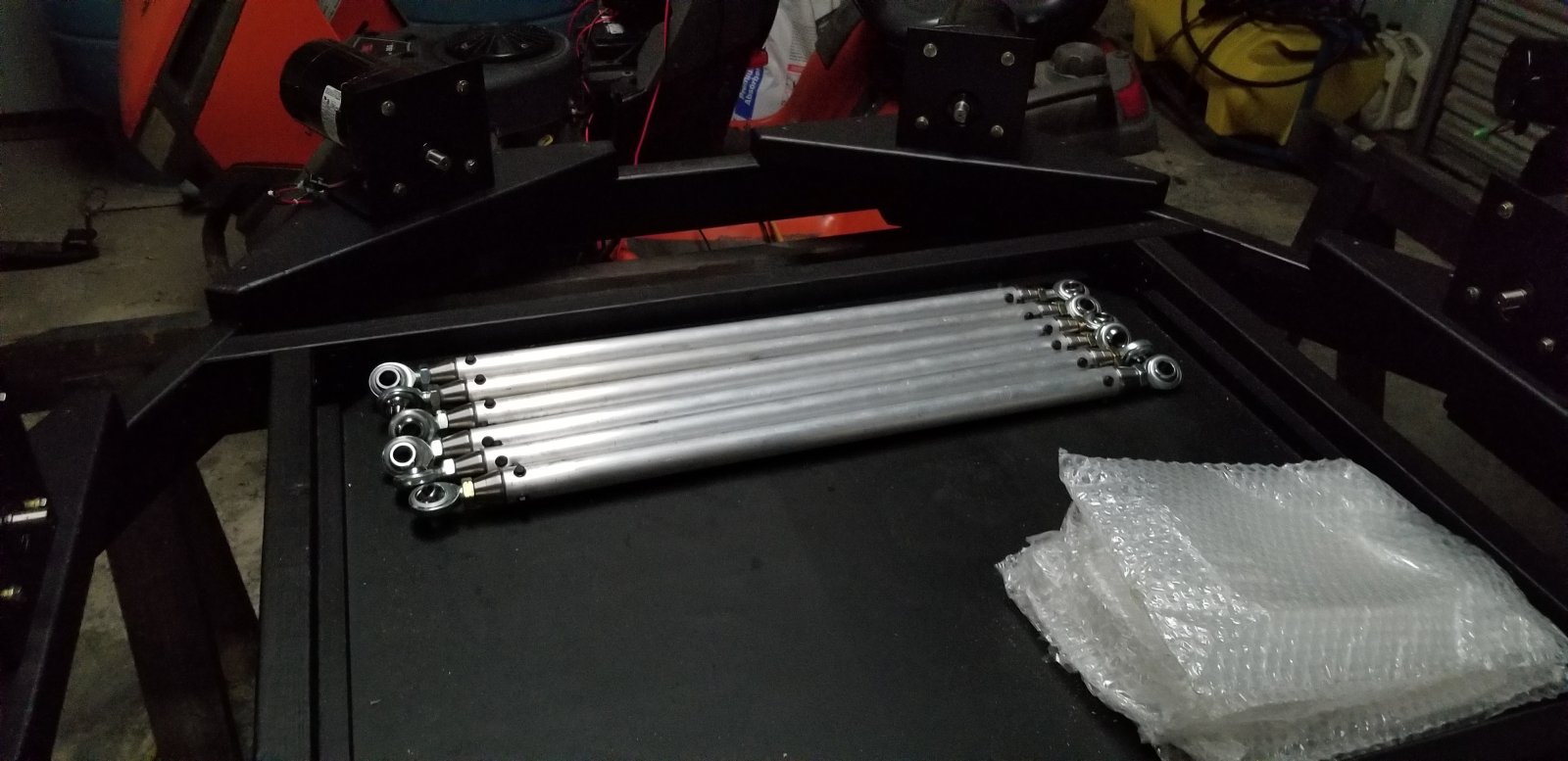

    OK! It's 666 and I promise it is not the mark of the beast 20210416_191815.jpg

    Attached Files:

    • Like Like x 2
    MagicEdge, Apr 17, 2021
    #85
  6. MagicEdge

    MagicEdge Active Member Gold Contributor

    Joined:
    Oct 3, 2013
    Messages:
    131
    Occupation:
    Aircraft Technician
    Location:
    Justin' TX USA
    Balance:
    1,327Coins
    Ratings:
    +100 / 0 / -0
    My Motion Simulator:
    6DOF

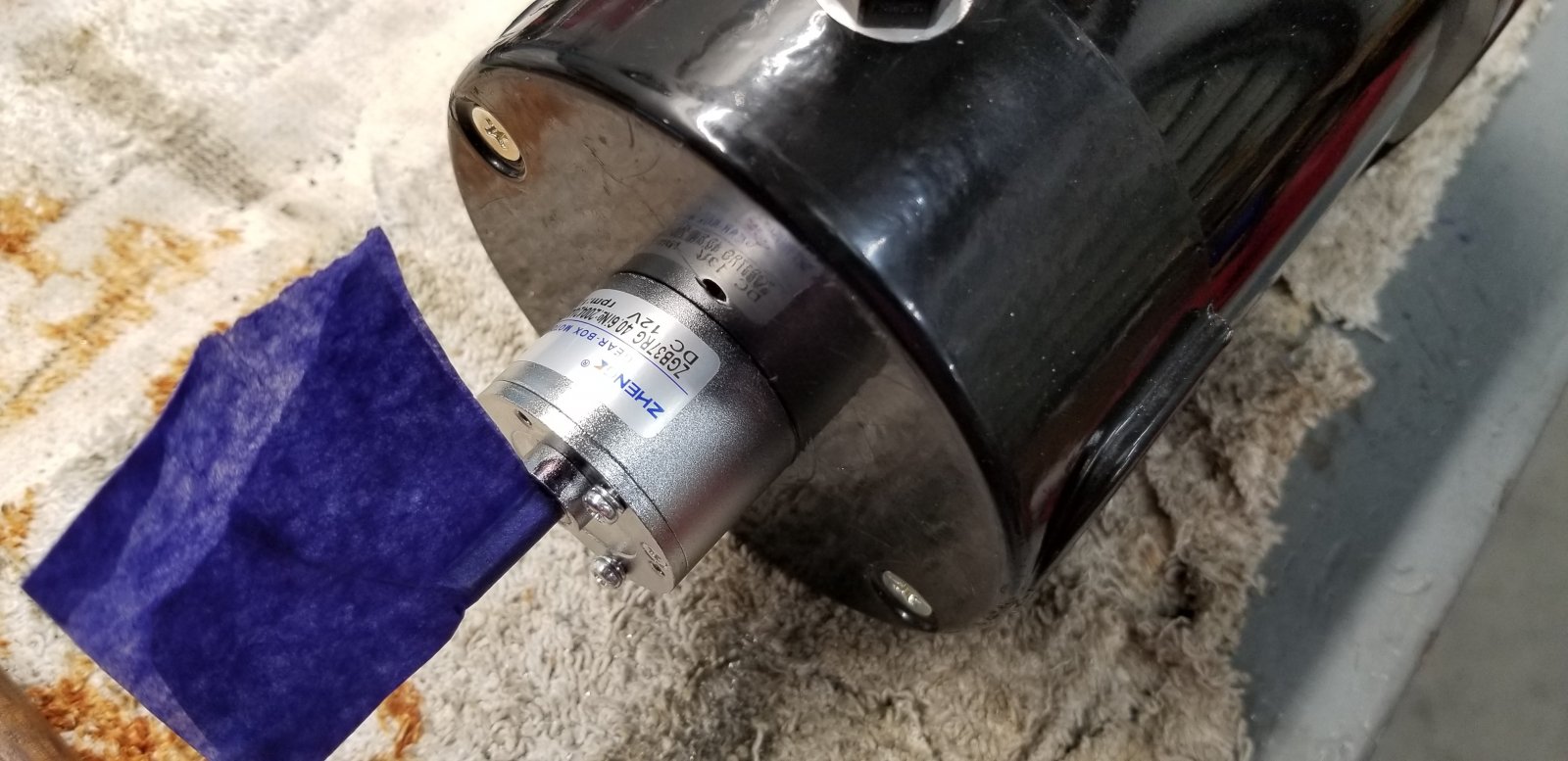

    Here is a test motor with a 30:1 ratio attached to rear of Bodine 60:1 ratio. A 3 turn 5K potentiometer will be attached with fabricated bracket. 20210419_183932[1].jpg
    • Like Like x 1
    MagicEdge, Apr 20, 2021
