    @mrt here is the link fr the plugs i got from fanells. Pins are at the bottom of the page but it depends what size cable you are using.

    http://uk.farnell.com/te-connectivi...pn=true&categoryId=&searchRef=SearchLookAhead
    • Like Like x 2
    crammy, May 3, 2016
    #61
  2. Foehn

    Foehn Member

    Joined:
    Nov 30, 2015
    Messages:
    132
    Occupation:
    Race ; Mechanic ; Simulation
    Location:
    France
    Balance:
    3Coins
    Ratings:
    +29 / 0 / -0
    My Motion Simulator:
    3DOF, SCN6
    Good Job and I'm very interested to follow you during your project
    • Like Like x 1
    Foehn, Jan 9, 2017
    #62
  3. mrt

    mrt Member

    Joined:
    Aug 31, 2013
    Messages:
    74
    Location:
    United Kingdom
    Balance:
    718Coins
    Ratings:
    +62 / 0 / -0
    My Motion Simulator:
    3DOF, SCN6

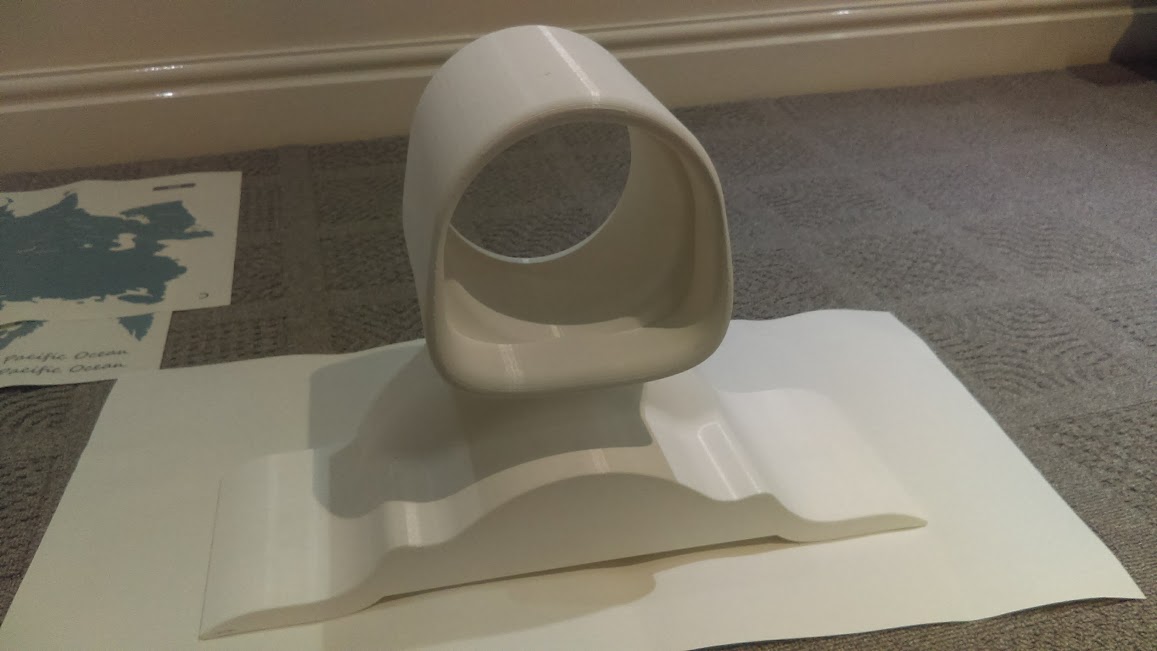

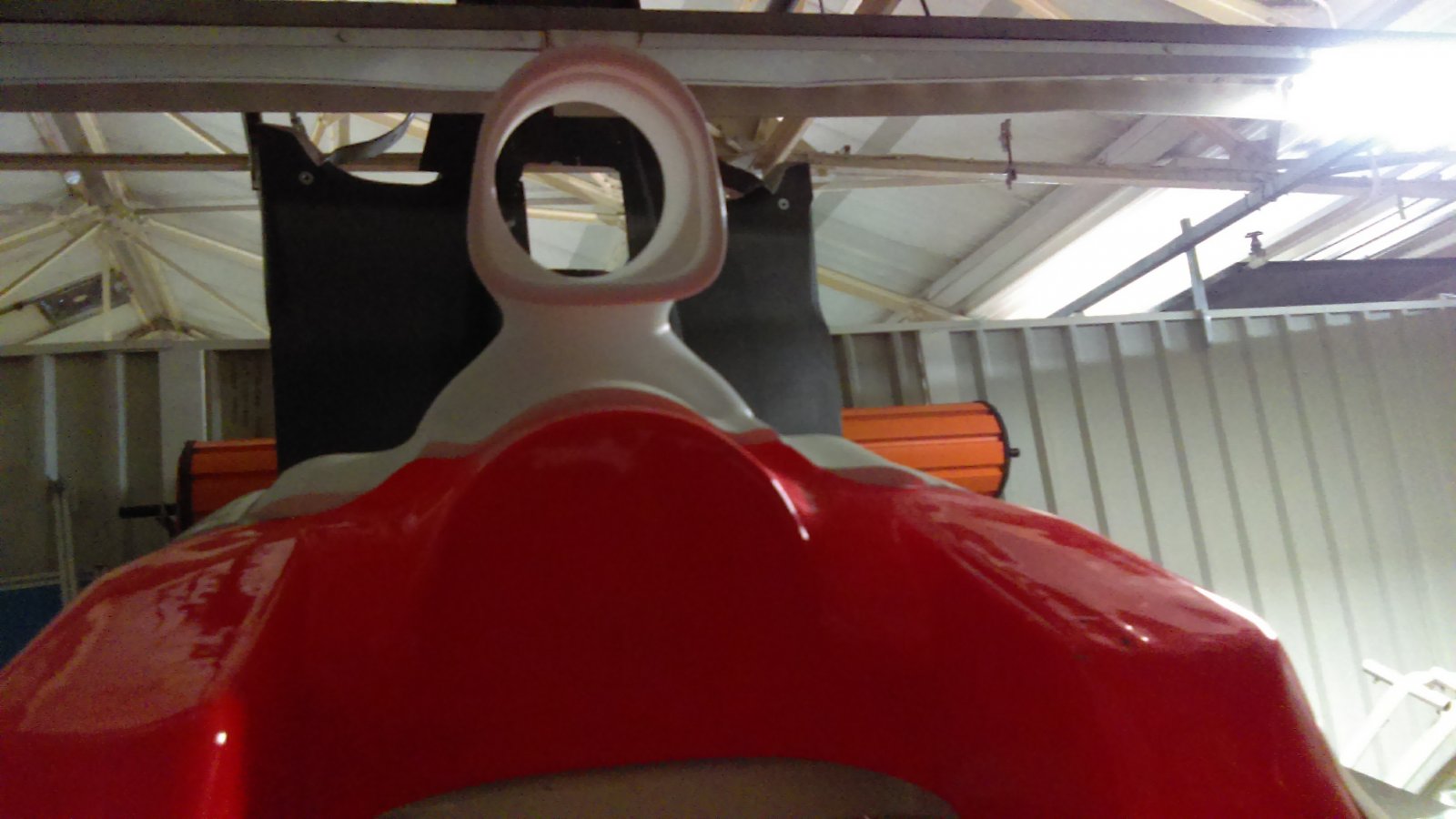

    So I'm back on this project as its been left to one side with other projects . So to aid the aesthetics of the cockpit I had a 3d printed roll hoop made ! This took about three days to print IMAG0885.jpg IMAG0912.jpg
    • Like Like x 6
    mrt, Aug 31, 2017
    #63
  4. hideki

    hideki Active Member

    Joined:
    Feb 3, 2014
    Messages:
    169
    Location:
    Spain
    Balance:
    - 208Coins
    Ratings:
    +52 / 1 / -0
    My Motion Simulator:
    2DOF, SCN5
    WOW! Very nice. The red part, is it gel coat, top coat or just paint? How do you smooth the PLA? ABS is easier... It looks fantastic!
    hideki, Sep 1, 2017
    #64
  5. mrt

    mrt Member

    Joined:
    Aug 31, 2013
    Messages:
    74
    Location:
    United Kingdom
    Balance:
    718Coins
    Ratings:
    +62 / 0 / -0
    My Motion Simulator:
    3DOF, SCN6
    The red head surround is an actual headrest although it would be good to have it drawn up for 3d printing.
    • Like Like x 1
    mrt, Sep 1, 2017
    #65
  6. hideki

    hideki Active Member

    Joined:
    Feb 3, 2014
    Messages:
    169
    Location:
    Spain
    Balance:
    - 208Coins
    Ratings:
    +52 / 1 / -0
    My Motion Simulator:
    2DOF, SCN5
    I see. but I wanted to know also what you used to have that smooth look. Thanks!
    hideki, Sep 1, 2017
    #66
  7. mrt

    mrt Member

    Joined:
    Aug 31, 2013
    Messages:
    74
    Location:
    United Kingdom
    Balance:
    718Coins
    Ratings:
    +62 / 0 / -0
    My Motion Simulator:
    3DOF, SCN6
    So haven't posted in a while. As this project has been on the back burner. But im back on it now

    A few pictures below in no particular order

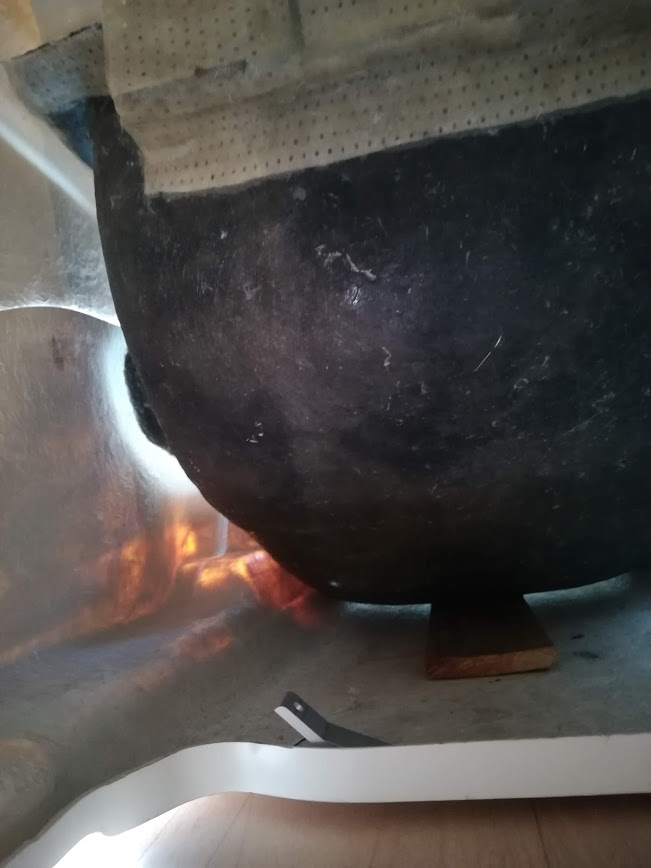

    seat back.png

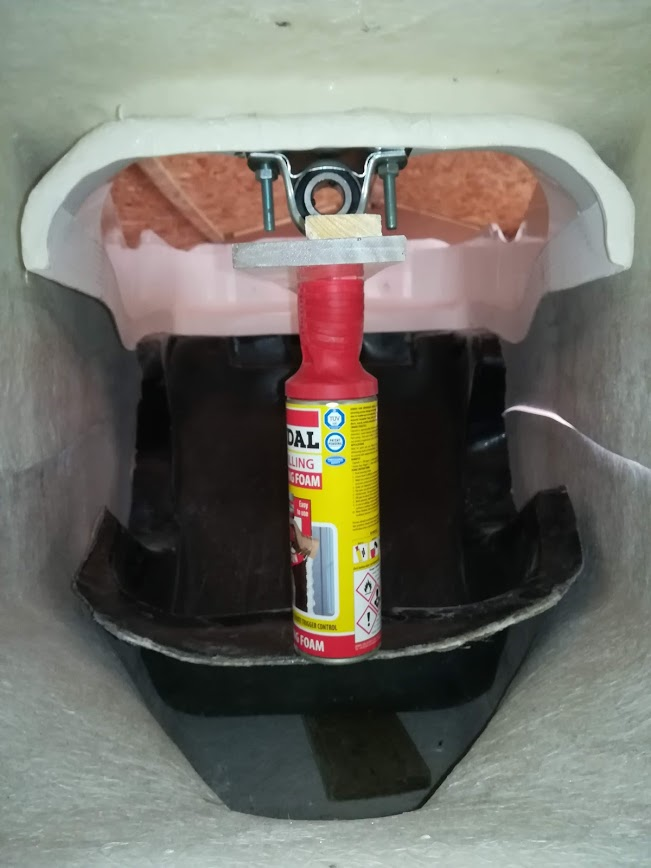

    View of the seat from the back of the monocoque im currently working on a supportive frame for the seat .Eventually I will add a seatbelt(maybe as far as a seat belt tentioner) and a tactile transducer to the back of the seat. Below a view of the seat from the front of the cockpit.

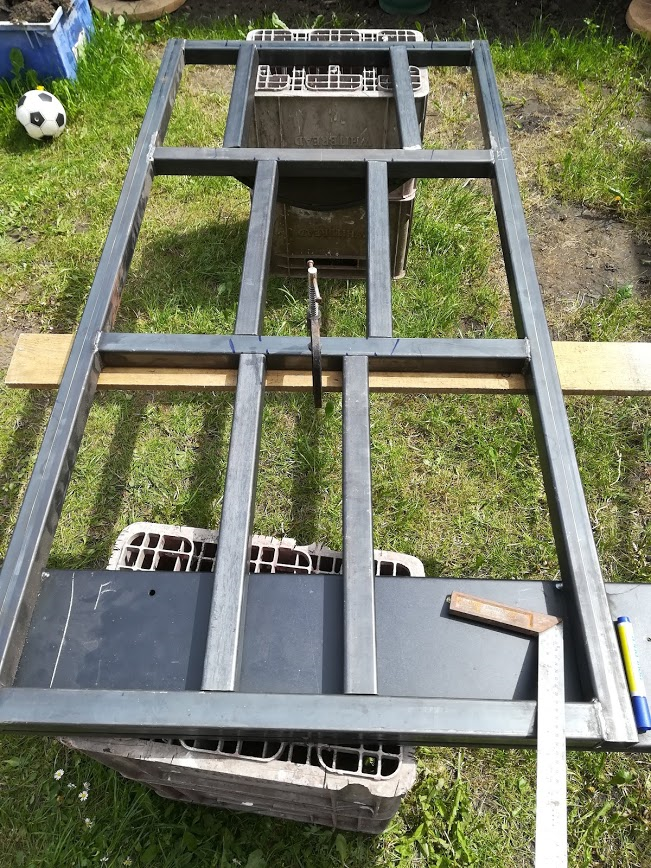

    The motion frame with some additional pieces the follow the shape of the monocoque. I will cover this with some plywood and maybe some black vinyl eventually. The idea being is that I will secure the monocoque to this platform with bolts.

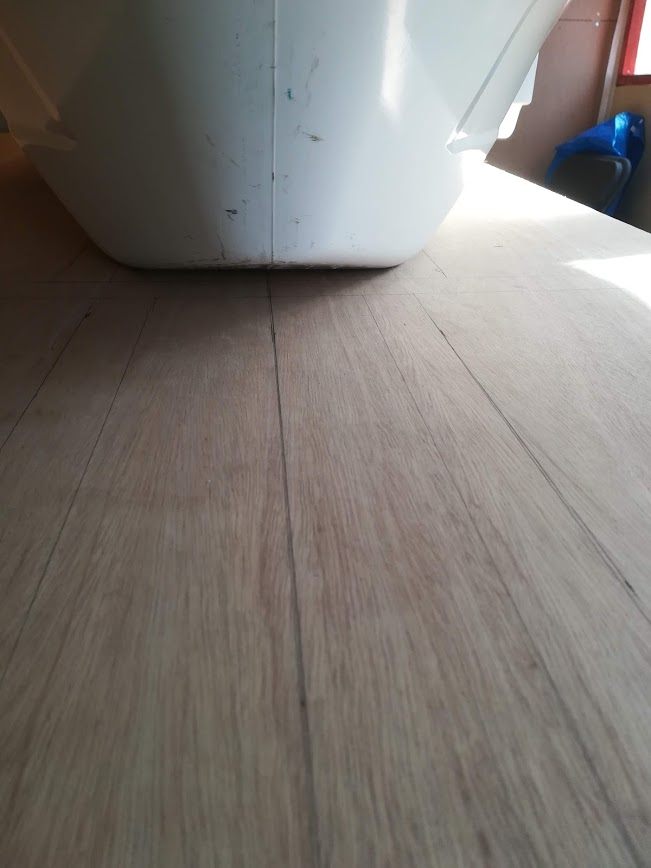

    Marking up the plywood prior to drilling . Luckly the cockpit has a center mould mark which has made it easier to line up in the center of the platform
    floor2.png seat back.png



    Prior to securing the monocoque to the platform I will do another weight test to determine how for forward/back the monocoque is placed in relation to the actuators and the rear pivot.
    • Like Like x 1
    mrt, Jun 6, 2018
    #67
  8. mrt

    mrt Member

    Joined:
    Aug 31, 2013
    Messages:
    74
    Location:
    United Kingdom
    Balance:
    718Coins
    Ratings:
    +62 / 0 / -0
    My Motion Simulator:
    3DOF, SCN6

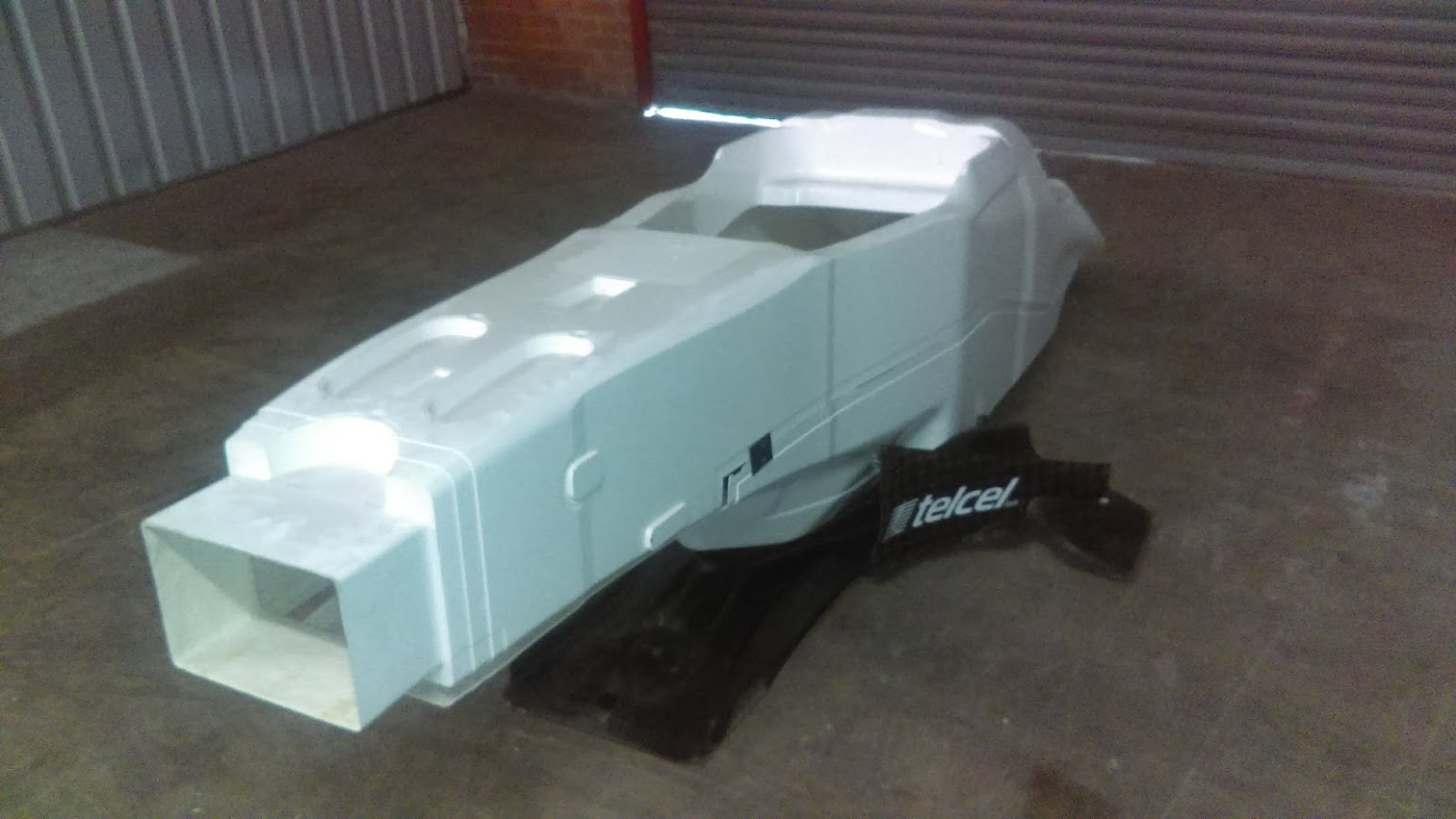

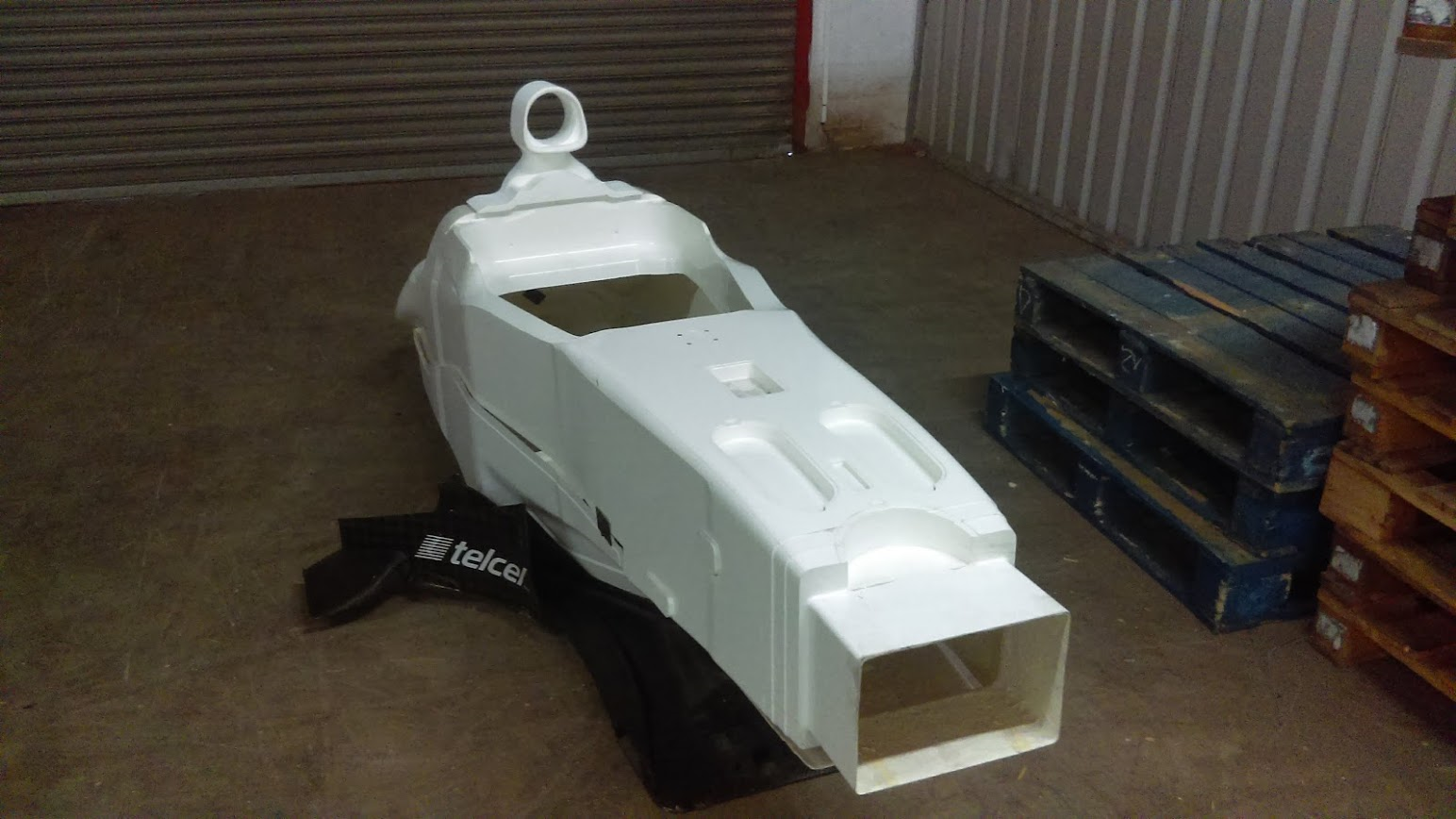

    Managed to pick up an ex force india T tray with bardge boards still attached. With a slight bit of modification this would fit. Although they may get in the way of climbing in and out of the cockpit so haven't decided if I will use them . barge boards.png 11.png
    • Like Like x 3
    Last edited: Jun 6, 2018
    mrt, Jun 6, 2018
    #68
  9. dualclick76

    dualclick76 Active Member

    Joined:
    Mar 23, 2015
    Messages:
    163
    Location:
    italia
    Balance:
    11Coins
    Ratings:
    +40 / 0 / -2
    My Motion Simulator:
    2DOF, DC motor, Arduino
    this is an incredible job, congratulations
    dualclick76, Jun 7, 2018
