First attempt at a 2DOF motion sim

Discussion in 'DIY Motion Simulator Projects' started by SilentChill, Jul 24, 2014.

Page 6 of 8
  1. Archie

    Archie Eternal tinkerer

    Joined:
    Dec 31, 2014
    Messages:
    1,081
    Location:
    Wollongong, NSW, AU
    Balance:
    3,796Coins
    Ratings:
    +1,379 / 4 / -0
    My Motion Simulator:
    2DOF, DC motor, JRK
    I think I need to think about traction loss for my sim after watching that video....... :D
    • Agree Agree x 2
    • Like Like x 1
    Archie, May 13, 2015
    #101
  2. SilentChill

    SilentChill Problem Maker

    Joined:
    Jul 19, 2014
    Messages:
    2,643
    Occupation:
    Railway Maintenance
    Location:
    Morecambe, Lancashire, England
    Balance:
    20,557Coins
    Ratings:
    +3,487 / 34 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 6DOF
    Another update video with the fans working as they should :) Sorry about the noise but I cant hear the im the rift and my headphones on :D





    • Like Like x 4
    Last edited: May 14, 2015
    SilentChill, May 14, 2015
    #102
  3. francky foor

    francky foor Member

    Joined:
    May 10, 2015
    Messages:
    107
    Location:
    france (nord)
    Balance:
    347Coins
    Ratings:
    +19 / 1 / -0
    My Motion Simulator:
    2DOF, SCN6
    excellent!!:thumbs
    francky foor, May 14, 2015
    #103
  4. Archie

    Archie Eternal tinkerer

    Joined:
    Dec 31, 2014
    Messages:
    1,081
    Location:
    Wollongong, NSW, AU
    Balance:
    3,796Coins
    Ratings:
    +1,379 / 4 / -0
    My Motion Simulator:
    2DOF, DC motor, JRK
    "I feel like a midget though..." Brilliant :D
    • Funny Funny x 1
    Archie, May 15, 2015
    #104
  5. speedy

    speedy Well-Known Member

    Joined:
    Feb 1, 2012
    Messages:
    1,193
    Location:
    Alexandria , Egypt
    Balance:
    7,931Coins
    Ratings:
    +1,287 / 10 / -0
    My Motion Simulator:
    3DOF, AC motor, Arduino, Motion platform
    Thanks @RaceRay for making this thread sticky ... just to give this smart guy a Big Thank You .

    • Like Like x 1
    • Agree Agree x 1
    speedy, May 16, 2015
    #105
  6. francky foor

    francky foor Member

    Joined:
    May 10, 2015
    Messages:
    107
    Location:
    france (nord)
    Balance:
    347Coins
    Ratings:
    +19 / 1 / -0
    My Motion Simulator:
    2DOF, SCN6
    the Wind :think:sos
    • Funny Funny x 1
    francky foor, May 16, 2015
    #106
  7. dmk90

    dmk90 New Member

    Joined:
    May 2, 2015
    Messages:
    5
    Location:
    Brisbane, Australia
    Balance:
    258Coins
    Ratings:
    +0 / 0 / -0
    My Motion Simulator:
    2DOF, Arduino, Motion platform
    Hey mate, great thread! .. love your traction loss setup. I'm definitely going to be doing the same.
    Got some questions for you.
    1. How heavy do you reckon your current rig is?
    2. How many moto monsters are you using? .. 1 per motor?
    dmk90, May 17, 2015
    #107
  8. SilentChill

    SilentChill Problem Maker

    Joined:
    Jul 19, 2014
    Messages:
    2,643
    Occupation:
    Railway Maintenance
    Location:
    Morecambe, Lancashire, England
    Balance:
    20,557Coins
    Ratings:
    +3,487 / 34 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 6DOF
    I use 1 MM per motor so I have 3 in total. And it is heavy lol I have no idea of actual weight.
    SilentChill, May 17, 2015
    #108
  9. nachofly

    nachofly New Member

    Joined:
    May 25, 2015
    Messages:
    6
    Balance:
    274Coins
    Ratings:
    +1 / 0 / -0
    thanx a lot Craig, im gonna use this as a guide line to build my own....i cheked all the items you bought on ebay...but im not sure how did you set them up, i guess im gonna had to use my imagination...and more reading...best regards
    nachofly, May 25, 2015
    #109
  10. SilentChill

    SilentChill Problem Maker

    Joined:
    Jul 19, 2014
    Messages:
    2,643
    Occupation:
    Railway Maintenance
    Location:
    Morecambe, Lancashire, England
    Balance:
    20,557Coins
    Ratings:
    +3,487 / 34 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 6DOF
    @nachofly Welcome !

    Yes you need to do lots of reading of the forums, also don't forget the FAQ section lots of good information there too.

    Good luck with your build :)
    SilentChill, May 25, 2015
    #110
  11. SilentChill

    SilentChill Problem Maker

    Joined:
    Jul 19, 2014
    Messages:
    2,643
    Occupation:
    Railway Maintenance
    Location:
    Morecambe, Lancashire, England
    Balance:
    20,557Coins
    Ratings:
    +3,487 / 34 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 6DOF
    PIKES PEAK DIRT RALLY :)

    • Like Like x 1
    SilentChill, May 26, 2015
    #111
  12. SilentChill

    SilentChill Problem Maker

    Joined:
    Jul 19, 2014
    Messages:
    2,643
    Occupation:
    Railway Maintenance
    Location:
    Morecambe, Lancashire, England
    Balance:
    20,557Coins
    Ratings:
    +3,487 / 34 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 6DOF

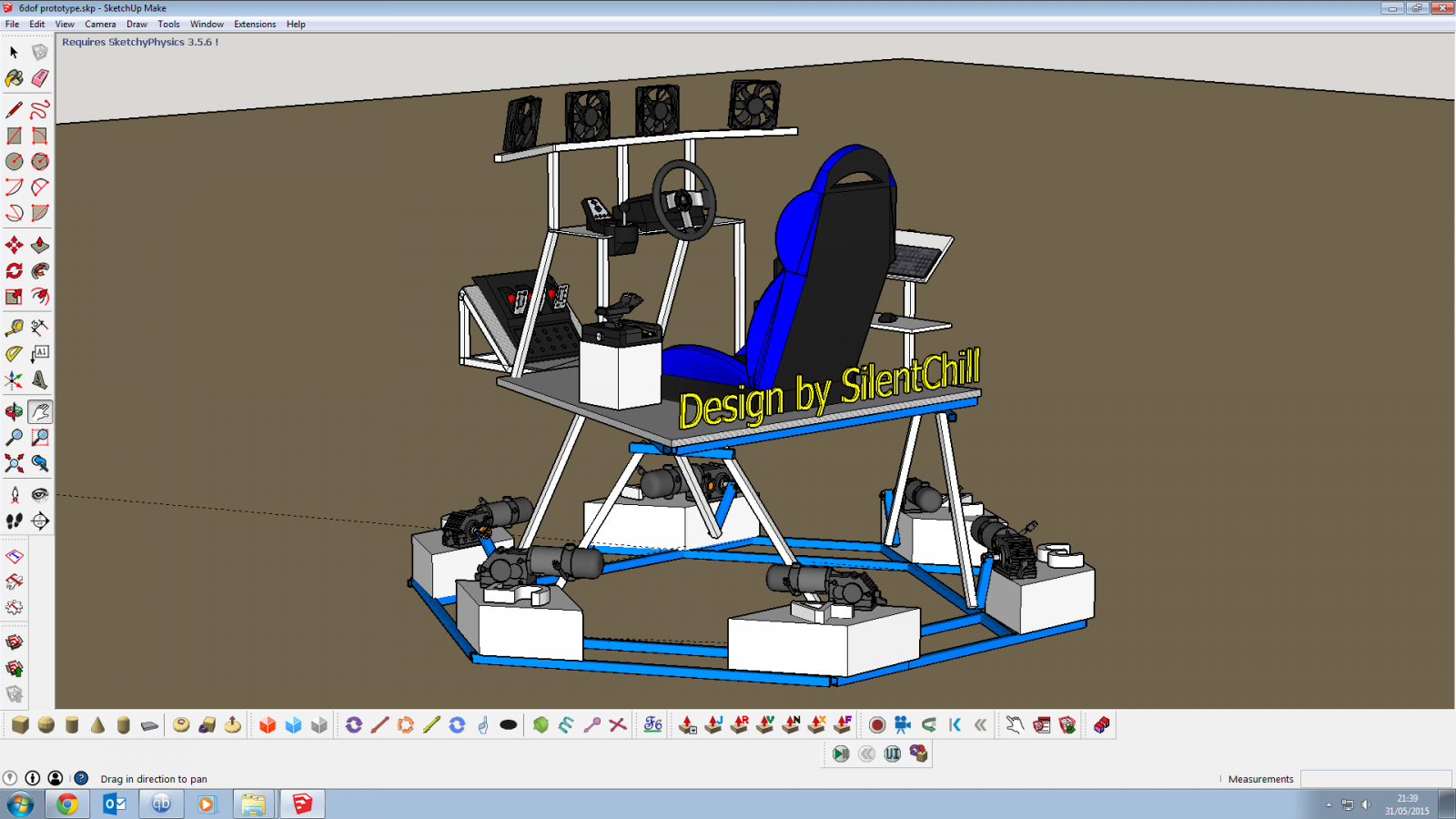

    RIP my little one time for an upgrade and i'm afraid I need your motors. Its been emotional

    New topic to follow once I finish the sketchup, which I can say has been an experience in itself to learn how to use but I got it hooked up to SimTools and everything working.

    • Like Like x 1
    SilentChill, May 31, 2015
    #112
  13. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    21,038
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    147,926Coins
    Ratings:
    +10,881 / 54 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    noorbeast, Jun 1, 2015
    #113
  14. nachofly

    nachofly New Member

    Joined:
    May 25, 2015
    Messages:
    6
    Balance:
    274Coins
    Ratings:
    +1 / 0 / -0
    +1 here, still having a hard time to fin the proper DC motors...want something powerful... but i could only fin 1200 US per piece...which is off my budget.....ive been following all your videos and post man...are you sharing that sketch????
    nachofly, Jun 1, 2015
    #114
  15. nachofly

    nachofly New Member

    Joined:
    May 25, 2015
    Messages:
    6
    Balance:
    274Coins
    Ratings:
    +1 / 0 / -0
    this might be a good option???

    i cant post links cause im a nooooob....


    here are the specs

    NEW MILITARY SURPLUS UNIT


    Motor with Manual Brake OR 24VDC ELECTRIC BRAKE

    0.67HP / 7000 RPM AT FULL LOAD

    24VDC / 39AMPS AT FULL LOAD

    NSN: 6105-01-241-4944

    LAB TEST:

    INPUT VOLTAGE: 6VDC....4500 RPM @ 7.5AMPS NO LOAD

    12VDC....10,500 RPM @ 8.5 AMPS NO LOAD

    24VDC....18,000 RPM @ 11 AMPS NO LOAD

    Duty Intermittent: 1 min. @ full load / Followed by 3 min. rest


    ALSO CAN OPERATE CONTINUOUS AT LIGHTER LOADS


    This unit was made for the US military…very high quality..cost was several thousand dollars each





    Motor Dimensional Specs


    Motor Length – 7 ¾”

    Motor Width w/ Side Connector – 5”

    NEMA 34 Mount

    Shaft Dia. - .4800”

    Shaft Length - .905”

    Motor Has a Pinon Shaft with 13 teeth

    WEIGHT: 8.25 LBS

    COMES WITH WIRING DATA

    i also saw that you like airplanes, are you pilot??...
    Last edited: Jun 1, 2015
    nachofly, Jun 1, 2015
    #115
  16. SilentChill

    SilentChill Problem Maker

    Joined:
    Jul 19, 2014
    Messages:
    2,643
    Occupation:
    Railway Maintenance
    Location:
    Morecambe, Lancashire, England
    Balance:
    20,557Coins
    Ratings:
    +3,487 / 34 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 6DOF
    @noorbeast The motors I have have a label on saying 125w 13.5 amps 100rpm however I think they are much more than that. I have 13cm arms on them at the moment and I have had a clamp meter on they are pulling more than 30-40amps . Even with hours of use they don't get hot they are just warm. I have no idea why they are labelled so low I'm sure they'd pull 60-70amps if I had the power supply and mm's to try. I can't even turn the power in scn to the top as they cut the psu's cut out all the time I think it is only set at 180 at the moment. I have new 65amp psu's for the new build and also 2 xmm's per motor.

    They are big motors so I think they will easily cope with the platform weight that I will make.

    All will be revealed soon. :D
    • Like Like x 1
    SilentChill, Jun 1, 2015
    #116
  17. SilentChill

    SilentChill Problem Maker

    Joined:
    Jul 19, 2014
    Messages:
    2,643
    Occupation:
    Railway Maintenance
    Location:
    Morecambe, Lancashire, England
    Balance:
    20,557Coins
    Ratings:
    +3,487 / 34 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 6DOF
    @nachofly What gearbox are on those motors. The specs look good but I'm not an expert at all I just try stuff and if it works it works.

    I'm not a pilot no lol. Wish I was, I do like casual flight simming but not too serious.
    SilentChill, Jun 1, 2015
    #117
  18. nachofly

    nachofly New Member

    Joined:
    May 25, 2015
    Messages:
    6
    Balance:
    274Coins
    Ratings:
    +1 / 0 / -0
    i also saw that you like airplanes, are you pilot??...man i wish i could up load the pictures or even give you the link...

    i uploaded a pic of it.

    im not an expert either as you can see...pretty much obvious... but i dont think this items have a gear in it.

    i found a good source of info for a 6DOF... ill post it tomorrow, its 4:20 AM here and i gotta work tomorrow... so yeah.... nite nite for me.

    Attached Files:

    nachofly, Jun 1, 2015
    #118
  19. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    21,038
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    147,926Coins
    Ratings:
    +10,881 / 54 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    The performance does indeed suggest the stated specs are way off. Are they easy to come by, as many European members are looking for suitable motors?
    noorbeast, Jun 1, 2015
    #119
  20. SilentChill

    SilentChill Problem Maker

    Joined:
    Jul 19, 2014
    Messages:
    2,643
    Occupation:
    Railway Maintenance
    Location:
    Morecambe, Lancashire, England
    Balance:
    20,557Coins
    Ratings:
    +3,487 / 34 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 6DOF
    They are Italian make and they are not cheap, but I take them out of dead bits of machinery at work so guess I'm little lucky. Although been hard to come by as of late.

    http://www.transtecno.com/en-en/.
    SilentChill, Jun 1, 2015
    #120
