Showroom **RIP** - 6DOF project using 12v DC Motors, Sabertooth 2x60's (was MM's) and Arduinos + OSW

Discussion in 'DIY Motion Simulator Projects' started by SilentChill, Jun 2, 2015.

Page 2 of 50
  1. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    21,030
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    147,878Coins
    Ratings:
    +10,880 / 54 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    The lighter you can keep things the better.

    What brand is the seat, it does not have the usual logos splashed over it?
    noorbeast, Jun 5, 2015
    #21
  2. Leo Burton

    Leo Burton Active Member

    Joined:
    Jul 23, 2014
    Messages:
    163
    Location:
    London, UK
    Balance:
    2,625Coins
    Ratings:
    +129 / 1 / -2
    My Motion Simulator:
    2DOF, Arduino
    Did your last rig consist of a GameRacer Pro cockpit? Or did you build your own?
    Leo Burton, Jun 5, 2015
    #22
  3. SilentChill

    SilentChill Problem Maker

    Joined:
    Jul 19, 2014
    Messages:
    2,643
    Occupation:
    Railway Maintenance
    Location:
    Morecambe, Lancashire, England
    Balance:
    20,557Coins
    Ratings:
    +3,487 / 34 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 6DOF
    It was a game racer pro I just put on top of the pivot and yeah that was that ;)


    @noorbeast it was off ebay and cheap only £129 delivered it's unbranded so no logos
    SilentChill, Jun 5, 2015
    #23
  4. SilentChill

    SilentChill Problem Maker

    Joined:
    Jul 19, 2014
    Messages:
    2,643
    Occupation:
    Railway Maintenance
    Location:
    Morecambe, Lancashire, England
    Balance:
    20,557Coins
    Ratings:
    +3,487 / 34 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 6DOF

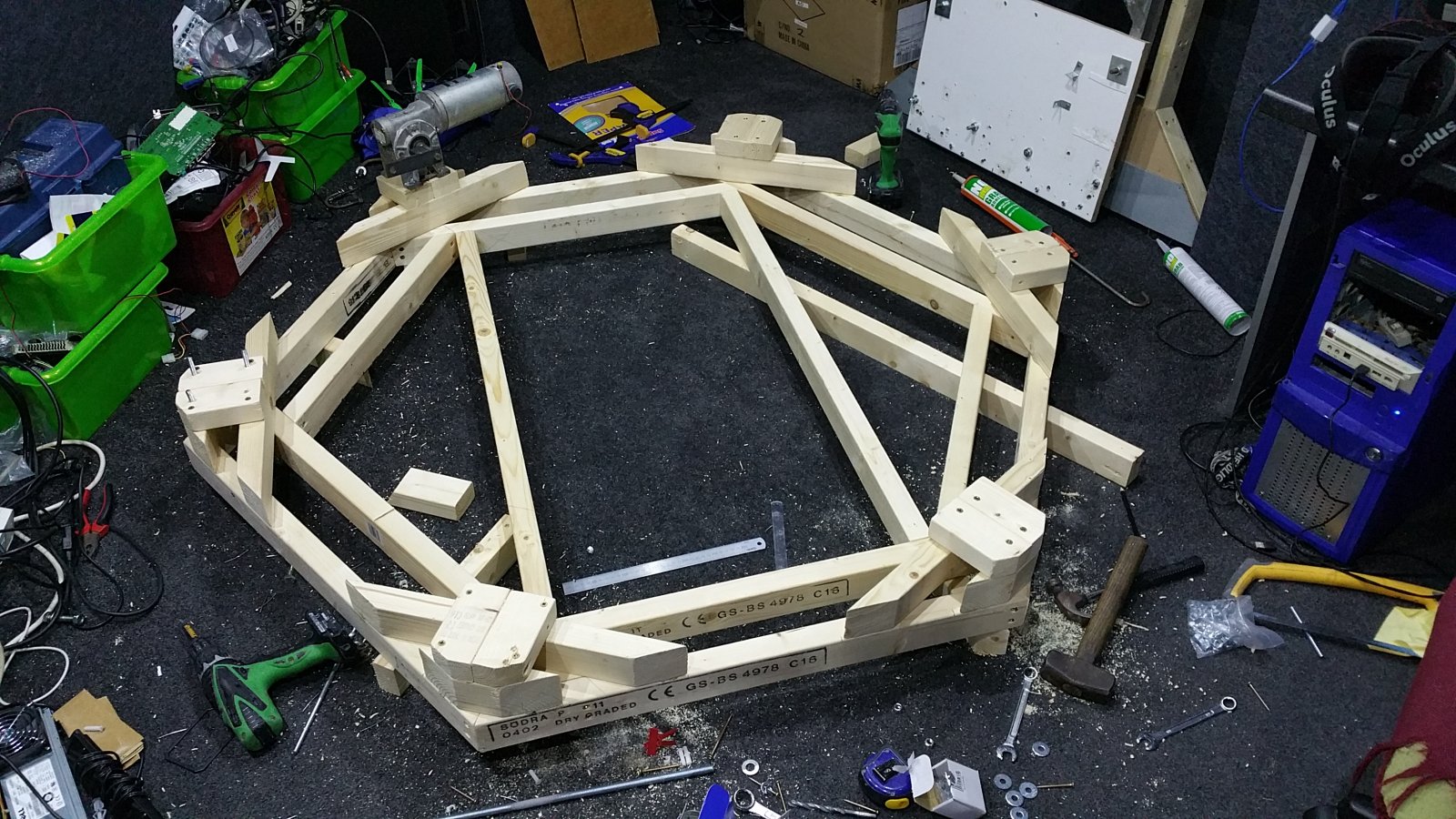

    Few more bits added time for mounting the rest of the motors 20150606_144659.jpg
    • Like Like x 8
    SilentChill, Jun 6, 2015
    #24
  5. SilentChill

    SilentChill Problem Maker

    Joined:
    Jul 19, 2014
    Messages:
    2,643
    Occupation:
    Railway Maintenance
    Location:
    Morecambe, Lancashire, England
    Balance:
    20,557Coins
    Ratings:
    +3,487 / 34 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 6DOF

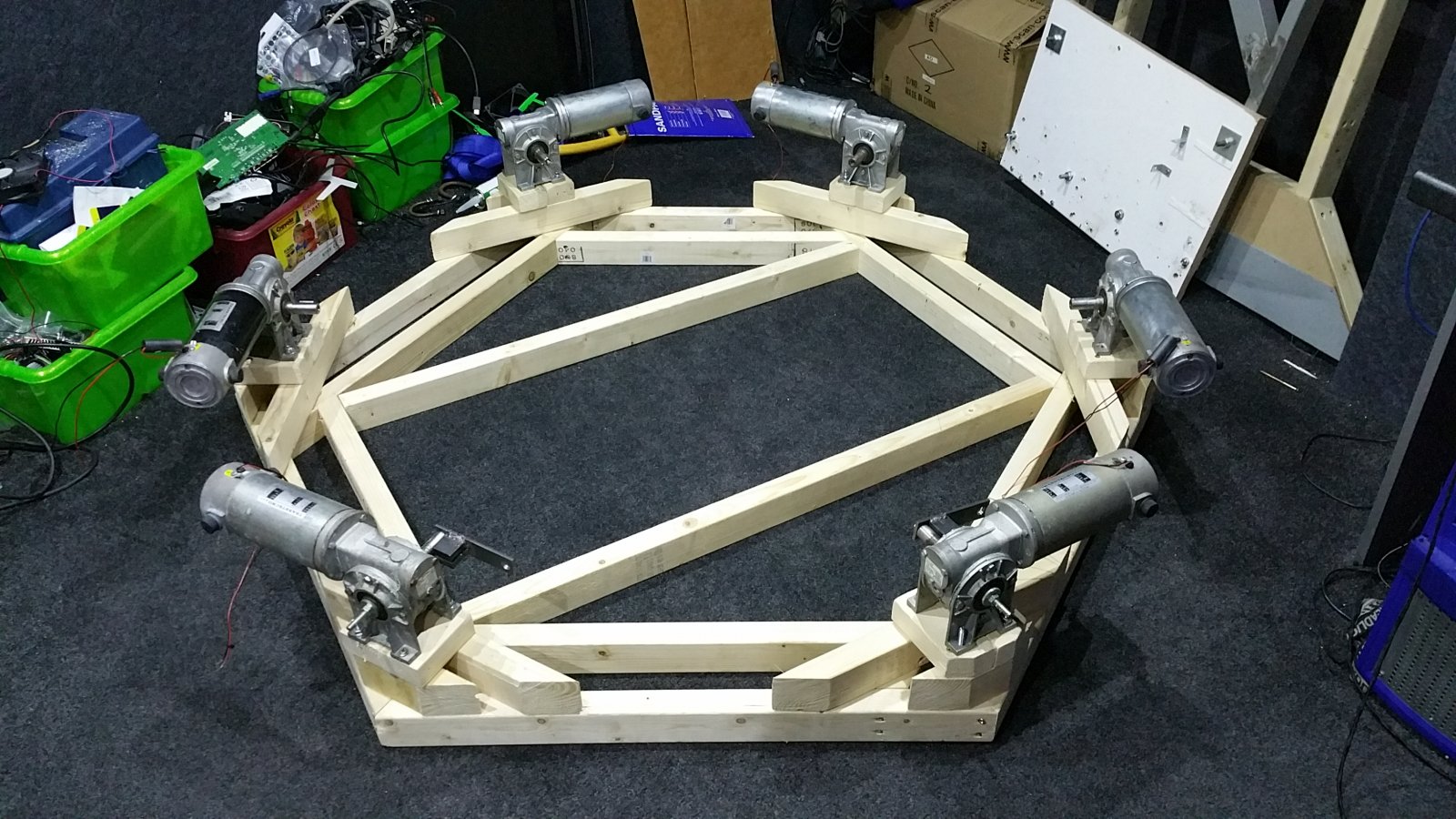

    All the motors are now in position :) 20150606_212733.jpg
    • Like Like x 10
    • Winner Winner x 2
    SilentChill, Jun 6, 2015
    #25
  6. SilentChill

    SilentChill Problem Maker

    Joined:
    Jul 19, 2014
    Messages:
    2,643
    Occupation:
    Railway Maintenance
    Location:
    Morecambe, Lancashire, England
    Balance:
    20,557Coins
    Ratings:
    +3,487 / 34 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 6DOF

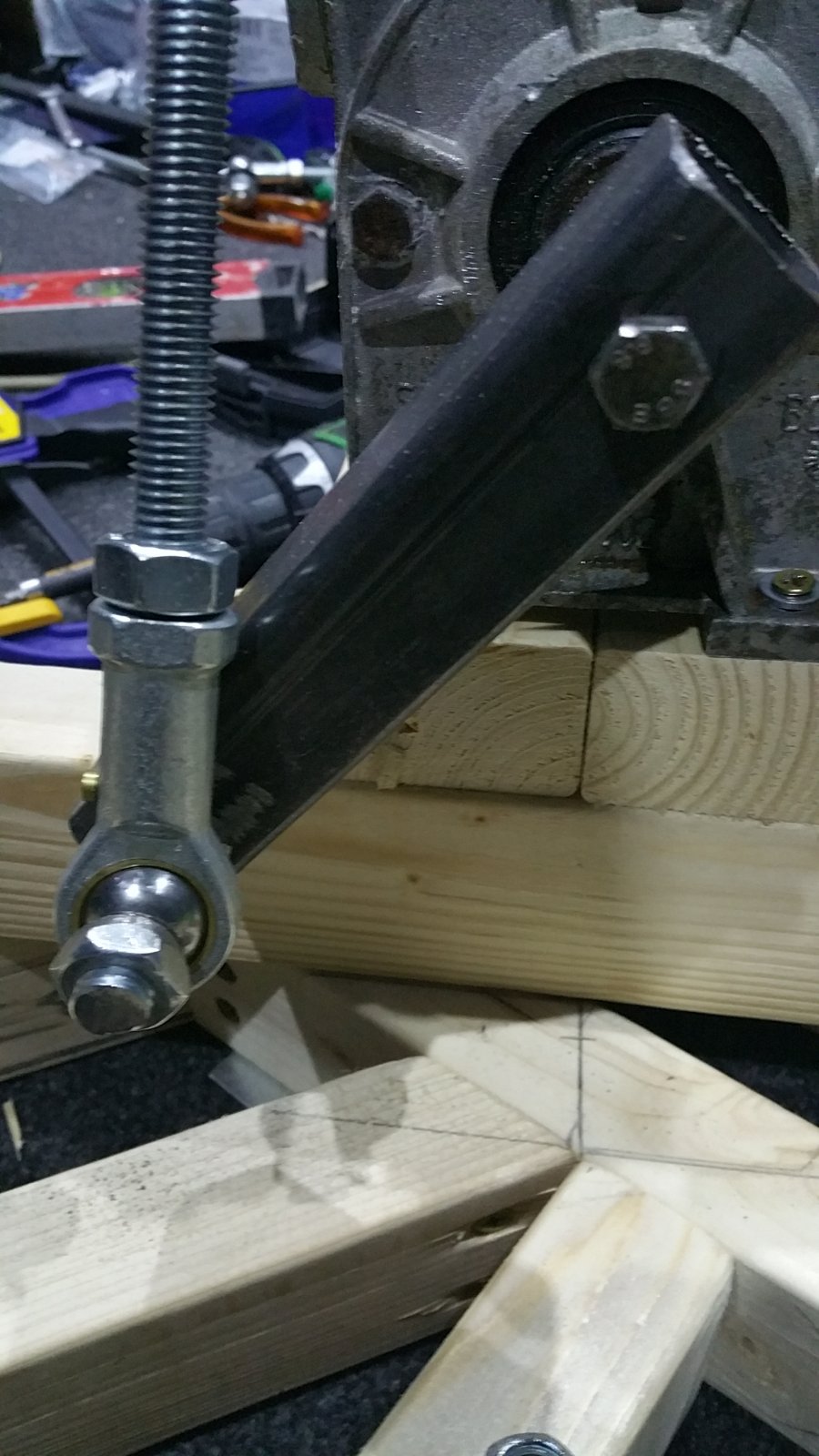

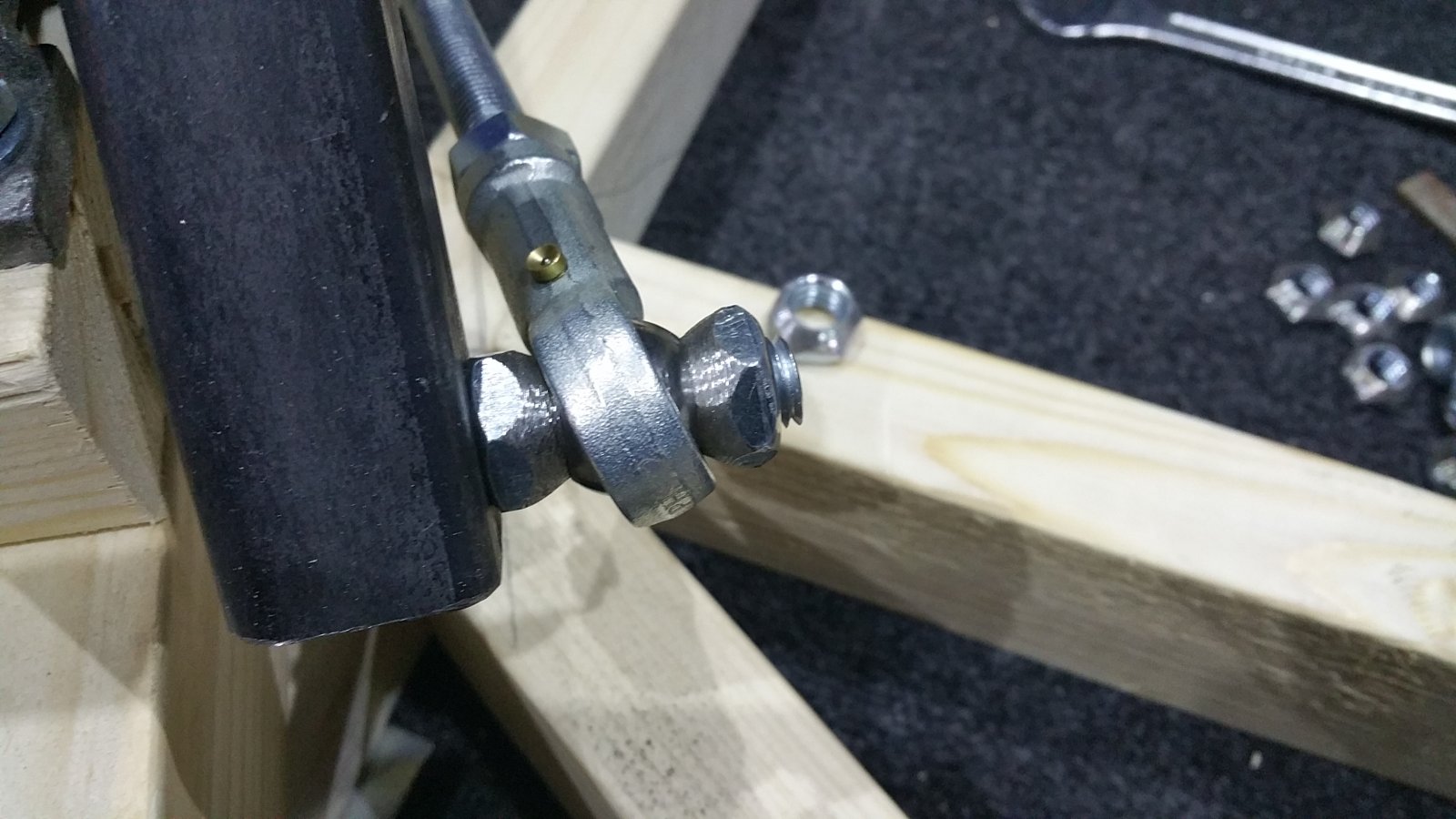

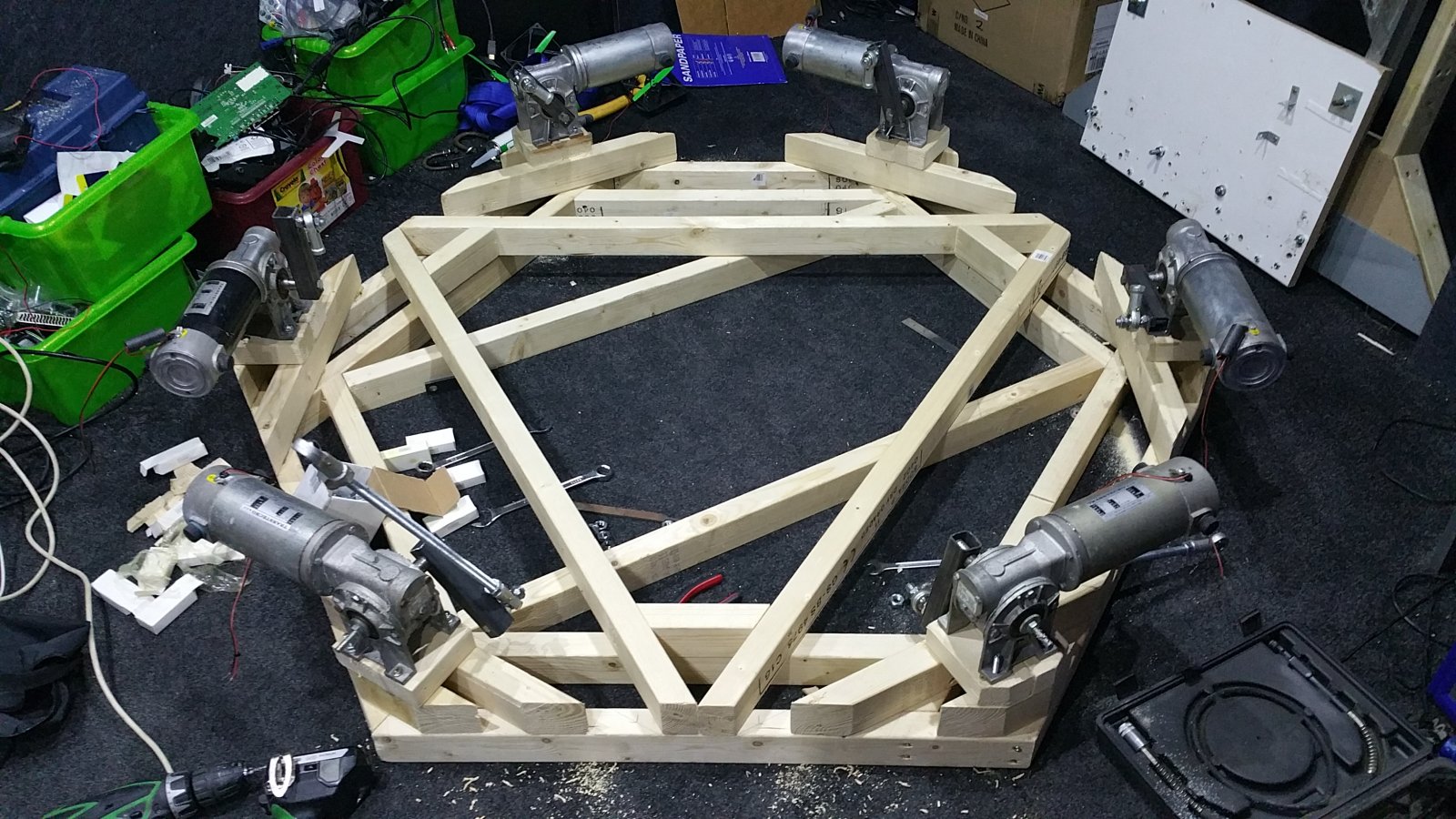

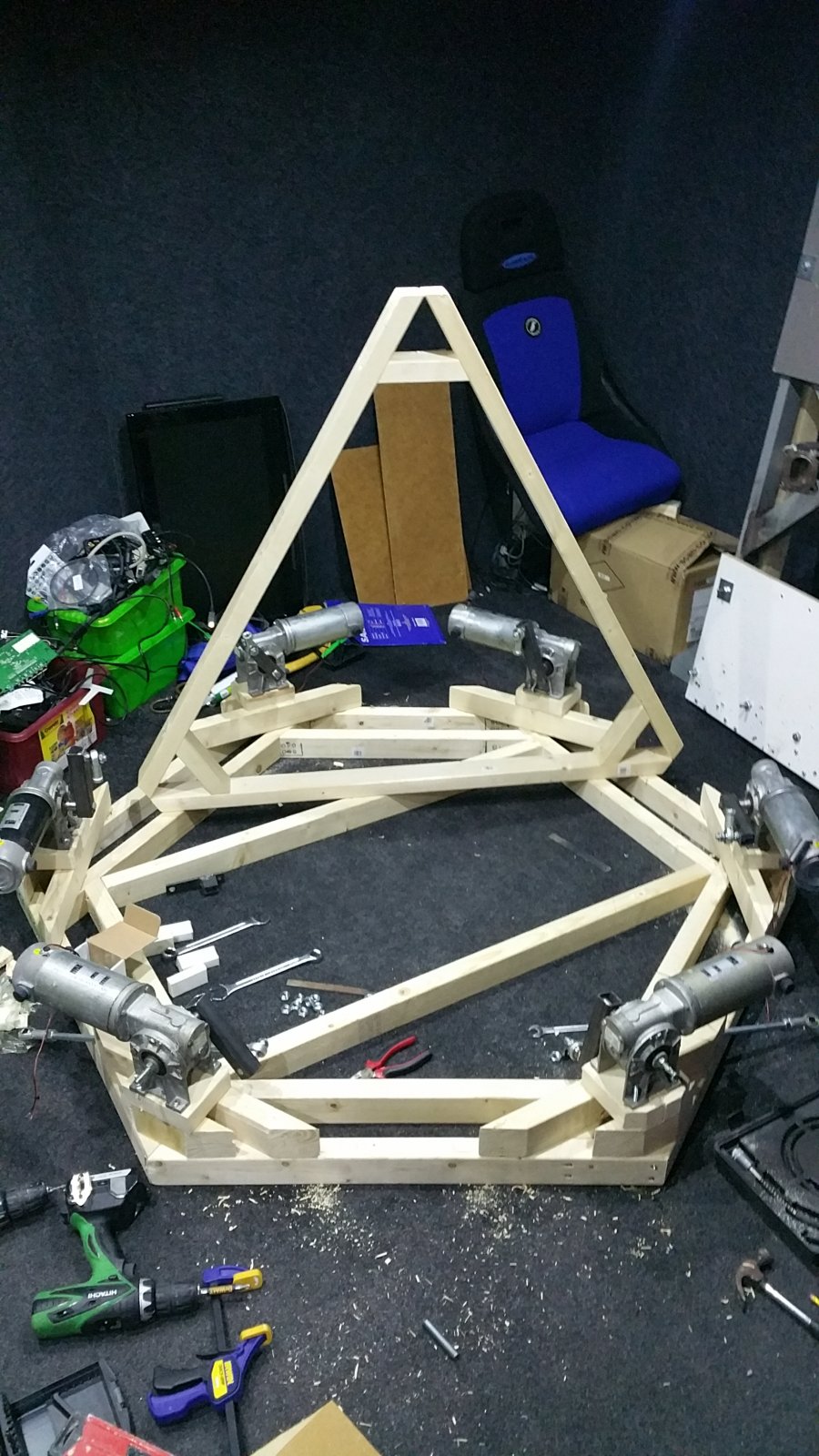

    Ok a lot of faffing about making levers and drilling holes.

    Got the Base shape of the platform done and think I got my measurements all right for the arms will have to see when I eventually mount it.

    20150607_220901.jpg 20150607_220924.jpg 20150607_220854.jpg 20150607_220958.jpg
    • Like Like x 12
    • Agree Agree x 1
    SilentChill, Jun 7, 2015
    #26
  7. Leo Burton

    Leo Burton Active Member

    Joined:
    Jul 23, 2014
    Messages:
    163
    Location:
    London, UK
    Balance:
    2,625Coins
    Ratings:
    +129 / 1 / -2
    My Motion Simulator:
    2DOF, Arduino
    This is coming together so quick! I'm super impressed at the speed you're getting this done. Can't wait to see it finished!
    • Agree Agree x 2
    • Like Like x 1
    Leo Burton, Jun 7, 2015
    #27
  8. SilentChill

    SilentChill Problem Maker

    Joined:
    Jul 19, 2014
    Messages:
    2,643
    Occupation:
    Railway Maintenance
    Location:
    Morecambe, Lancashire, England
    Balance:
    20,557Coins
    Ratings:
    +3,487 / 34 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 6DOF
    @Leo Burton yes I like to get stuff done quick as possible as I have no patience, I will hopefully have it up and moving by the end of the week. At least that's my plan :)
    • Like Like x 2
    • Optimistic Optimistic x 1
    SilentChill, Jun 7, 2015
    #28
  9. Pit

    Pit - - - - - - - - - - - - - - - - Gold Contributor

    Joined:
    Oct 2, 2013
    Messages:
    3,012
    Location:
    Switzerland
    Balance:
    30,438Coins
    Ratings:
    +3,089 / 31 / -0
    My Motion Simulator:
    DC motor, Arduino, 6DOF
    hehe, the optimistic button with best wishes to you :)
    • Like Like x 2
    Pit, Jun 8, 2015
    #29
  10. SeatTime

    SeatTime Well-Known Member

    Joined:
    Dec 27, 2013
    Messages:
    2,573
    Occupation:
    Retired
    Location:
    Brisbane Australia
    Balance:
    28,370Coins
    Ratings:
    +2,844 / 39 / -0
    My Motion Simulator:
    AC motor, Motion platform
    Coming along well, I certainly need some patience, as I'm making yet further modifications/improvements (now waiting for more parts) to my DIY actuators before I nail down the design and building all the others (back to a 6DOF - explain more later in my thread). How wide is your base - its hard to tell?
    • Like Like x 1
    SeatTime, Jun 8, 2015
    #30
  11. BlazinH

    BlazinH Well-Known Member

    Joined:
    Oct 19, 2013
    Messages:
    2,145
    Location:
    Oklahoma City, USA
    Balance:
    16,613Coins
    Ratings:
    +1,835 / 32 / -1
    I think wood is an excellent building material when it is designed properly so the stresses put on it don't end up tearing it apart! And it is easily cut and milled also making it faster to build with than steel; especially if you're not a welder! ;) Keep up the good work @SilentChill! :thumbs
    BlazinH, Jun 8, 2015
    #31
  12. tronicgr

    tronicgr

    Balance:
    Coins
    Ratings:
    +0 / 0 / -0
    Make sure that you use lots of 47000uF 50v caps in parallel with each PSU. Then it might work...
    tronicgr, Jun 8, 2015
    #32
  13. SilentChill

    SilentChill Problem Maker

    Joined:
    Jul 19, 2014
    Messages:
    2,643
    Occupation:
    Railway Maintenance
    Location:
    Morecambe, Lancashire, England
    Balance:
    20,557Coins
    Ratings:
    +3,487 / 34 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 6DOF
    @SeatTime the Base is 1370mm wide. Glad you have gone back to 6DOF can't wait to see you finally start building it

    Thanks @BlazinH there are lots of threaded bar holding it together along with screws :)

    @tronicgr hopefully I won't need the extra caps but will keep it in mind if it trips out.
    SilentChill, Jun 8, 2015
    #33
  14. SilentChill

    SilentChill Problem Maker

    Joined:
    Jul 19, 2014
    Messages:
    2,643
    Occupation:
    Railway Maintenance
    Location:
    Morecambe, Lancashire, England
    Balance:
    20,557Coins
    Ratings:
    +3,487 / 34 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 6DOF

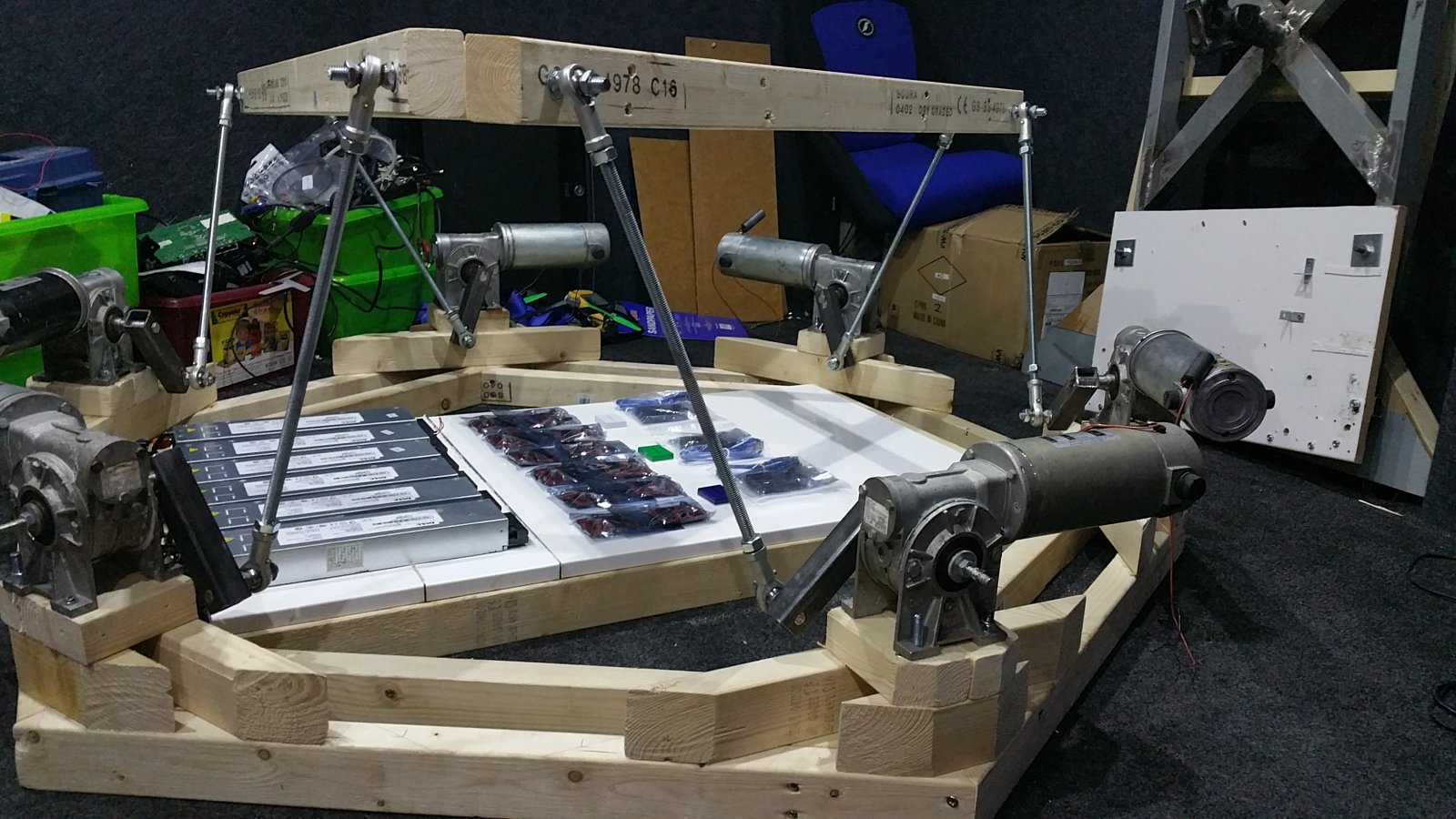

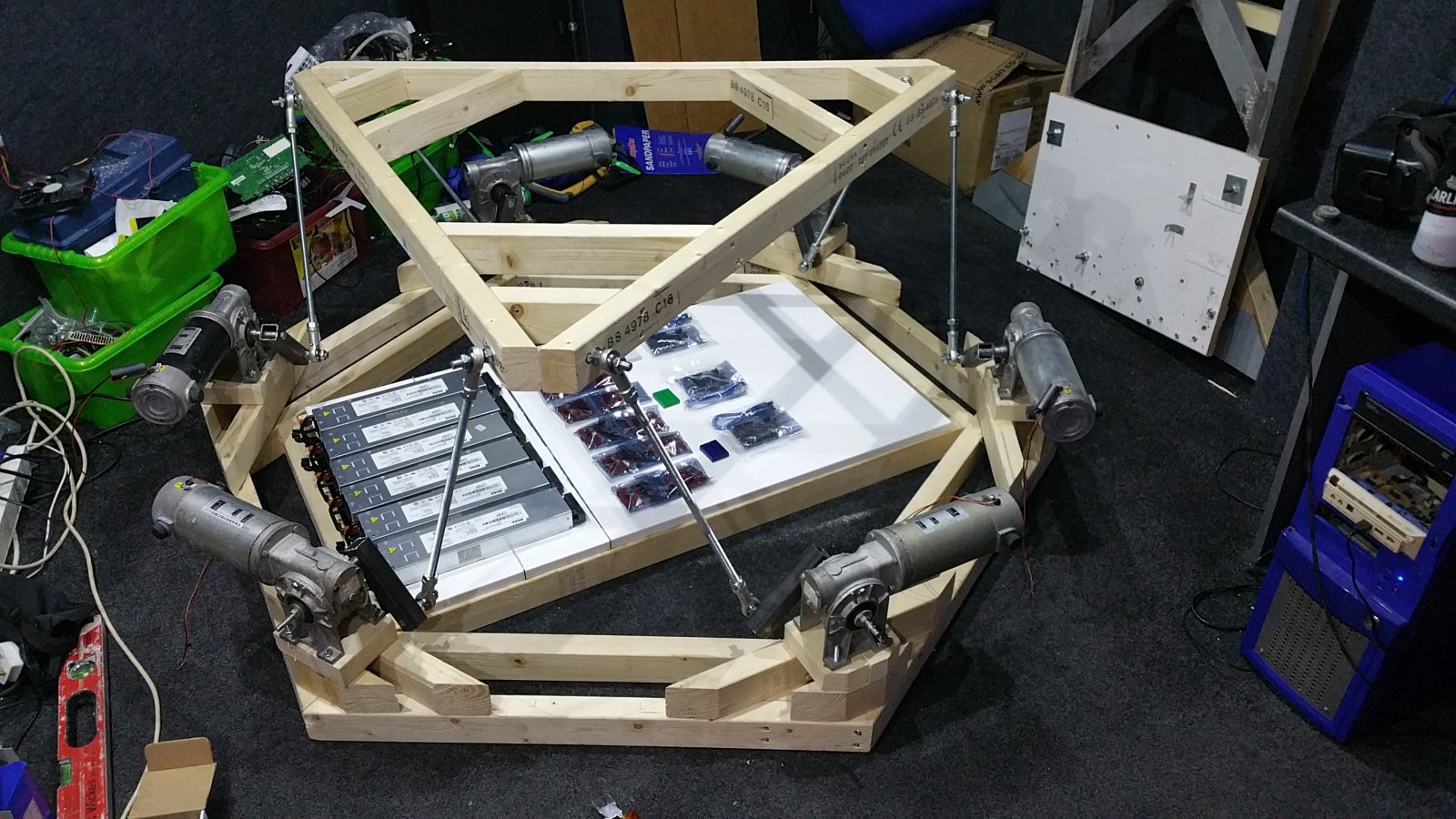

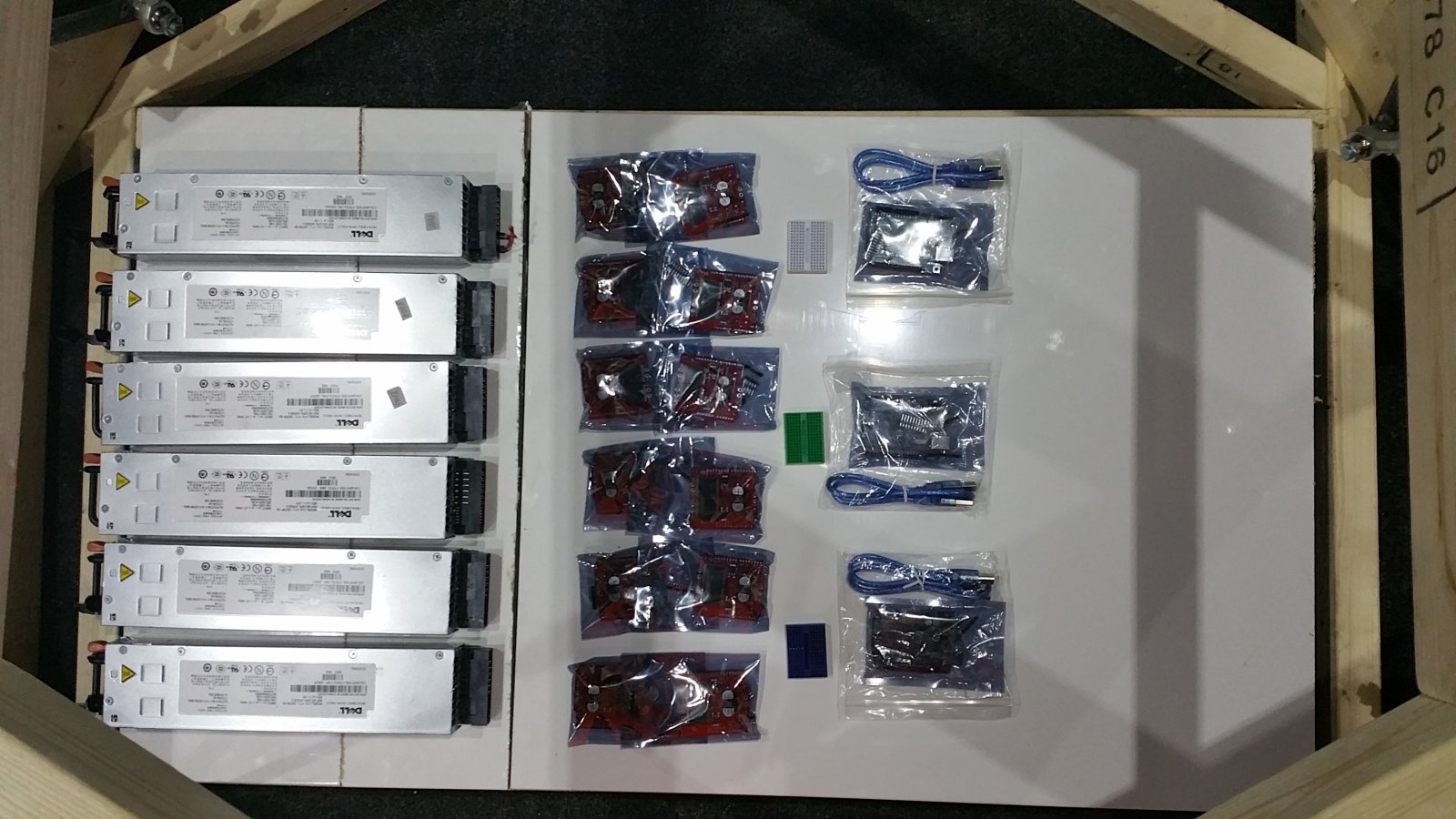

    Ok another quick update.

    Laid out where stuff gonna be there or there abouts.

    Get it all wired up fastened down and may be able to give it a test :eek:

    Probably will box it all in once I have it all up and running and it doesn't fall to pieces.

    I will probably will have to change a few things to firm and stiffen it up a bit once I have it working.

    20150608_205526.jpg 20150608_205532.jpg 20150608_205544.jpg

    Oh and make brackets for the hall pots can't forget those pesky things :thumbs
    • Like Like x 9
    • Winner Winner x 2
    SilentChill, Jun 8, 2015
    #34
  15. Paul Shortland

    Paul Shortland Active Member

    Joined:
    May 13, 2015
    Messages:
    154
    Location:
    Northampton - UK
    Balance:
    317Coins
    Ratings:
    +74 / 1 / -0
    My Motion Simulator:
    2DOF, AC motor
    Loving it :grin

    Is that M12 threaded rod you are using?
    • Like Like x 1
    • Old Old x 1
    Paul Shortland, Jun 8, 2015
    #35
  16. SilentChill

    SilentChill Problem Maker

    Joined:
    Jul 19, 2014
    Messages:
    2,643
    Occupation:
    Railway Maintenance
    Location:
    Morecambe, Lancashire, England
    Balance:
    20,557Coins
    Ratings:
    +3,487 / 34 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 6DOF
    Yes @Paul Shortland used it on my 3DOF and never ever had a problem with it and its cheap as chips from screwfix :)
    • Like Like x 2
    • Useful Useful x 1
    SilentChill, Jun 8, 2015
    #36
  17. Paul Shortland

    Paul Shortland Active Member

    Joined:
    May 13, 2015
    Messages:
    154
    Location:
    Northampton - UK
    Balance:
    317Coins
    Ratings:
    +74 / 1 / -0
    My Motion Simulator:
    2DOF, AC motor
    Yes was just there buying some M10 :thumbs (Bent my first one)

    Interesting that 6 x M12 will take the weight, one day I will try it!
    • Like Like x 1
    Paul Shortland, Jun 8, 2015
    #37
  18. Leo Burton

    Leo Burton Active Member

    Joined:
    Jul 23, 2014
    Messages:
    163
    Location:
    London, UK
    Balance:
    2,625Coins
    Ratings:
    +129 / 1 / -2
    My Motion Simulator:
    2DOF, Arduino
    Holy Crap! A 6 Dof Gimbal in 3 days! I can't believe it.

    Loving the daily updates. ;)

    Keep it going!
    • Like Like x 3
    Leo Burton, Jun 8, 2015
    #38
  19. Wanegain

    Wanegain Active Member

    Joined:
    Nov 6, 2013
    Messages:
    564
    Location:
    Bruxelles
    Balance:
    1,971Coins
    Ratings:
    +298 / 2 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 4DOF
    :eek:
    How can you be so fast o_O ??

    Incredible work !!

    Can't wait for the first video :popcorn

    Good luck !!:D
    • Like Like x 1
    Wanegain, Jun 8, 2015
    #39
  20. tronicgr

    tronicgr

    Balance:
    Coins
    Ratings:
    +0 / 0 / -0
    Obviously he is not married...
    • Agree Agree x 3
    • Funny Funny x 3
    • Like Like x 1
    tronicgr, Jun 8, 2015
