SimCalc by Tim McGuire

Discussion in 'Electronic and hardware generally' started by Tim McGuire, Jan 13, 2017.

Page 2 of 4
  1. Tim McGuire

    Tim McGuire "Forever a work in progress"

    Joined:
    Jul 26, 2015
    Messages:
    261
    Occupation:
    Electrical/Electronics Engineer
    Location:
    Canada
    Balance:
    2,184Coins
    Ratings:
    +314 / 2 / -0
    My Motion Simulator:
    3DOF, DC motor
    It's not squeezing the GUI elements when you make the window smaller? Or are you trying to scale down the window size? What resolution is your monitor?

    Point noted, I'll add it in the next version :)
    • Like Like x 2
    Tim McGuire, Mar 18, 2017
    #21
  2. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    21,162
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    148,658Coins
    Ratings:
    +10,915 / 54 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    My screen is 1920x1080, the app canvas does not recale in either full or smaller window.
    noorbeast, Mar 18, 2017
    #22
  3. Tim McGuire

    Tim McGuire "Forever a work in progress"

    Joined:
    Jul 26, 2015
    Messages:
    261
    Occupation:
    Electrical/Electronics Engineer
    Location:
    Canada
    Balance:
    2,184Coins
    Ratings:
    +314 / 2 / -0
    My Motion Simulator:
    3DOF, DC motor
    I'll take a look at the issue, I think I may have misconfigured something :p. I'll add it to my list of things to fix
    • Like Like x 2
    Tim McGuire, Mar 19, 2017
    #23
  4. ferslash

    ferslash Active Member

    Joined:
    Feb 8, 2011
    Messages:
    495
    Balance:
    4,798Coins
    Ratings:
    +181 / 2 / -0
    wow until now i saw your software it totally rocks, i will try to use it today :d

    best regards

    fer
    ferslash, May 29, 2017
    #24
  5. ferslash

    ferslash Active Member

    Joined:
    Feb 8, 2011
    Messages:
    495
    Balance:
    4,798Coins
    Ratings:
    +181 / 2 / -0
    no joy... i cant access the software by dropbox, where can i get it?
    ferslash, May 29, 2017
    #25
  6. Tim McGuire

    Tim McGuire "Forever a work in progress"

    Joined:
    Jul 26, 2015
    Messages:
    261
    Occupation:
    Electrical/Electronics Engineer
    Location:
    Canada
    Balance:
    2,184Coins
    Ratings:
    +314 / 2 / -0
    My Motion Simulator:
    3DOF, DC motor
    Ah, the link may have expired/I might have moved the file. My apologies, I will put it back up when I get home from work tonight!
    • Friendly Friendly x 2
    • Like Like x 1
    Tim McGuire, May 29, 2017
    #26
  7. Tim McGuire

    Tim McGuire "Forever a work in progress"

    Joined:
    Jul 26, 2015
    Messages:
    261
    Occupation:
    Electrical/Electronics Engineer
    Location:
    Canada
    Balance:
    2,184Coins
    Ratings:
    +314 / 2 / -0
    My Motion Simulator:
    3DOF, DC motor
    Alright, for some reason dropbox suddenly decided I don't get sharing permissions anymore, so I've put a drive link up in the original post for now until I can think of a more permanent solution.
    Tim McGuire, May 30, 2017
    #27
  8. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    21,162
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    148,658Coins
    Ratings:
    +10,915 / 54 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    @RaceRay as SimCalc is such an invaluable tool for DIY builders can it possibly be hosted on Xsimulator.net, it is about 18.5mb zipped?
    noorbeast, May 30, 2017
    #28
  9. Tim McGuire

    Tim McGuire "Forever a work in progress"

    Joined:
    Jul 26, 2015
    Messages:
    261
    Occupation:
    Electrical/Electronics Engineer
    Location:
    Canada
    Balance:
    2,184Coins
    Ratings:
    +314 / 2 / -0
    My Motion Simulator:
    3DOF, DC motor
    That'd definitely make things easier on me haha. I recall I had problems uploading it to my post as an attachment, but if we can make it work then that'd definitely be the easiest option.
    Tim McGuire, May 30, 2017
    #29
  10. RaceRay

    RaceRay Administrator Staff Member SimAxe Beta Tester

    Joined:
    Nov 8, 2006
    Messages:
    4,656
    Occupation:
    Self-employed | Web and application development
    Location:
    Hamburg, Germany
    Balance:
    23,864Coins
    Ratings:
    +2,010 / 13 / -0
    My Motion Simulator:
    2DOF, DC motor, SimAxe, SimforceGT
    Sure, no problem @noorbeast

    I increase the upload limit temporally. Let me know when its done.
    • Like Like x 1
    RaceRay, May 31, 2017
    #30
  11. ferslash

    ferslash Active Member

    Joined:
    Feb 8, 2011
    Messages:
    495
    Balance:
    4,798Coins
    Ratings:
    +181 / 2 / -0
    waiting to download it :D

    @RaceRay
    @noorbeast
    (maybe could be a nice idea to include the simcalc tool among the other download resources of this site)

    - i read everyday this grate site, and just yesterday i knew about simcalc :(

    best regards

    fer
    • Agree Agree x 3
    • Like Like x 1
    Last edited: May 31, 2017
    ferslash, May 31, 2017
    #31
  12. RaceRay

    RaceRay Administrator Staff Member SimAxe Beta Tester

    Joined:
    Nov 8, 2006
    Messages:
    4,656
    Occupation:
    Self-employed | Web and application development
    Location:
    Hamburg, Germany
    Balance:
    23,864Coins
    Ratings:
    +2,010 / 13 / -0
    My Motion Simulator:
    2DOF, DC motor, SimAxe, SimforceGT
    http://take.ms/6OShr@Tim McGuire New home is here: https://www.xsimulator.net/community/marketplace/simcalc.184/

    Unfortunately i also was not able to upload the file from the forum system. Think it executed the max php upload limit and its too much work to overwrite it just for temporary reasons. So i had to upload it manually via FTP. If there are any update i have to upload them manually again. Alternatively if you like to upload it to github or any other "permanent" available source i can link it to there.

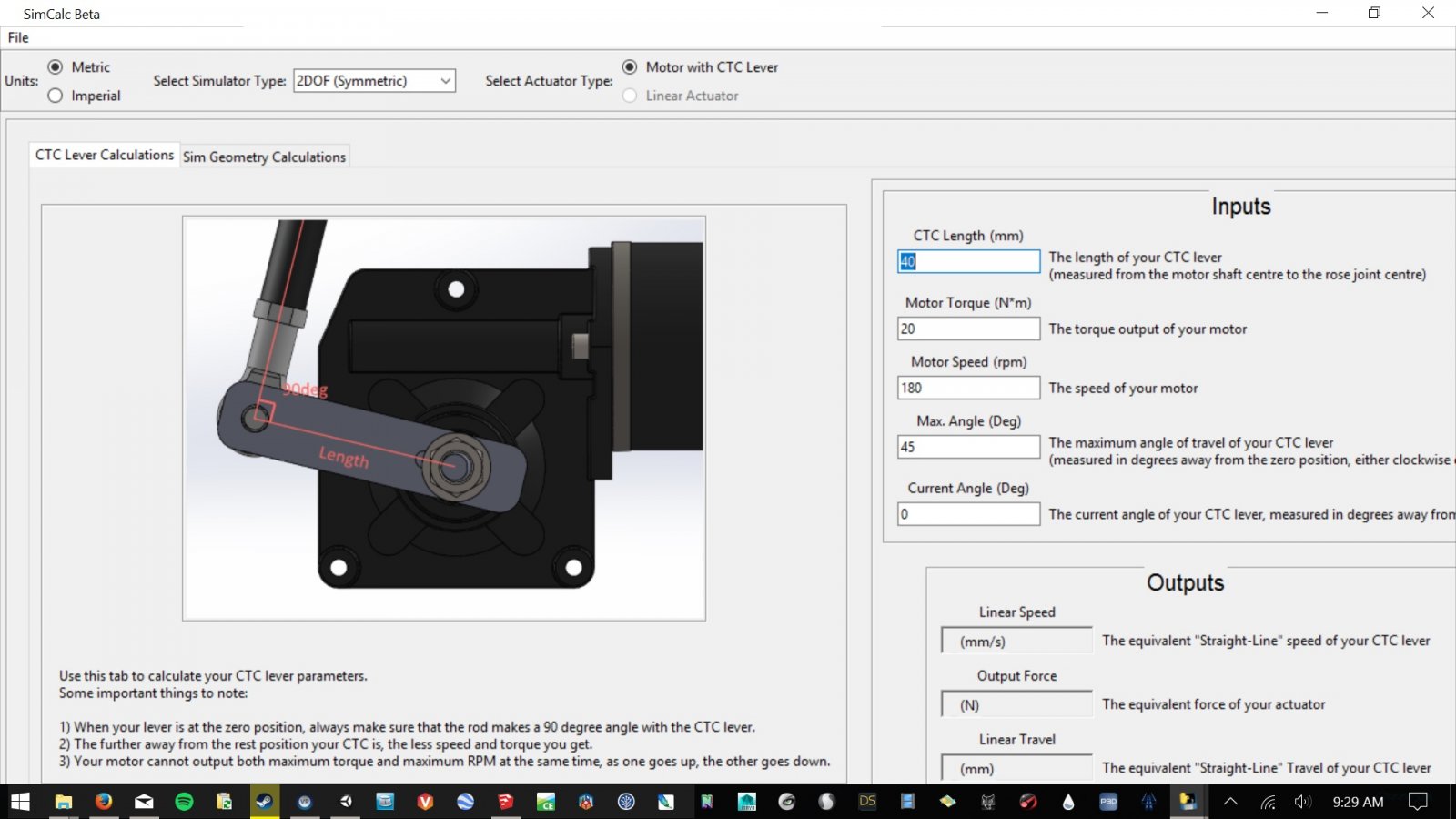

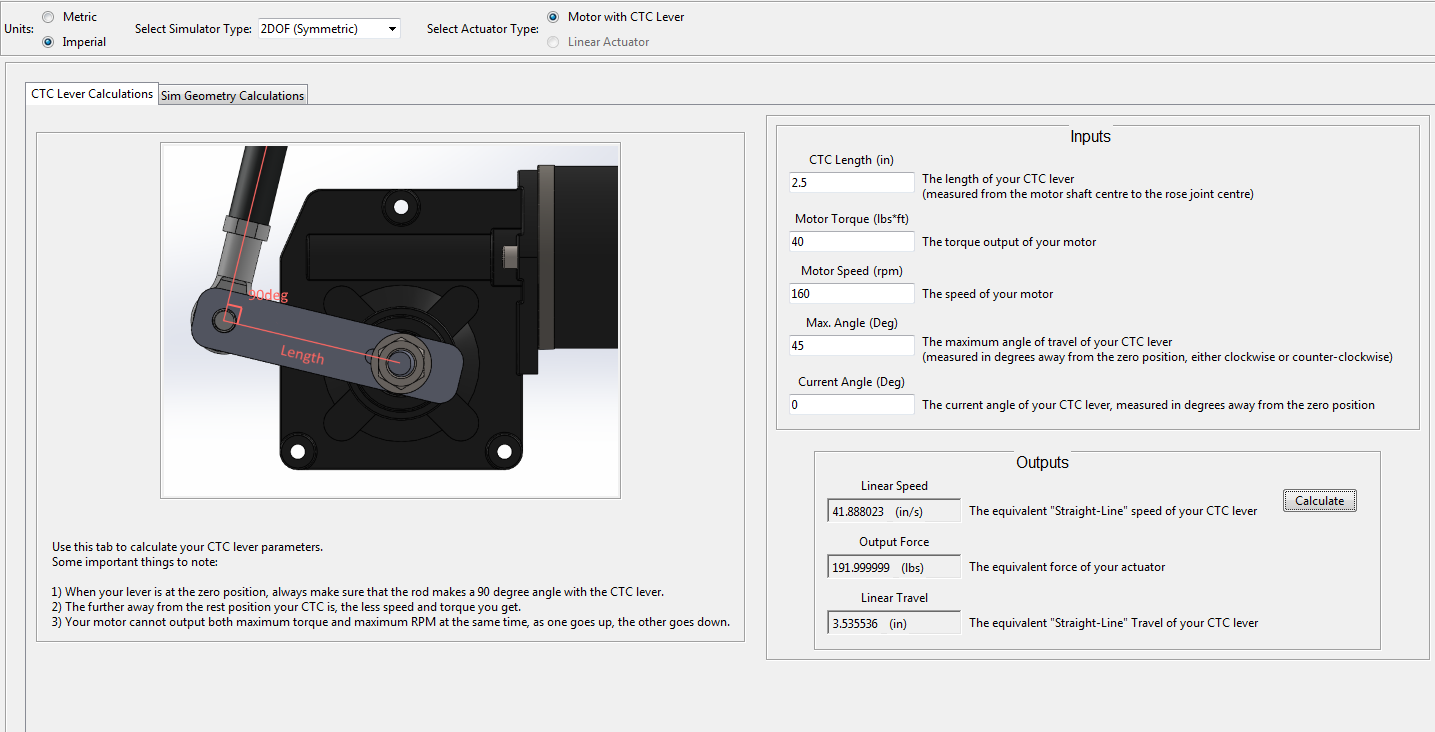

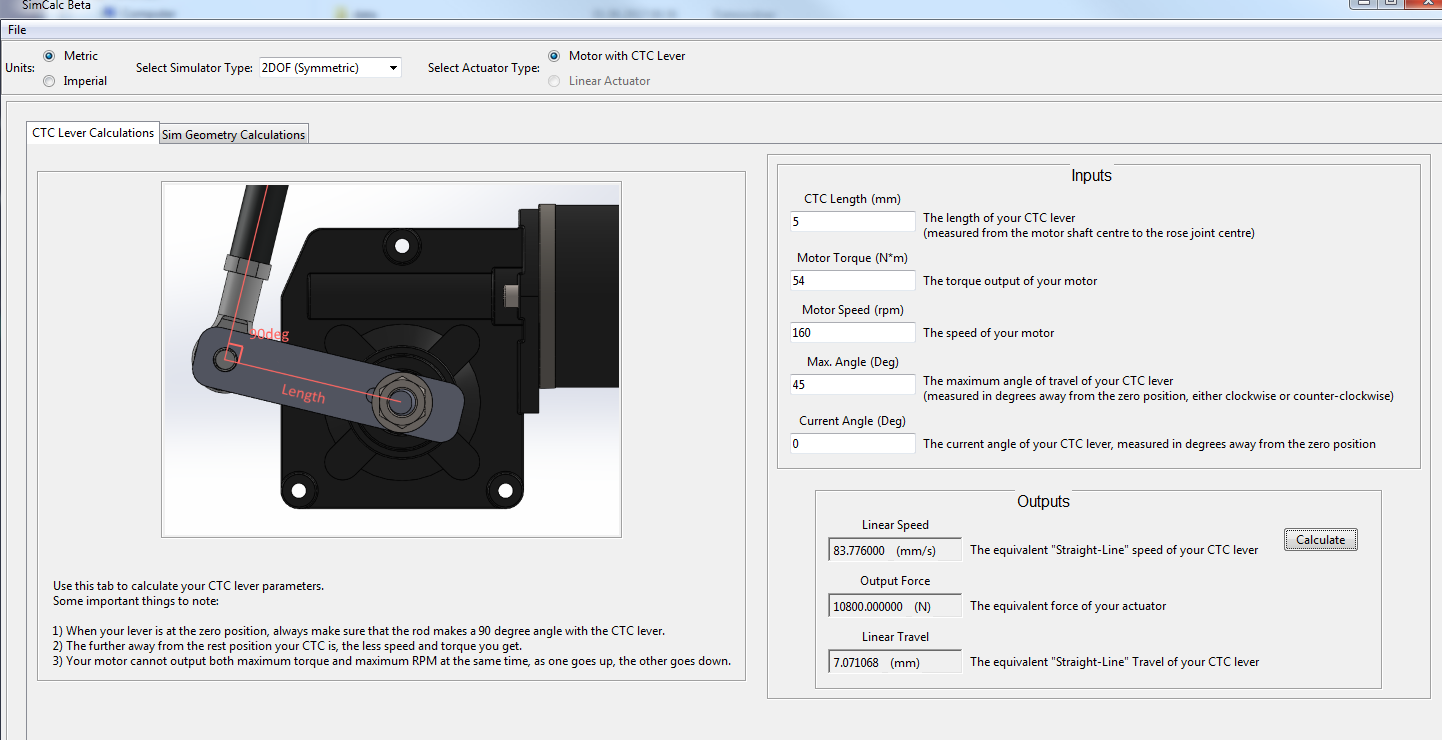

    Btw. I think there is something calculating wrong in metric mode:

    Imperial:


    Metric equivalent

    SimCalc Beta 2017-06-01 09.10.42.png

    The parameters are converted by me into their metric equivalents but the output force and Linear Travel differs totally from the imperial results:

    41 in/sec != 83 mm/s
    191 lbs != 10800 N
    3.5 in = 7 mm

    10800 N are 2427 pound force which is a little bit more;-)
    • Like Like x 2
    • Informative Informative x 1
    RaceRay, Jun 1, 2017
    #32
  13. Zed

    Zed VR Simming w/Reverb Gold Contributor

    Joined:
    Apr 4, 2017
    Messages:
    1,040
    Location:
    USA
    Balance:
    5,841Coins
    Ratings:
    +1,040 / 4 / -0
    My Motion Simulator:
    2DOF, DC motor, JRK
    Hey René, it looks like your CTC length is just 5 mm. Did you mean 50mm or 63mm (about 2.5")?
    Zed, Jun 1, 2017
    #33
  14. RaceRay

    RaceRay Administrator Staff Member SimAxe Beta Tester

    Joined:
    Nov 8, 2006
    Messages:
    4,656
    Occupation:
    Self-employed | Web and application development
    Location:
    Hamburg, Germany
    Balance:
    23,864Coins
    Ratings:
    +2,010 / 13 / -0
    My Motion Simulator:
    2DOF, DC motor, SimAxe, SimforceGT
    @Zed It's just for example. The length of the lever should not affect the correctness of the calculation
    RaceRay, Jun 1, 2017
    #34
  15. Tim McGuire

    Tim McGuire "Forever a work in progress"

    Joined:
    Jul 26, 2015
    Messages:
    261
    Occupation:
    Electrical/Electronics Engineer
    Location:
    Canada
    Balance:
    2,184Coins
    Ratings:
    +314 / 2 / -0
    My Motion Simulator:
    3DOF, DC motor
    First off thanks for uploading! Once my life calms down a bit I'm going to make a github page that you can pull from.

    As for the incorrect results, I think it's just stemming from my kind of clunky implementation of unit conversion. When you change the units, the values don't recalculate themselves, which they probably should, so if you input a calculation in mm, and then it gives you a result, and you switch back to metric, the units will change but the results won't... Good catch, I'll add it to my list of bugs to fix in the next revision!
    • Like Like x 2
    Tim McGuire, Jun 1, 2017
    #35
  16. RaceRay

    RaceRay Administrator Staff Member SimAxe Beta Tester

    Joined:
    Nov 8, 2006
    Messages:
    4,656
    Occupation:
    Self-employed | Web and application development
    Location:
    Hamburg, Germany
    Balance:
    23,864Coins
    Ratings:
    +2,010 / 13 / -0
    My Motion Simulator:
    2DOF, DC motor, SimAxe, SimforceGT
    No rush mate, i really appreciate your very handy tool:)
    • Friendly Friendly x 1
    RaceRay, Jun 2, 2017
    #36
  17. Tim McGuire

    Tim McGuire "Forever a work in progress"

    Joined:
    Jul 26, 2015
    Messages:
    261
    Occupation:
    Electrical/Electronics Engineer
    Location:
    Canada
    Balance:
    2,184Coins
    Ratings:
    +314 / 2 / -0
    My Motion Simulator:
    3DOF, DC motor
    Just be sure to remember that the closer the motor mount is to the pivot, the harder your motors will have to work, so you'll need to use shorter levers to get the same effect. As long as you take all of this into account it should be fine!
    Tim McGuire, Jun 22, 2017
    #37
  18. Tim McGuire

    Tim McGuire "Forever a work in progress"

    Joined:
    Jul 26, 2015
    Messages:
    261
    Occupation:
    Electrical/Electronics Engineer
    Location:
    Canada
    Balance:
    2,184Coins
    Ratings:
    +314 / 2 / -0
    My Motion Simulator:
    3DOF, DC motor
    Hi all, just posting here to let everyone know that I'm not dead, and that I'm still working on the simcalc application. I've been busy over the summer with a large project, but you'll be seeing more of that in a separate thread soon. For those of you that are adventurous/mathematically-inclined, I've taken the liberty of writing an explanation of the mathematics behind the SimCalc application (It's a little lengthy but I plan to use it as a reference sheet for when I eventually get all of the source files on github).

    Attached Files:

    • Like Like x 8
    Tim McGuire, Sep 13, 2017
    #38
  19. Doon1

    Doon1 Member

    Joined:
    Apr 20, 2009
    Messages:
    47
    Balance:
    363Coins
    Ratings:
    +3 / 0 / -0
    Is the program Windows 10 compatible? I cant get it to run. just a blank window opens with a blinking cursor.
    Doon1, Dec 10, 2017
    #39
  20. Tim McGuire

    Tim McGuire "Forever a work in progress"

    Joined:
    Jul 26, 2015
    Messages:
    261
    Occupation:
    Electrical/Electronics Engineer
    Location:
    Canada
    Balance:
    2,184Coins
    Ratings:
    +314 / 2 / -0
    My Motion Simulator:
    3DOF, DC motor
    It should be windows 10 compatible yes, mind uploading a screenshot of what you see?
    Tim McGuire, Dec 10, 2017
    #40
