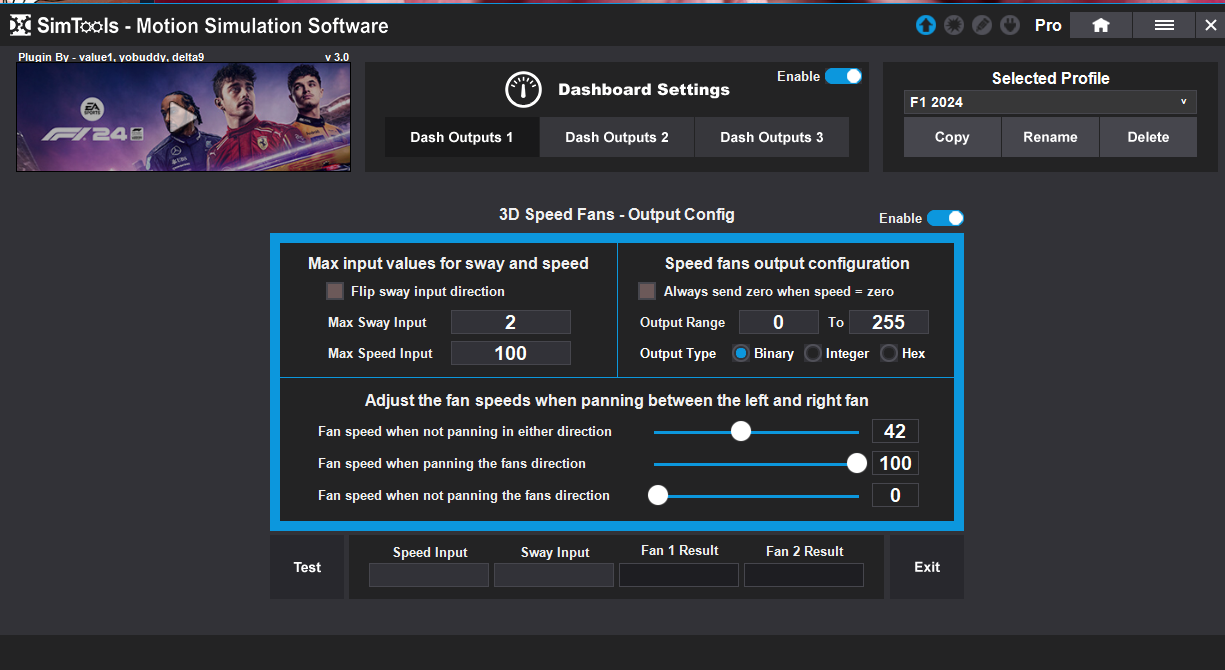

Lesson SimTools v3 - 3D Wind Dash Example (with Arduino Sketch)

Discussion in 'Tutorials and Tips by the Developer' started by yobuddy, Jun 19, 2023.

Page 3 of 3
  1. hansvdm

    hansvdm Member Gold Contributor

    Joined:
    Sep 21, 2023
    Messages:
    57
    Occupation:
    Freelance
    Location:
    leiden Netherlands
    Balance:
    107Coins
    Ratings:
    +10 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino

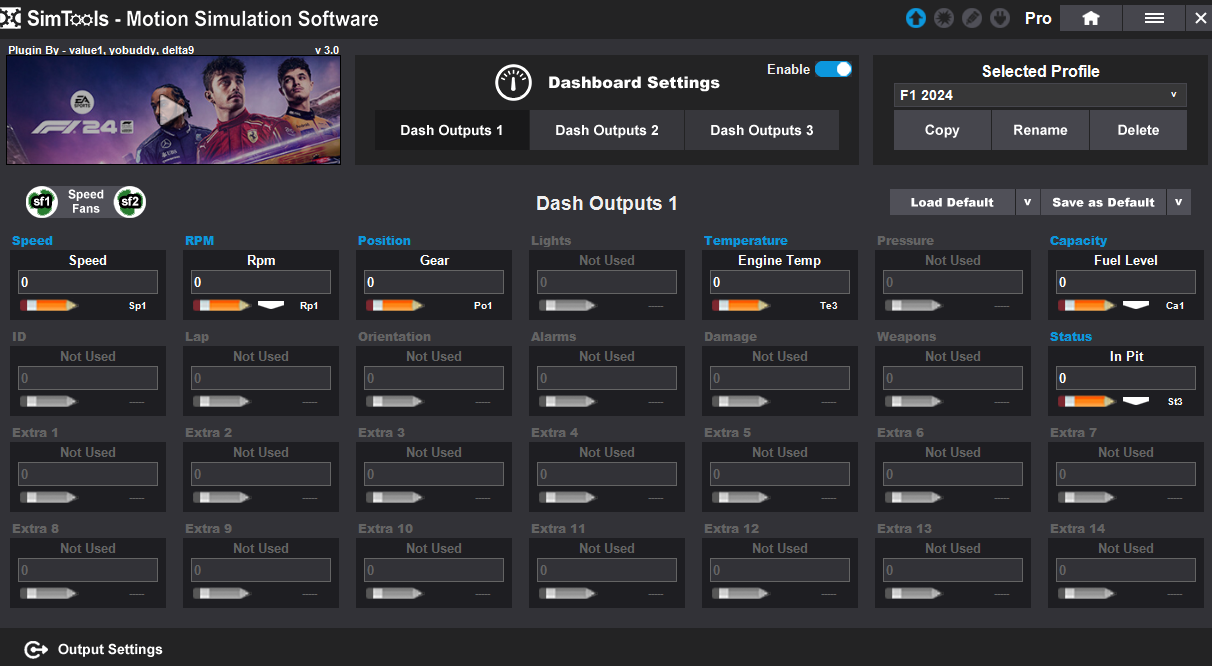

    S<sf1><sf1> was the solution, thanks again
    hansvdm, Nov 22, 2023
    #41
  2. Jonasmb2

    Jonasmb2 New Member

    Joined:
    Jul 10, 2023
    Messages:
    4
    Balance:
    25Coins
    Ratings:
    +1 / 0 / -0
    My Motion Simulator:
    2DOF, Arduino
    I'm trying to use my sim wind in simtools3, but without success, I use a shild L293D engine, just a cooler connected to the M1, any idea how I can get a script that works?
    Jonasmb2, Nov 26, 2023
    #42
  3. yobuddy

    yobuddy Well-Known Member Staff Member Moderator SimAxe Beta Tester SimTools Developer Gold Contributor

    Joined:
    Feb 9, 2007
    Messages:
    5,247
    Occupation:
    Computer Technician
    Location:
    Portland, Oregon - USA
    Balance:
    48,790Coins
    Ratings:
    +5,068 / 17 / -0
    What script did you used to use buddy?
    We can probably find how to drive it in v3 is all.
    yobuddy, Dec 1, 2023
    #43
  4. Jonasmb2

    Jonasmb2 New Member

    Joined:
    Jul 10, 2023
    Messages:
    4
    Balance:
    25Coins
    Ratings:
    +1 / 0 / -0
    My Motion Simulator:
    2DOF, Arduino
    I tried to use the one posted in the discussion, but I saw that the motor shield is different, I would like to know if there is any script for my motor shield for just one cooler connected to M1
    Jonasmb2, Dec 1, 2023
    #44
  5. Howard Yang

    Howard Yang New Member Gold Contributor

    Joined:
    May 5, 2016
    Messages:
    13
    Location:
    West Covina, CA
    Balance:
    - 138Coins
    Ratings:
    +3 / 0 / -0
    My Motion Simulator:
    2DOF, Arduino

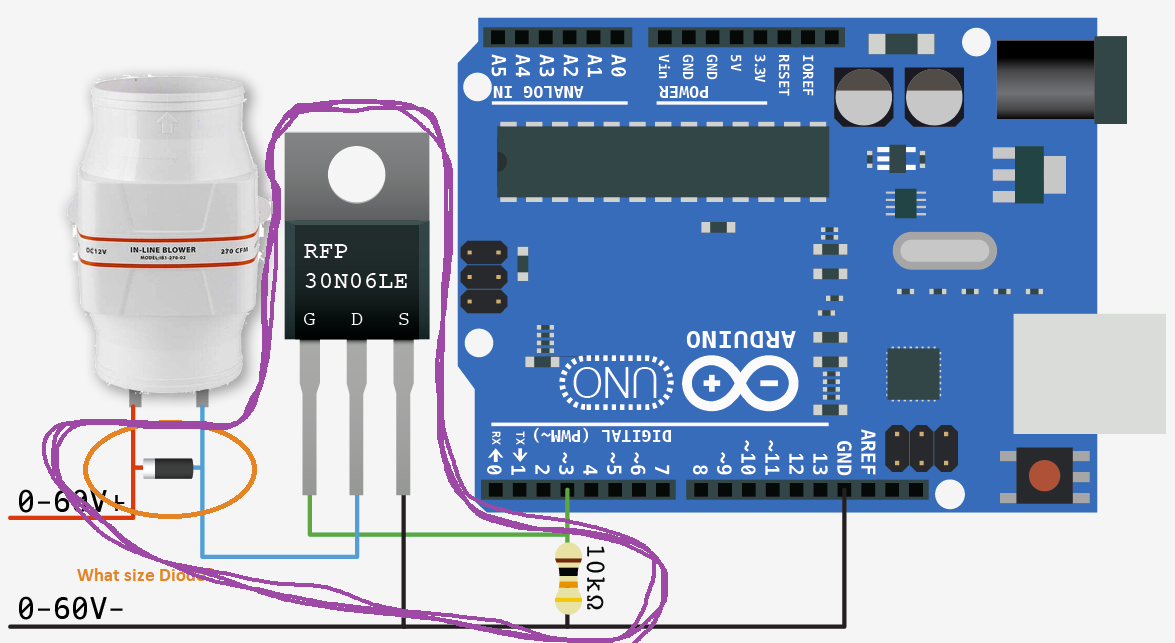

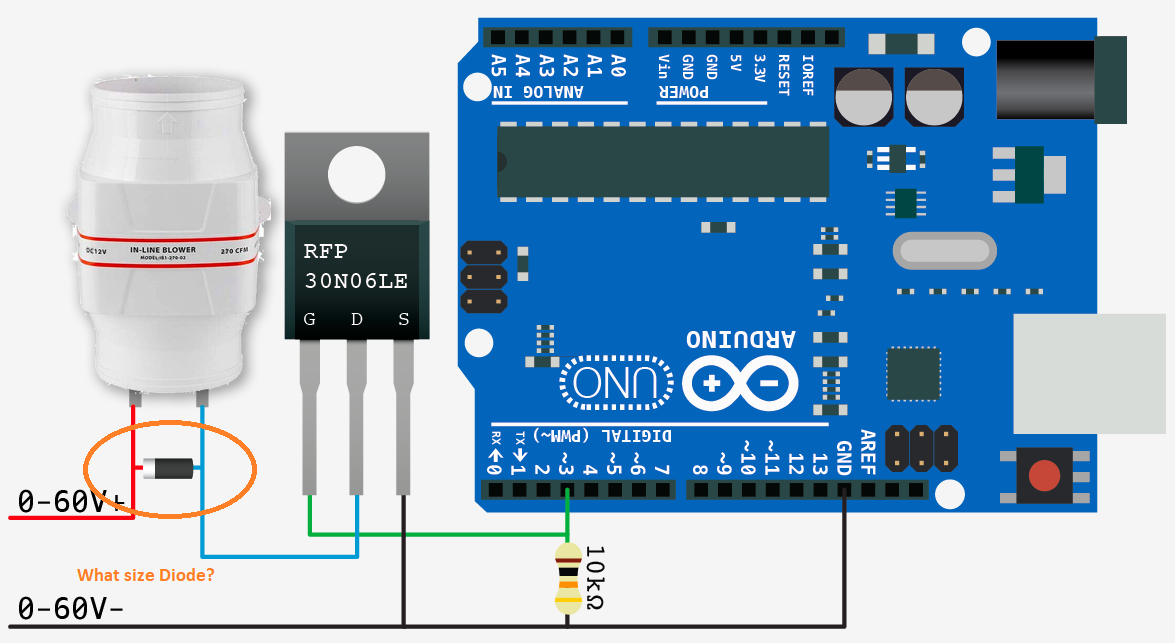

    What size diode do I need to installed in between the motors if running the 12V 6A 270CFM inline Fan? I circled that in Orange

    Attached Files:

    Last edited: Dec 6, 2023
    Howard Yang, Dec 6, 2023
    #45
  6. yobuddy

    yobuddy Well-Known Member Staff Member Moderator SimAxe Beta Tester SimTools Developer Gold Contributor

    Joined:
    Feb 9, 2007
    Messages:
    5,247
    Occupation:
    Computer Technician
    Location:
    Portland, Oregon - USA
    Balance:
    48,790Coins
    Ratings:
    +5,068 / 17 / -0
    Probably depends on the size of fans you want to use, but I can't see a fan outputting that much reverse power when the power goes off.
    Here is a link to the article the pic came from.
    http://adam-meyer.com/arduino/rfp30n06le-arduino
    "We will need a diode fast enough to react to the kickback, and strong enough to take the load. A rectifier diode like the 1N4001 or SB560 should do the job."
    Take care!
    yobuddy, Dec 11, 2023
    #46
  7. Howard Yang

    Howard Yang New Member Gold Contributor

    Joined:
    May 5, 2016
    Messages:
    13
    Location:
    West Covina, CA
    Balance:
    - 138Coins
    Ratings:
    +3 / 0 / -0
    My Motion Simulator:
    2DOF, Arduino
    thank you. And if I use a bigger fan then 2A, say the 6A fan bilge inline fan that you’re using in the video, which motor control board would you recommend and do you happen to have a wiring diagram?
    Howard Yang, Dec 11, 2023
    #47
  8. yobuddy

    yobuddy Well-Known Member Staff Member Moderator SimAxe Beta Tester SimTools Developer Gold Contributor

    Joined:
    Feb 9, 2007
    Messages:
    5,247
    Occupation:
    Computer Technician
    Location:
    Portland, Oregon - USA
    Balance:
    48,790Coins
    Ratings:
    +5,068 / 17 / -0
    You would simply make this circuit two times, one for each fan buddy.
    yobuddy, Dec 11, 2023
    #48
  9. Howard Yang

    Howard Yang New Member Gold Contributor

    Joined:
    May 5, 2016
    Messages:
    13
    Location:
    West Covina, CA
    Balance:
    - 138Coins
    Ratings:
    +3 / 0 / -0
    My Motion Simulator:
    2DOF, Arduino
    Would the fan connect direct to the Arduino board without a motor control board?
    Howard Yang, Dec 11, 2023
    #49
  10. yobuddy

    yobuddy Well-Known Member Staff Member Moderator SimAxe Beta Tester SimTools Developer Gold Contributor

    Joined:
    Feb 9, 2007
    Messages:
    5,247
    Occupation:
    Computer Technician
    Location:
    Portland, Oregon - USA
    Balance:
    48,790Coins
    Ratings:
    +5,068 / 17 / -0
    The circuit is your 'motor control board' if you will.
    yobuddy, Dec 11, 2023
    #50
