Tutorial SMC3 Arduino 3DOF Motor Driver and Windows Utilities

Discussion in 'SimTools compatible interfaces' started by RufusDufus, Dec 1, 2013.

Page 62 of 131
  1. ne02005

    ne02005 Member

    Joined:
    Sep 19, 2009
    Messages:
    124
    Location:
    Argentina
    Balance:
    105Coins
    Ratings:
    +29 / 1 / -0
    My Motion Simulator:
    3DOF
    Anybody can explain me how to setup the maximum and minimum movement of the wiper motor? I`m testing with the SMC3 Windows Utilities.
    I want to reach to 180º but on SMC3 Windows Utilities only goes at 150º aprox.
    ne02005, Feb 15, 2017
    #1221
  2. Pit

    Pit - - - - - - - - - - - - - - - - Gold Contributor

    Joined:
    Oct 2, 2013
    Messages:
    3,012
    Location:
    Switzerland
    Balance:
    30,451Coins
    Ratings:
    +3,091 / 31 / -0
    My Motion Simulator:
    DC motor, Arduino, 6DOF
    Please check your potentiometer range
    PS: also upload your SMC3 settings plus video of the motors in action
    • Like Like x 2
    Pit, Feb 15, 2017
    #1222
  3. ne02005

    ne02005 Member

    Joined:
    Sep 19, 2009
    Messages:
    124
    Location:
    Argentina
    Balance:
    105Coins
    Ratings:
    +29 / 1 / -0
    My Motion Simulator:
    3DOF
    Thanks I`ll do.
    I`m using very nice hall effect sensors 90º effect but I got a gears to go till 180º.
    ne02005, Feb 15, 2017
    #1223
  4. Pit

    Pit - - - - - - - - - - - - - - - - Gold Contributor

    Joined:
    Oct 2, 2013
    Messages:
    3,012
    Location:
    Switzerland
    Balance:
    30,451Coins
    Ratings:
    +3,091 / 31 / -0
    My Motion Simulator:
    DC motor, Arduino, 6DOF
    You will hardly get the 180° if using geared "180°" hall sensors....
    Pit, Feb 15, 2017
    #1224
  5. ne02005

    ne02005 Member

    Joined:
    Sep 19, 2009
    Messages:
    124
    Location:
    Argentina
    Balance:
    105Coins
    Ratings:
    +29 / 1 / -0
    My Motion Simulator:
    3DOF
    Last edited: Feb 15, 2017
    ne02005, Feb 15, 2017
    #1225
  6. speedy

    speedy Well-Known Member

    Joined:
    Feb 1, 2012
    Messages:
    1,193
    Location:
    Alexandria , Egypt
    Balance:
    7,933Coins
    Ratings:
    +1,287 / 10 / -0
    My Motion Simulator:
    3DOF, AC motor, Arduino, Motion platform
    • Like Like x 1
    speedy, Feb 15, 2017
    #1226
  7. George Dobransky

    George Dobransky Active Member

    Joined:
    Sep 29, 2016
    Messages:
    222
    Location:
    Hungary
    Balance:
    - 13Coins
    Ratings:
    +130 / 4 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 6DOF
    Hi there, my current simtools 2.0 interface setting is as follows:

    [A<Axis1a>][B<Axis2a>][C<Axis3a>]

    What should I change in the line, if i want to use the b axis assignments also (I need more than 6 DOF, 'coz I have 3 extra at the b axes)?

    Thanx for help,
    George, Hungary
    George Dobransky, Feb 15, 2017
    #1227
  8. anatolie

    anatolie New Member

    Joined:
    Aug 7, 2015
    Messages:
    18
    Location:
    SPAIN
    Balance:
    118Coins
    Ratings:
    +1 / 1 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino

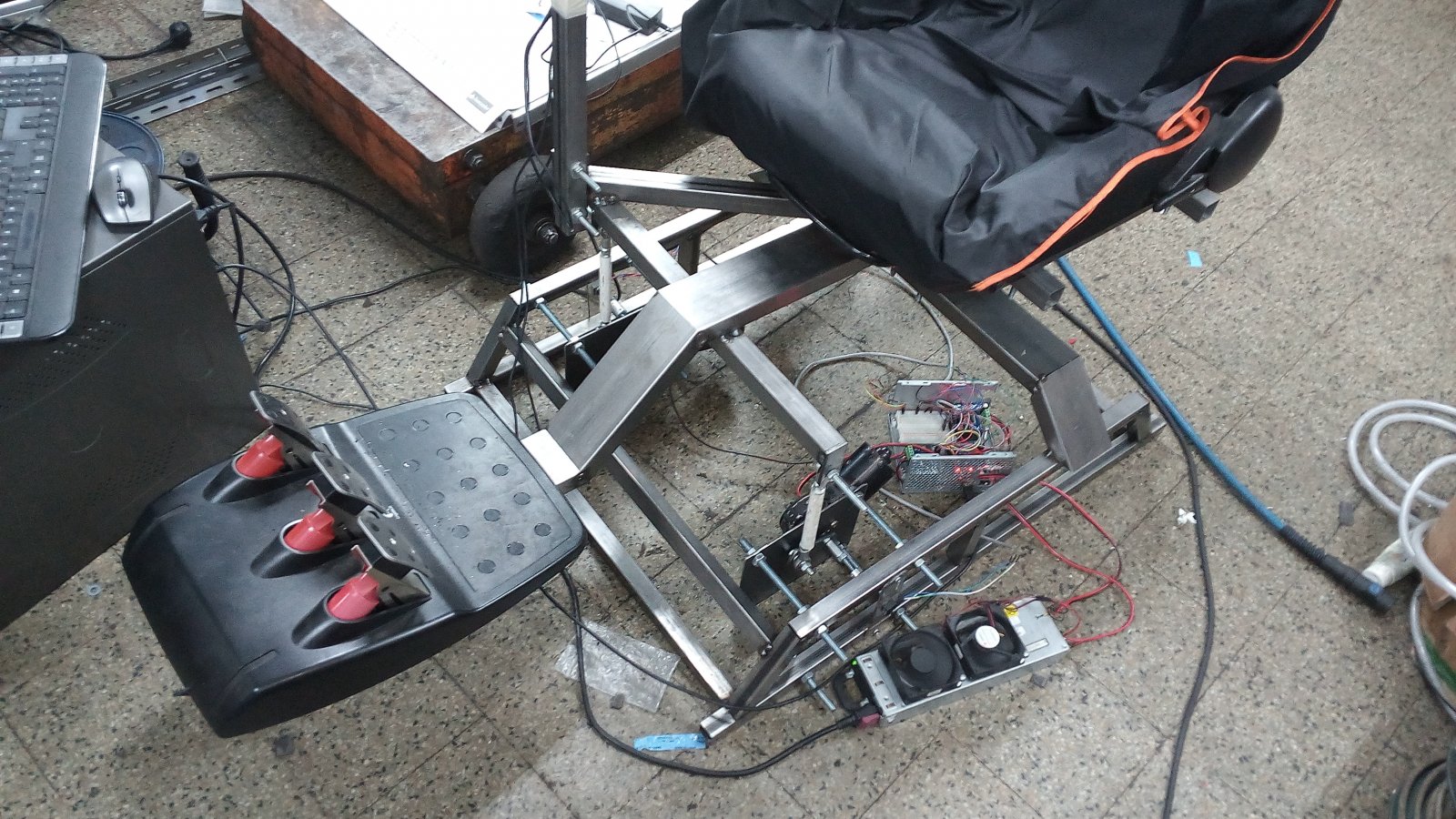

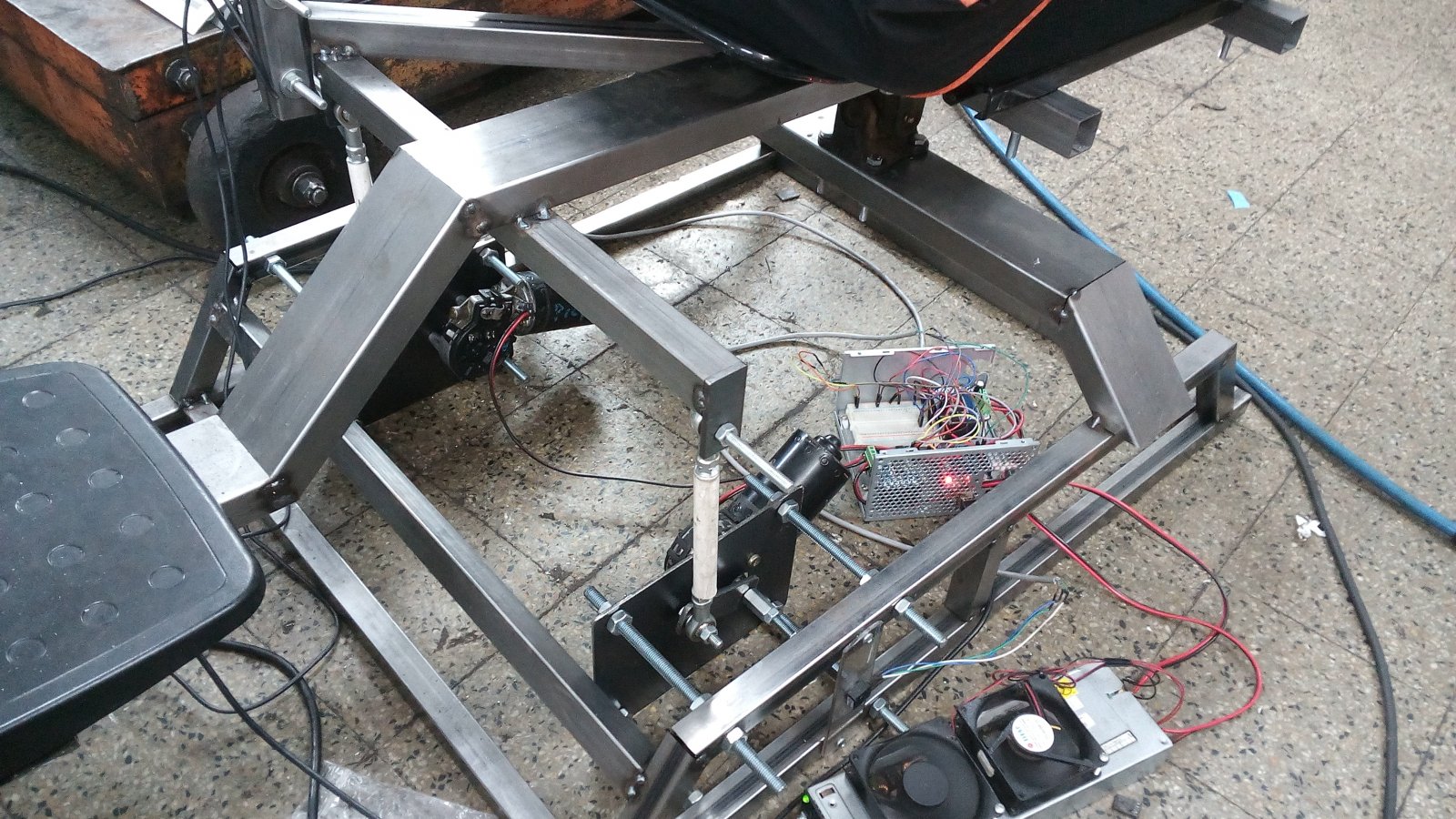

    Hello my simulator project is almost finished updating the motor axes for sim tools 1.3 with life for speed the motors moves with jerks how to solve IMG_20170215_204318.jpg IMG_20170215_204335.jpg
    anatolie, Feb 16, 2017
    #1228
  9. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    21,142
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    148,547Coins
    Ratings:
    +10,902 / 54 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    Can you please post pictures of all your settings and if possible a video showing the problem, that way members are in a position to give advice.
    • Like Like x 1
    • Agree Agree x 1
    noorbeast, Feb 16, 2017
    #1229
  10. speedy

    speedy Well-Known Member

    Joined:
    Feb 1, 2012
    Messages:
    1,193
    Location:
    Alexandria , Egypt
    Balance:
    7,933Coins
    Ratings:
    +1,287 / 10 / -0
    My Motion Simulator:
    3DOF, AC motor, Arduino, Motion platform
    Open the SMC3 util. and lower the PWM value untill you maintain a balance between the smooth start/stop and the motors going fast enough "read the first post again" .
    speedy, Feb 16, 2017
    #1230
  11. anatolie

    anatolie New Member

    Joined:
    Aug 7, 2015
    Messages:
    18
    Location:
    SPAIN
    Balance:
    118Coins
    Ratings:
    +1 / 1 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    How to configure the live for speed i axes of the tuning center
    Thanks how to configure the axes for game Richard Burns Rally and tuning center
    How to load the game into sim tools
    Last edited by a moderator: Feb 16, 2017
    anatolie, Feb 16, 2017
    #1231
  12. speedy

    speedy Well-Known Member

    Joined:
    Feb 1, 2012
    Messages:
    1,193
    Location:
    Alexandria , Egypt
    Balance:
    7,933Coins
    Ratings:
    +1,287 / 10 / -0
    My Motion Simulator:
    3DOF, AC motor, Arduino, Motion platform
    speedy, Feb 16, 2017
    #1232
  13. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    21,142
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    148,547Coins
    Ratings:
    +10,902 / 54 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK

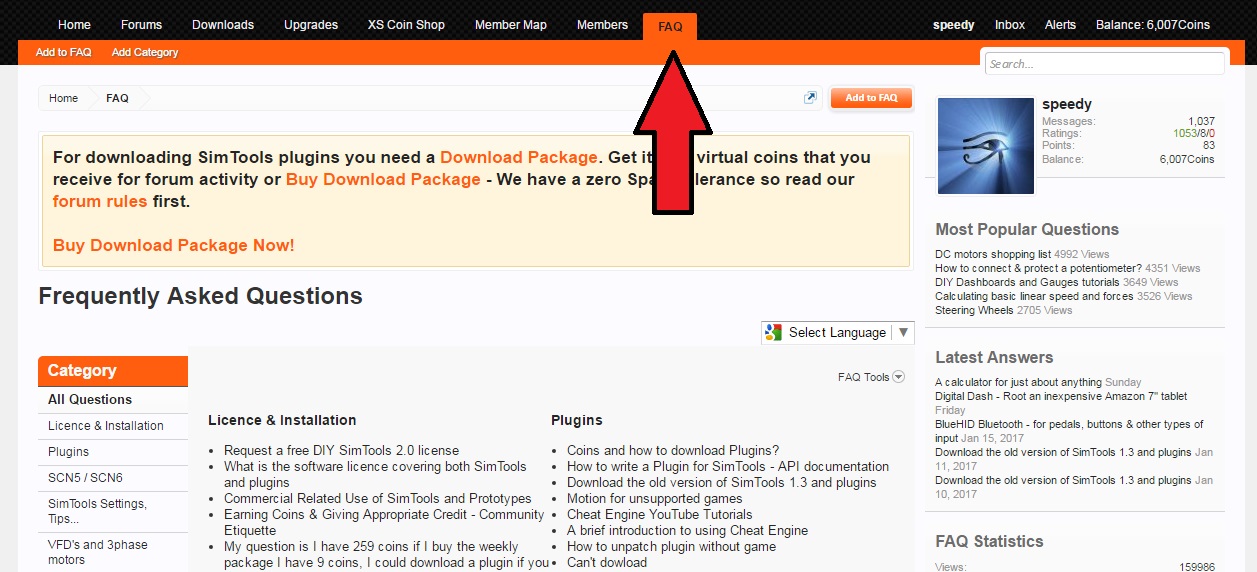

    Here is the Tuning Center outline information: https://www.xsimulator.net/community/faq/tuning-centre-and-axis-settings.240/

    Here is the existing SimTools documentation: https://www.xsimulator.net/community/faq/rtfm-start-with-the-official-simtools-documentation.117/

    There is a slight change to the Interface Settings for SimTools 2: https://www.xsimulator.net/community/faq/request-a-free-diy-simtools-2-0-license.262/

    This is the convention for which way axist should move: https://www.xsimulator.net/community/faq/which-way-to-set-simtool-axis-movements.230/

    And here are the steps to apply all that in making and refining motion profiles: https://www.xsimulator.net/community/faq/steps-to-create-a-motion-profile.228/
    • Informative Informative x 1
    noorbeast, Feb 16, 2017
    #1233
  14. Pit

    Pit - - - - - - - - - - - - - - - - Gold Contributor

    Joined:
    Oct 2, 2013
    Messages:
    3,012
    Location:
    Switzerland
    Balance:
    30,451Coins
    Ratings:
    +3,091 / 31 / -0
    My Motion Simulator:
    DC motor, Arduino, 6DOF
    [A<Axis1b>][B<Axis2b>][C<Axis3b>]
    • Agree Agree x 2
    Pit, Feb 16, 2017
    #1234
  15. George Dobransky

    George Dobransky Active Member

    Joined:
    Sep 29, 2016
    Messages:
    222
    Location:
    Hungary
    Balance:
    - 13Coins
    Ratings:
    +130 / 4 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 6DOF
    Thanx for answer.

    I mean I want to use both a and b axes at the same time. 'coz I need more than 6 DOF with
    the same interface.
    Is that possible? If it is, what my interface command-line should looks like?

    Cheers,
    George
    George Dobransky, Feb 16, 2017
    #1235
  16. speedy

    speedy Well-Known Member

    Joined:
    Feb 1, 2012
    Messages:
    1,193
    Location:
    Alexandria , Egypt
    Balance:
    7,933Coins
    Ratings:
    +1,287 / 10 / -0
    My Motion Simulator:
    3DOF, AC motor, Arduino, Motion platform
    :grin:grin:grin:grin:grin:grin:grin:grin:grin:grin:grin:grin ....

    IQ is going Down ...

    • Funny Funny x 2
    speedy, Feb 16, 2017
    #1236
  17. George Dobransky

    George Dobransky Active Member

    Joined:
    Sep 29, 2016
    Messages:
    222
    Location:
    Hungary
    Balance:
    - 13Coins
    Ratings:
    +130 / 4 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 6DOF
    George Dobransky, Feb 16, 2017
    #1237
  18. Pit

    Pit - - - - - - - - - - - - - - - - Gold Contributor

    Joined:
    Oct 2, 2013
    Messages:
    3,012
    Location:
    Switzerland
    Balance:
    30,451Coins
    Ratings:
    +3,091 / 31 / -0
    My Motion Simulator:
    DC motor, Arduino, 6DOF
    one interfacae = a OR b
    Pit, Feb 16, 2017
    #1238
  19. George Dobransky

    George Dobransky Active Member

    Joined:
    Sep 29, 2016
    Messages:
    222
    Location:
    Hungary
    Balance:
    - 13Coins
    Ratings:
    +130 / 4 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 6DOF
    Ok, tHX.

    Cheers,
    George
    George Dobransky, Feb 17, 2017
    #1239
  20. speedy

    speedy Well-Known Member

    Joined:
    Feb 1, 2012
    Messages:
    1,193
    Location:
    Alexandria , Egypt
    Balance:
    7,933Coins
    Ratings:
    +1,287 / 10 / -0
    My Motion Simulator:
    3DOF, AC motor, Arduino, Motion platform
    speedy, Feb 17, 2017
    #1240
